The Bosch Rexroth Indramat MHD112A-024-PP0-RN is a servo motor from the MHD Synchronous Motors series featuring a digital servo feedback encoder with absolute position detection for more than 4096 revolutions. This motor has a continuous torque at standstill of 15.0 Nm, features liquid cooling, an IP65 protection rating, and a 192 mm flange size. It is built with insulation class F and operates efficiently in ambient temperatures from 0 to 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

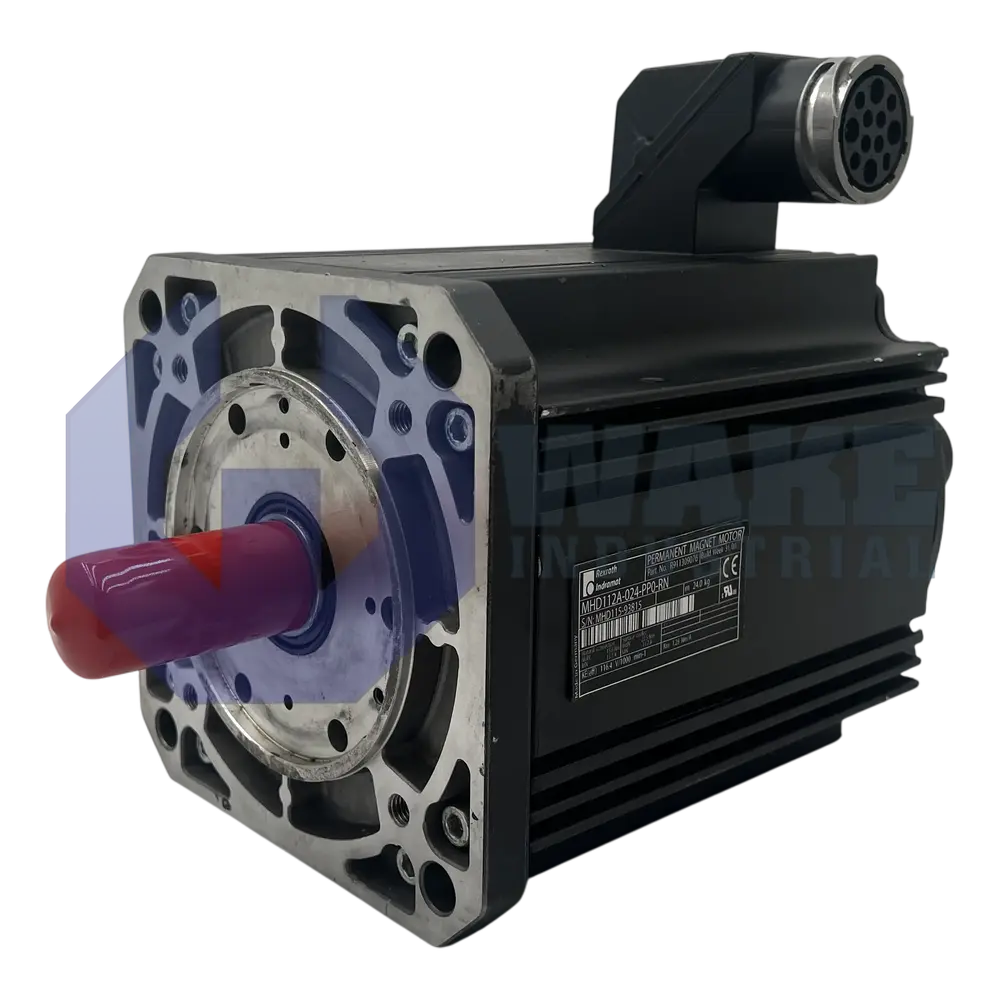

The MHD112A-024-PP0-RN is a servo motor manufactured by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It supplies regulated torque and speed to automated axes that rely on absolute position feedback over 4096 revolutions for repeatable motion. Integrated optical measurement supports high-resolution tracking, while a power connector on the right side simplifies cable routing. The motor uses winding code 024 with the compact A length in size class 112, giving a medium-duty package without changing the mounting geometry. This combination suits positioning and speed-control duties in automated handling and similar machinery.
The unit can deliver a continuous standstill torque of 15.0 Nm, and that output is supported by liquid cooling in the stator jacket. Housing protection is rated at IP65, so dust and low-pressure water jets do not enter the interior when coolant hoses are installed. A centering shoulder of 130 mm aligns the 192 mm flange accurately against machine frames to reduce runout during assembly. Rotor position is monitored by digital servo feedback with an integrated encoder, allowing rapid closed-loop corrections from the connected drive controller. The sealed power connector and shaft seal help the motor operate reliably in enclosed machine installations.
An insulation system classified as Class F tolerates winding temperatures associated with dynamic duty cycles within an operating ambient range of 0 to 40 °C. The motor uses a keyed shaft for positive mechanical coupling to pulleys or couplings while maintaining a system accuracy of ±0.5 angular minutes. The motor is supplied without a holding brake, so an external locking device is required when power is removed. Installation is permitted up to 1000 m above mean sea level, and storage is allowed from –20 °C to +80 °C.
Frequently Asked Questions about MHD112A-024-PP0-RN:
Q: What type of cooling system does the MHD112A-024-PP0-RN synchronous motor use?
A: The MHD112A-024-PP0-RN motor features liquid cooling, promoting stable operation by efficiently dissipating heat.
Q: What is the protection rating of the MHD112A-024-PP0-RN motor?
A: This motor has a degree of protection rated at IP65, which shields it from dust and low-pressure water jets.
Q: How much continuous torque does the MHD112A-024-PP0-RN provide at standstill?
A: The MHD112A-024-PP0-RN delivers a continuous standstill torque of 15.0 Nm for powerful and steady performance.
Q: What shaft configuration and sealing does the MHD112A-024-PP0-RN feature?
A: The shaft of this motor is designed with a key and comes with a shaft seal for improved mechanical connection and leak protection.
Q: What kind of position feedback does the MHD112A-024-PP0-RN motor utilize?
A: A digital servo feedback with an integrated encoder provides absolute position detection over more than 4096 revolutions.
