MHD112A-024-PP0-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911297523
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
57 Seconds

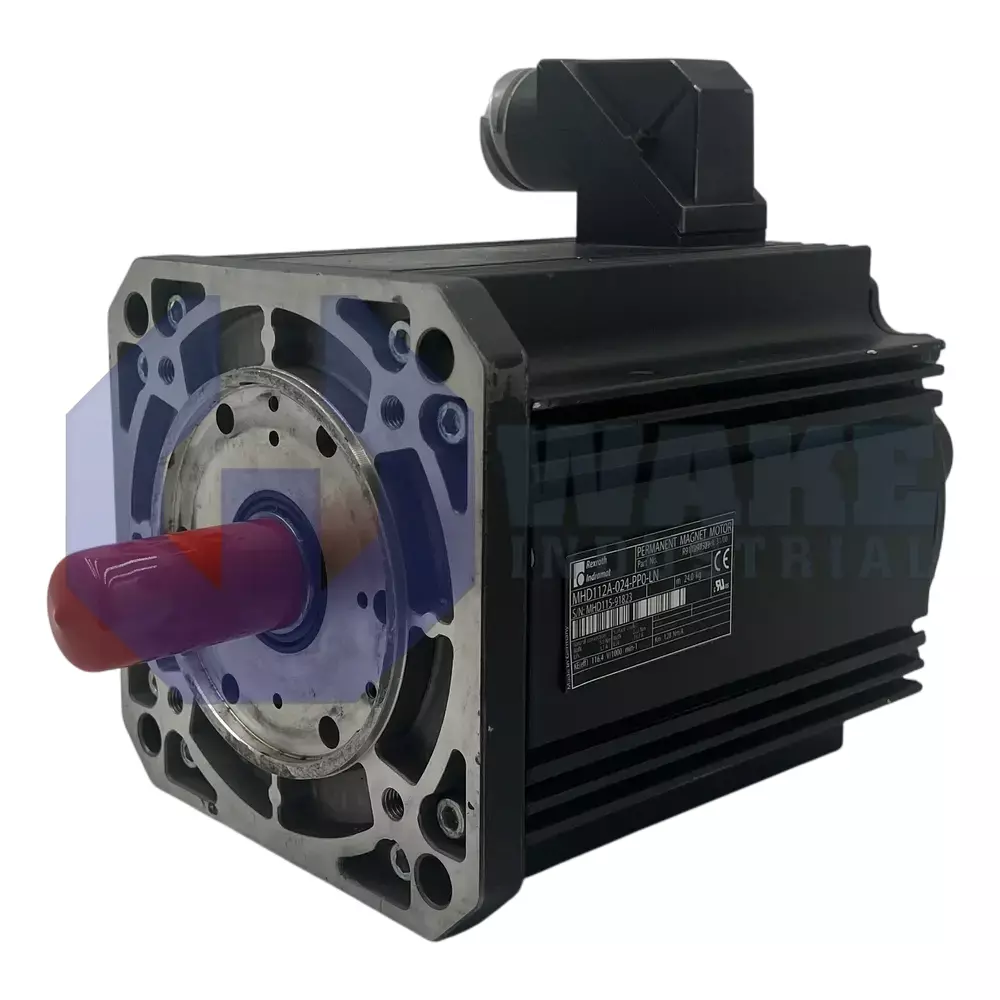

The Bosch Rexroth Indramat MHD112A-024-PP0-LN is a servo motor from the MHD Synchronous Motors series, featuring a keyed shaft with a centering diameter of 130 mm and a flange size of 192 mm. It offers a continuous torque at standstill of 15.0 Nm, a liquid cooling housing, and has an IP65 degree of protection. The motor is equipped with a digital servo feedback encoder for absolute position detection and operates within an ambient temperature range of 0 to 40 °C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112A-024-PP0-LN is a servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. Designed for integration into CNC machines, packaging lines, and other automated axes, the unit converts commanded drive current into precise rotary motion needed for positioning and velocity control. It uses a keyed shaft and a power connector on the left side to simplify mechanical coupling and cabling inside compact control cabinets. The A-length housing and 112 frame size provide a moderate footprint for medium-load applications.
Its continuous stall capability reaches 15.0 Nm, allowing closed-loop drives to hold or slowly index loads without overheating. Protection level IP65 seals the stator against dust ingress and water jets, so the motor can be mounted directly on process equipment. Position feedback is delivered through digital servo feedback integrated behind the rotor, which reduces external feedback wiring. Heat from the windings is removed by liquid cooling, which supports higher RMS current than air-cooled housings of comparable size. Accurate concentric mounting is supported by a 130 mm centering diameter, and a 192 mm flange aligns with standard drive-end brackets. The motor is supplied without a holding brake, and F-class insulation limits winding temperature to 155 °C.
The mechanical interface includes a shaft seal that blocks coolant splashes from the bearing cavity. The stator windings remain thermally stable in ambient temperatures from 0 to 40 °C, while storage is permissible from -20 °C to 80 °C. System feedback resolution supports ± 0.5 angular minutes of composite accuracy, and the encoder tracks absolute position over more than 4096 revolutions. Optical scanning is used for the measurement. Operation is permitted up to 1000 m above mean sea level, and winding code 024 matches the electrical characteristics used by compatible Indramat drives.
Frequently Asked Questions about MHD112A-024-PP0-LN:
Q: What type of cooling does the MHD112A-024-PP0-LN motor use?
A: The MHD112A-024-PP0-LN motor features liquid cooling for enhanced heat dissipation during operation.
Q: Does the MHD112A-024-PP0-LN servo motor include a holding brake?
A: This model is manufactured without a holding brake.
Q: What type of position detection does the MHD112A-024-PP0-LN support?
A: The MHD112A-024-PP0-LN provides absolute position detection for more than 4096 revolutions.
Q: What is the continuous torque at standstill for the MHD112A-024-PP0-LN?
A: This motor achieves a continuous torque of 15.0 Nm at standstill.
Q: What level of environmental protection does the MHD112A-024-PP0-LN motor have?
A: The degree of protection is rated IP65, making it highly resistant to dust and water ingress.
