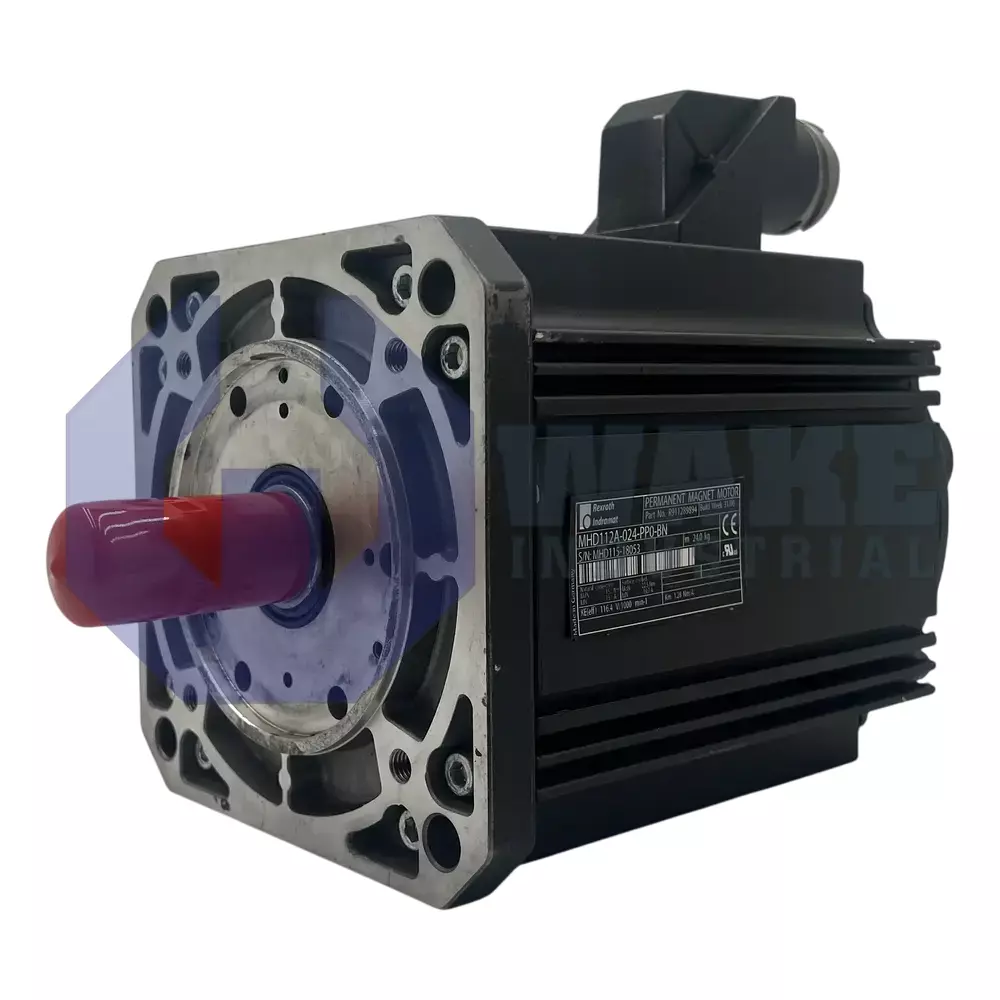

MHD112A-024-PP0-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911289894
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
47 Seconds
The Bosch Rexroth Indramat MHD112A-024-PP0-BN is part of the MHD Synchronous Motors series and features liquid cooling along with a flange size of 192 mm and centering diameter of 130 mm. This servo motor delivers 15.0 Nm continuous torque at standstill, uses a keyed shaft with seal, and is equipped with a digital servo feedback encoder with absolute position detection. The motor does not include a holding brake and has its power connection on side B via an output connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112A-024-PP0-BN is a synchronous servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. Intended for industrial automation, the unit couples to a drive controller to generate tightly regulated torque and speed, enabling accurate motion in packaging lines, material-handling stages, and general positioning axes. Its electromechanical profile matches systems that demand high cycle repetition and dependable thermal stability. It is commonly paired with servo-controlled axes that must start, stop, and reverse direction without losing positional accuracy.
The motor sustains a continuous standstill torque of 15.0 Nm, allowing it to resist load forces without losing position during dwell periods. Heat created at this load is removed by the integrated liquid cooling jacket, so winding temperature stays within limits during extended duty cycles. A square mounting interface with a 192 mm flange permits direct attachment to gear reducers or machine frames, while the 130 mm centering diameter helps keep the shaft concentric with the driven element. The flange and centering shoulder help the housing seat accurately against the machine face, which reduces coupling misalignment. Position data are supplied through digital servo feedback from an integrated encoder, giving the drive immediate commutation and velocity information for closed-loop regulation.
Electrical power enters the stator through a connector routed on side B, simplifying cable routing when the motor is aligned parallel to guide rails. The chosen interface is an output connector that locks against vibration and supports secure cable attachment. Rotor angle is reported through absolute feedback over more than 4096 revolutions, so homing routines are unnecessary after power loss. Multi-turn position data also helps the control system recover axis position after an interruption. Winding design 024 matches the unit to compatible medium-voltage drives. A shaft seal helps prevent lubricant migration into the bearings, and the housing is supplied without a holding brake, so external mechanical restraint must be provided when static load retention is required.
Frequently Asked Questions about MHD112A-024-PP0-BN:
Q: What type of cooling method is used for the MHD112A-024-PP0-BN servo motor?
A: The MHD112A-024-PP0-BN servo motor features liquid cooling for effective heat dissipation during continuous operation.
Q: What is the continuous torque at standstill for the MHD112A-024-PP0-BN motor?
A: This model delivers a continuous standstill torque of 15.0 Nm, providing strong holding power for demanding applications.
Q: What type of encoder does the MHD112A-024-PP0-BN servo motor use?
A: A digital servo feedback system with an integrated encoder is used in the MHD112A-024-PP0-BN for precise position detection.
Q: Does the MHD112A-024-PP0-BN motor include a holding brake?
A: The MHD112A-024-PP0-BN comes without a holding brake, so external braking solutions may be needed if required.
Q: What shaft features does the MHD112A-024-PP0-BN include?
A: A keyed shaft with a shaft seal is included on this motor, helping to ensure secure coupling and contamination resistance.
