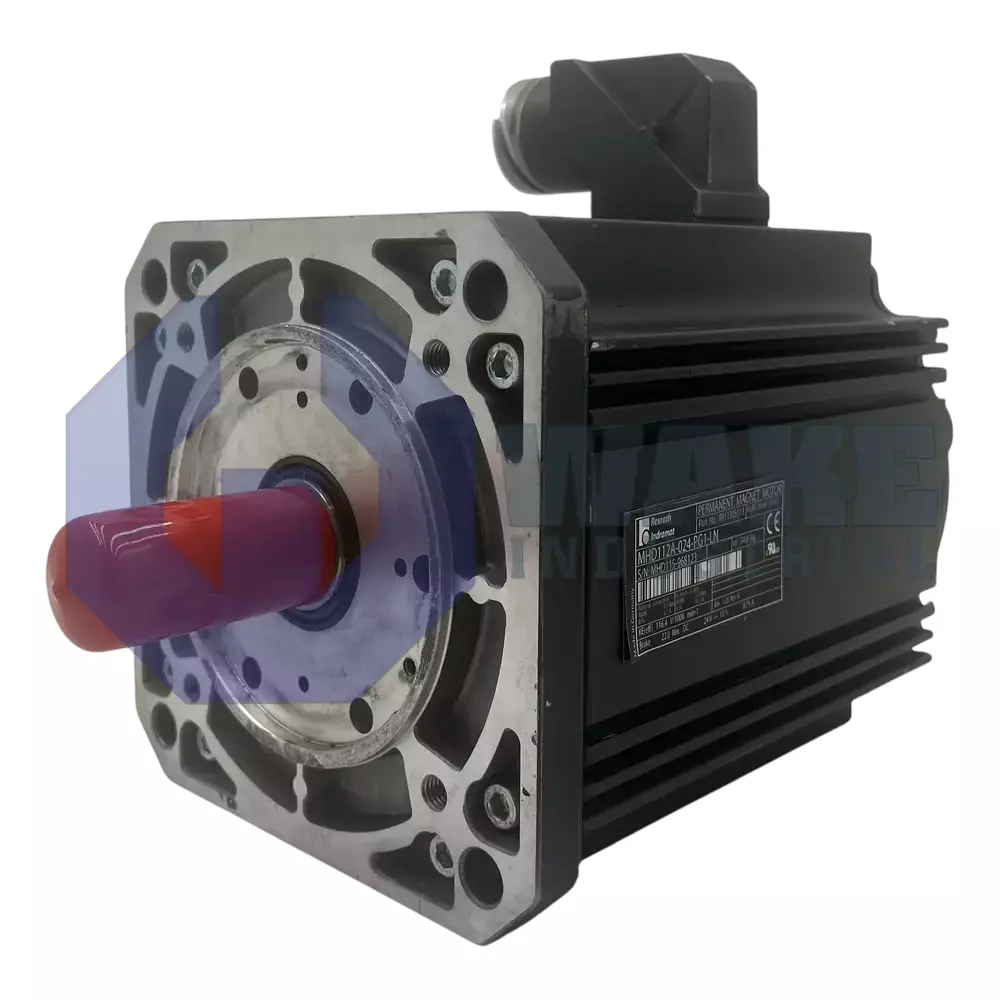

MHD112A-024-PG1-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911305113
The Bosch Rexroth Indramat MHD112A-024-PG1-LN is a servo motor from the MHD Synchronous Motors series featuring a flange size of 192 mm and a centering diameter of 130 mm. It is equipped with digital servo feedback with an integrated encoder and offers liquid cooling with IP65 protection. The motor provides 15.0 Nm of continuous torque at standstill, a holding brake with 22.0 Nm of torque, and uses a plain shaft with a shaft seal.
Internal Product Review
The MHD112A-024-PG1-LN is a servo motor from Bosch Rexroth Indramat’s MHD Synchronous Motors series, offering a very capable platform for precision axis control. Liquid cooling and IP65 protection make the design especially appealing for demanding installations where thermal stability and enclosure integrity matter. Digital servo feedback with integrated encoder and absolute position detection beyond 4096 revolutions stand out as strong assets for accurate, dependable motion performance.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112A-024-PG1-LN belongs to the MHD Synchronous Motors series engineered by Bosch Rexroth Indramat. It is a servo motor intended for precision position and velocity control in automated machinery. By integrating an absolute encoder that tracks more than 4096 revolutions and digital servo feedback, the unit supplies real-time rotor data to the drive controller. This motor has a plain shaft, making it suitable for closed-loop axes where repeatable motion accuracy is essential.
The motor delivers a continuous standstill torque of 15.0 Nm, so it can hold a load without overheating when stationary. Heat generated in the stator is extracted through liquid cooling, allowing full-rated output in compact installations. Mechanical alignment to gearboxes or machine frames is simplified by the 130 mm centering diameter and a square flange that measures 192 mm across. The housing carries an ingress rating of IP65, blocking dust and water jets during washdown or particulate-rich processes. Electrical power enters from the left through a sealed power connector, and optical measurement methods inside the encoder support system accuracy.
The built-in brake supplies 22.0 Nm of holding torque to secure vertical or indexing loads when the drive is de-energized, and operation is permitted between 0 to 40 °C without derating. Within this range, the rotor position is resolved to within ± 0.5 angular minutes, a figure that supports fine contouring tasks in the drive system. The electrical winding identified by 024 matches drive modules that supply the required current and voltage. Class F insulation, a positive shaft seal, and liquid cooling also let the motor handle storage temperatures from -20 to +80 °C and installation heights up to 1000 m above mean sea level while maintaining encoder integrity and absolute position tracking.
