The Bosch Rexroth Indramat MHD112A-024-PG0-LN is a servo motor from the MHD Synchronous Motors series. It delivers a continuous torque at standstill of 15.0 Nm and uses liquid cooling for the housing. The motor features a digital servo feedback encoder with integrated optical position detection and has a degree of protection rated at IP65.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

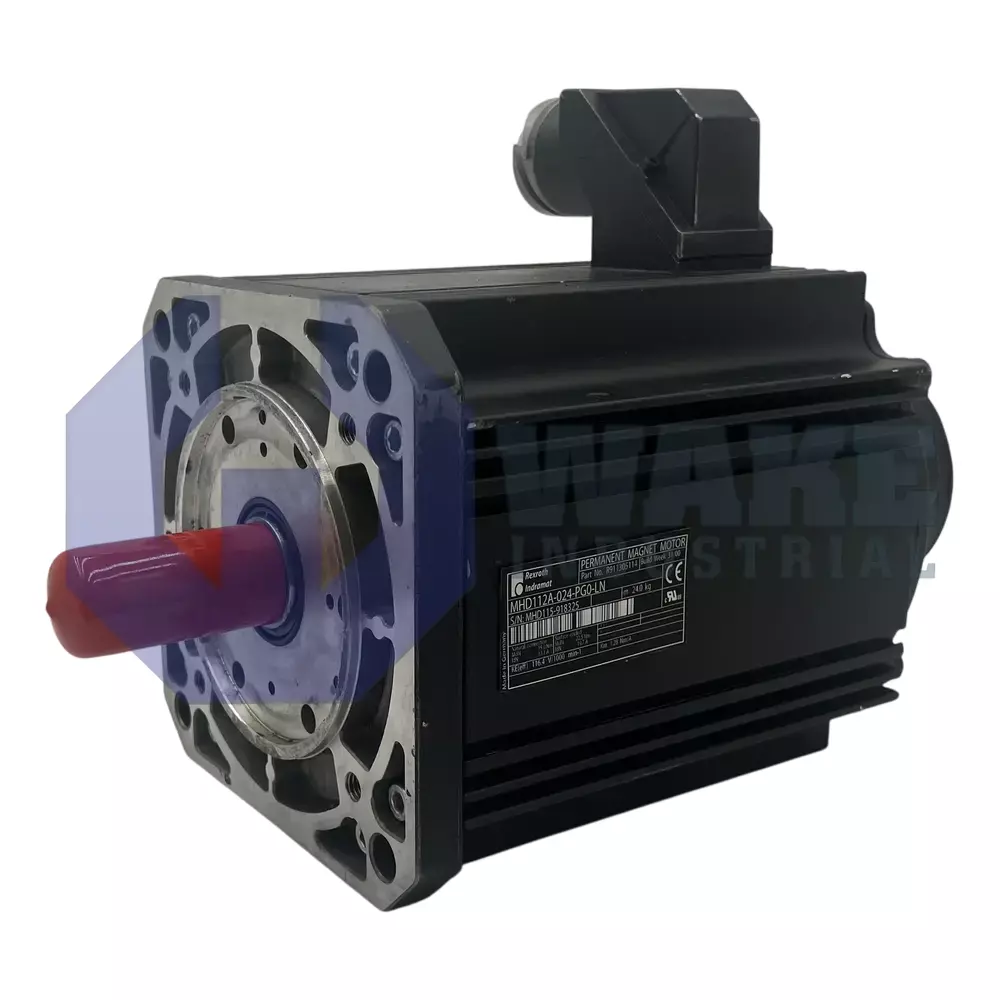

The MHD112A-024-PG0-LN servo motor developed by Bosch Rexroth Indramat belongs to the MHD Synchronous Motors series. As an AC permanent-magnet unit, it converts drive commands from digital controllers into rotary motion for positioning axes, packaging machinery, and material-handling stages. Its integrated feedback system supports closed-loop velocity and position control, helping the motor respond accurately to commanded motion profiles in automated equipment. This layout lets the drive monitor rotor movement directly, which supports smooth acceleration, controlled deceleration, and repeatable positioning during cyclic machine operation.
The motor mounts with a centering diameter of 130 mm and a square flange of 192 mm that fits the standard MHD frame. The plain shaft passes through a shaft seal, and the housing is sealed to IP65 to keep out dust and low-pressure water jets. A liquid cooling circuit inside the stator jacket removes copper and iron losses, allowing a continuous standstill torque of 15.0 Nm. Power is supplied through a left-oriented connector, which can simplify cable routing on machines that feed motor leads from that side. Because the motor has no holding brake, external load-holding hardware is required when power is removed. Installation is permitted up to 1000 m above mean sea level.
The permitted ambient operating range is 0 to 40 °C, and stored equipment can tolerate -20 to +80 °C without damage to the F-class insulation system. Position feedback is provided by an optical encoder with a system accuracy of ± 0.5 angular minutes, giving the controller precise rotor-angle information during operation. The encoder also records more than 4096 revolutions, so position remains available after power is restored. The electrical winding uses code 024, which is matched to digital servo feedback so torque follows the drive's current commands with stable synchronization. This combination supports consistent motion on axes that require accurate speed regulation as well as dependable position tracking.
Frequently Asked Questions about MHD112A-024-PG0-LN:
Q: What type of cooling does the MHD112A-024-PG0-LN motor use?
A: The MHD112A-024-PG0-LN motor utilizes liquid cooling for its housing.
Q: Is a holding brake included with the MHD112A-024-PG0-LN servo motor?
A: This model is manufactured without a holding brake.
Q: What kind of position detection is available on the MHD112A-024-PG0-LN?
A: The encoder on the MHD112A-024-PG0-LN provides absolute position detection for more than 4096 revolutions.
Q: What is the continuous torque at standstill for the MHD112A-024-PG0-LN motor?
A: The MHD112A-024-PG0-LN servo motor has a continuous standstill torque of 15.0 Nm.
Q: What is the degree of protection for the MHD112A-024-PG0-LN servo motor?
A: This model offers a degree of protection rated at IP65.
