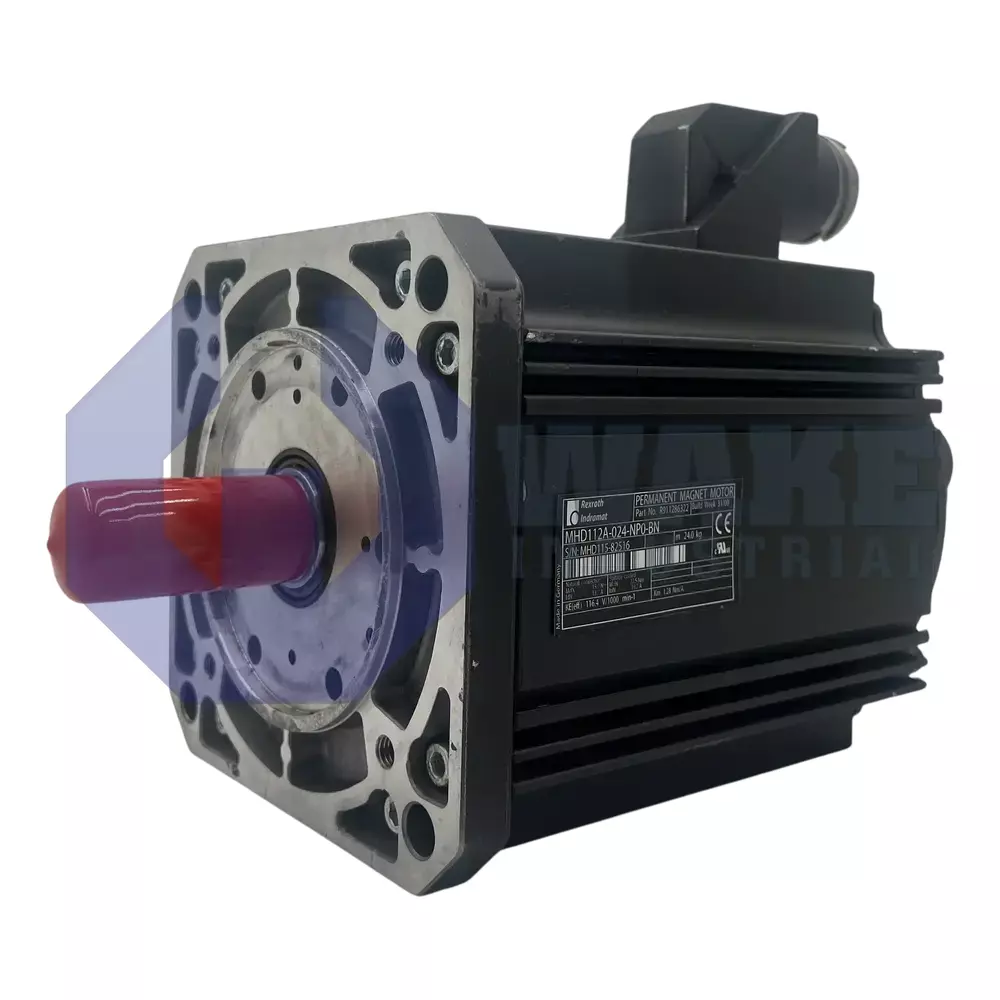

The Bosch Rexroth Indramat MHD112A-024-NP0-BN is a servo motor in the MHD Synchronous Motors series. It has a continuous torque at standstill of 15.0 Nm and features a 192 mm flange size with a 130 mm centering diameter. This model uses liquid cooling, has a keyed shaft with a shaft seal, and offers IP65 degree of protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD112A-024-NP0-BN servo motor is built by Bosch Rexroth Indramat and belongs to the MHD Synchronous Motors series. As a servo actuator for industrial automation, it provides closed-loop rotary motion for drive controllers that need precise positioning and repeatable speed. This arrangement lets the control system correct position and velocity errors during operation. The motor size is 112 with length code A, placing it at the smaller end of the 112 mm frame family. It is intended for installations up to 1000 m above mean sea level where ambient temperatures remain within 0 to 40 °C during operation.
At standstill, the rotor can deliver 15.0 Nm of continuous torque, which supports continuous load capacity at zero speed. An enclosure rating of IP65 helps protect the housing against dust ingress and water jets during operation. Heat is carried away by liquid cooling, allowing the frame to maintain thermal balance without external airflow. Position feedback comes from digital servo feedback (HSF), which uses an optical measurement method and supports relative position detection. With a calibrated system accuracy of ± 0.5 angular minutes, the motor can support fine positional corrections under drive control. The shaft uses a keyed design, and a shaft seal helps restrict lubricant escape. Power is routed through an output connector mounted on side B of the housing.
The motor uses a centering diameter of 130 mm and a square flange that spans 192 mm, allowing direct attachment to standard gearboxes and mounting plates. Winding code 024 indicates the coil layout used with compatible MHD drives. Long-term storage tolerates temperatures from -20 to +80 °C without degrading the insulation system. Because the unit is supplied without a holding brake, static restraint must be provided by the drive electronics or external mechanics. That is especially important on vertical axes or other loads that must remain fixed when power is removed.
Frequently Asked Questions about MHD112A-024-NP0-BN:
Q: What shaft design does the MHD112A-024-NP0-BN motor utilize?
A: The MHD112A-024-NP0-BN servo motor uses a keyed shaft design to ensure secure mechanical power transmission.
Q: What type of cooling does the MHD112A-024-NP0-BN motor use?
A: This model features liquid cooling to maintain optimal motor performance.
Q: What encoder type comes with the MHD112A-024-NP0-BN motor?
A: A digital servo feedback (HSF) encoder is installed on this motor for position detection.
Q: How accurate is the MHD112A-024-NP0-BN servo motor's positioning?
A: The MHD112A-024-NP0-BN achieves a high system accuracy of ± 0.5 angular minutes using optical measurement.
Q: What is the degree of protection for the MHD112A-024-NP0-BN motor?
A: The degree of protection is rated at IP65, providing strong resistance to dust and low-pressure water jets.
