Product Description:

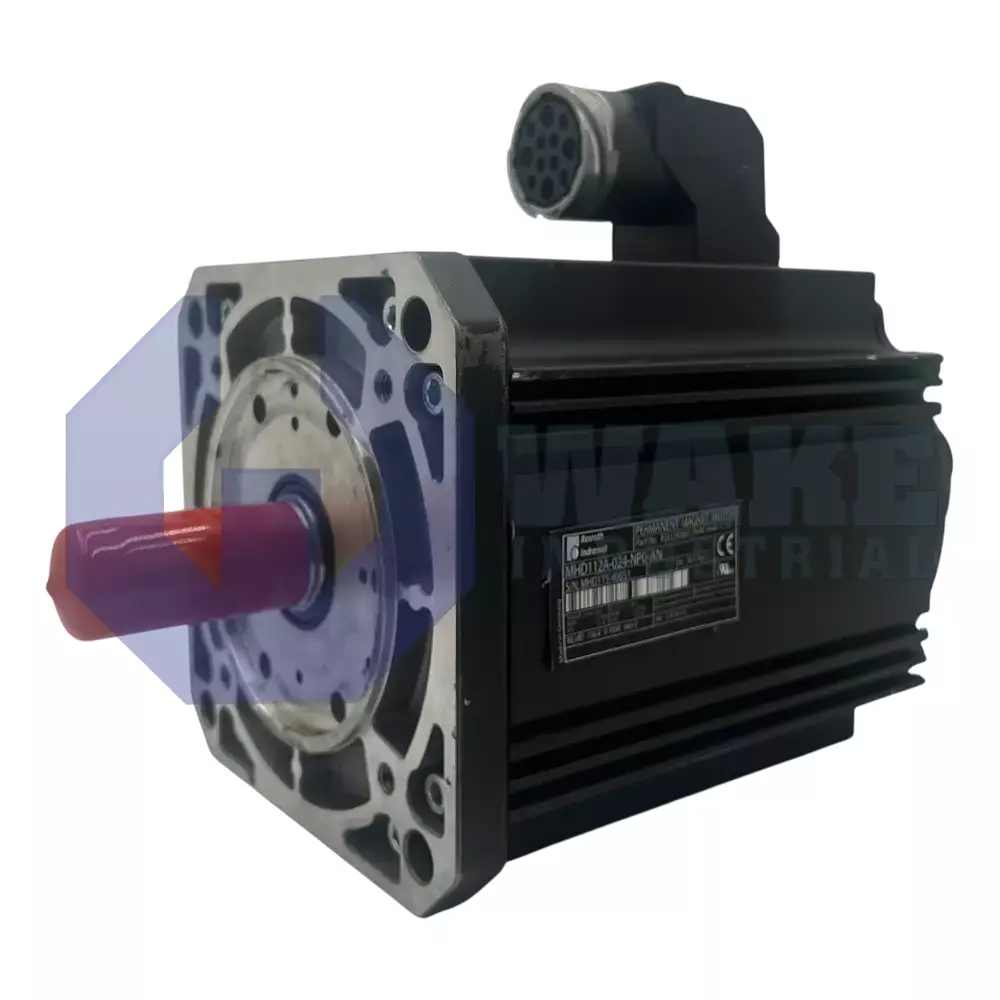

The MHD112A-024-NP0-AN is a servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. Designed for closed-loop drive systems, it links to Rexroth controller platforms and supplies regulated torque and speed for automated conveyors, packaging equipment, and multi-axis cells. Through its relative position feedback and keyed power connector on side A, the unit integrates into systems where precise rotary positioning is required.

At standstill, the motor can deliver 15.0 Nm of continuous torque, so stable holding and low-speed process moves are possible without thermal overload. A housing rating of IP65 keeps dust ingress and water jets away from internal windings, which is important because this frame relies on liquid cooling to move heat directly out of the stator jacket. The square flange measures 192 mm, and the 130 mm centering diameter aligns the case to gearboxes or mounting surfaces with minimal runout. Motion feedback is provided by digital servo feedback (HSF), which transfers high-resolution rotor position data to the drive, and optical measurement inside the encoder avoids wear that could affect accuracy over long duty cycles.

The windings use insulation class F, allowing the cooling circuit to accept elevated internal temperatures while operating in an ambient range of 0 to 40 °C. Position repeatability is maintained within ± 0.5 angular minutes, which supports accurate axis movement during repeated cycles. A keyed shaft transmits torque to couplings without slippage, and a shaft seal helps keep the enclosure boundary intact during continuous washdown service. The motor is supplied without a holding brake, so static load locking must come from the drive or an external clamp. Installation is permitted up to 1000 m above mean sea level, and the feedback system supports stable closed-loop operation with a compatible drive.
