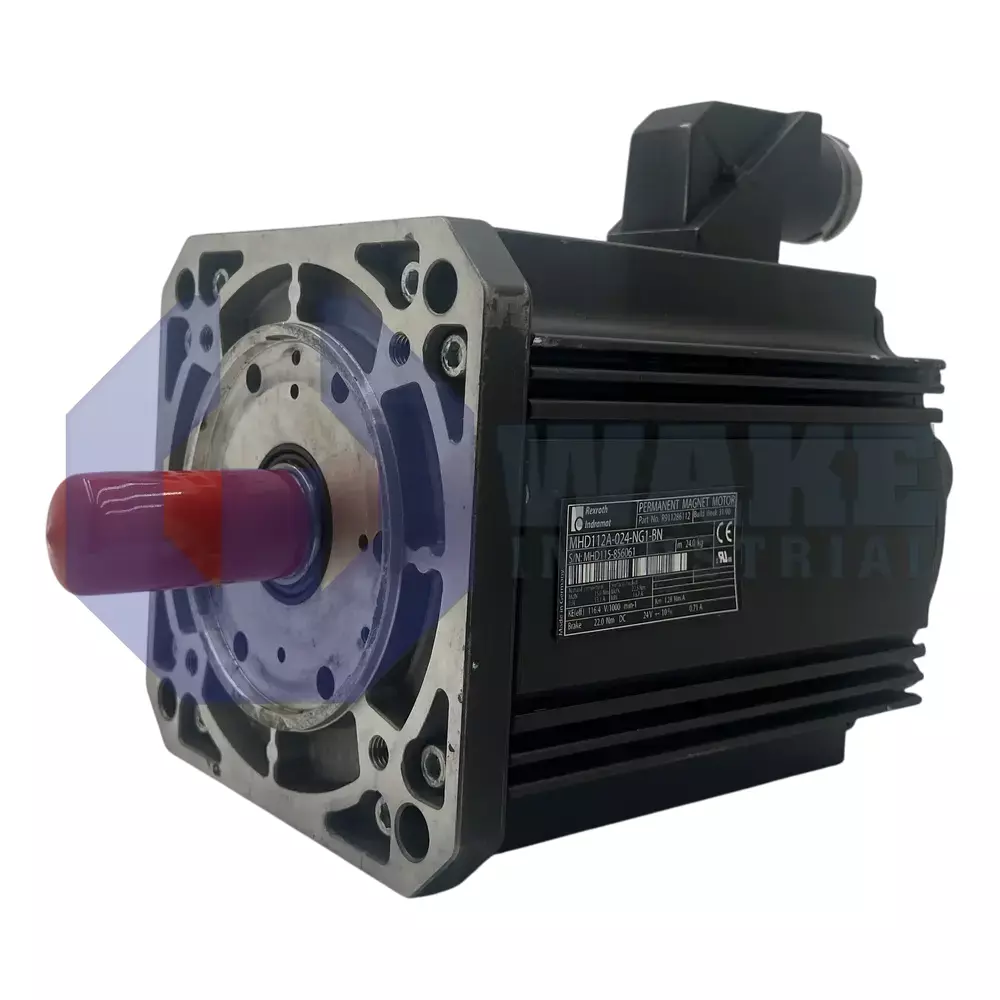

MHD112A-024-NG1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911286112
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
34 Seconds
The Bosch Rexroth Indramat MHD112A-024-NG1-BN is a servo motor in the MHD Synchronous Motors series. It features liquid cooling, an IP65 protection rating, and a continuous torque at standstill of 15.0 Nm. The motor comes with a plain shaft, holding brake with 22.0 Nm brake torque, and a digital servo feedback encoder.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat’s MHD112A-024-NG1-BN belongs to the MHD Synchronous Motors series and is classified as a servo motor for closed-loop motion axes in machine tools, packaging lines, and other automated cells. The unit translates controlled drive current into precise rotary output so position, speed, and torque commands from the controller are executed repeatably on the mechanical load. Position feedback is supplied by a digital servo feedback encoder that is read optically, allowing the drive to track relative rotor movement during operation. Power conductors exit on side B through an output connector, which can simplify cabinet wiring.
At standstill, the rotor can deliver a continuous torque of 15.0 Nm, giving the drive enough margin for static holding and low-speed feed motions. Thermal energy is removed by an integrated liquid cooling circuit, allowing full-load operation without external fans, and the housing is sealed to IP65 against dust and water jets. The square mounting interface measures 192 mm across the flange, while a 130 mm centering diameter aligns the motor with gearbox or machine frames. Size 112 with length A keeps the overall envelope compact, and a plain shaft uses a shaft seal to help prevent ingress along the journal.
An internal brake applies 22.0 Nm of holding torque when the system is de-energized, safeguarding vertical or suspended loads. For contouring applications, the motor’s system accuracy is rated at ± 0.5 angular minutes, so commanded angles are followed closely over the full travel. The windings use Class F insulation, and the electrical design follows winding code 024 for resistance and inductance matching. The motor operates in ambient temperatures from 0 to 40 °C. Storage is permitted between -20 °C and +80 °C, and installation is allowed up to 1000 m above mean sea level without derating.
Frequently Asked Questions about MHD112A-024-NG1-BN:
Q: What type of cooling does the MHD112A-024-NG1-BN use?
A: This model features liquid cooling for maintaining consistent operating temperatures during use.
Q: What kind of encoder is included with the MHD112A-024-NG1-BN motor?
A: The encoder type is digital servo feedback (HSF) with optical measurement for relative position detection.
Q: What is the holding brake torque of the MHD112A-024-NG1-BN motor?
A: The holding brake provides a torque of 22.0 Nm for secure holding when stationary.
Q: What is the degree of protection on the MHD112A-024-NG1-BN?
A: This motor is rated with IP65 degree of protection, offering complete protection against dust and water jets.
Q: What is the continuous torque at standstill for the MHD112A-024-NG1-BN motor?
A: The MHD112A-024-NG1-BN has a continuous standstill torque of 15.0 Nm.
