The Bosch Rexroth Indramat MHD112A-024-NG0-LN is a servo motor from the MHD Synchronous Motors series, featuring liquid cooling and a continuous standstill torque of 15.0 Nm. It has a digital servo feedback encoder, a flange size of 192 mm, and an IP65 degree of protection. The motor is designed with a plain shaft, insulation class F, and operates within an ambient temperature range of 0 to 40 °C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

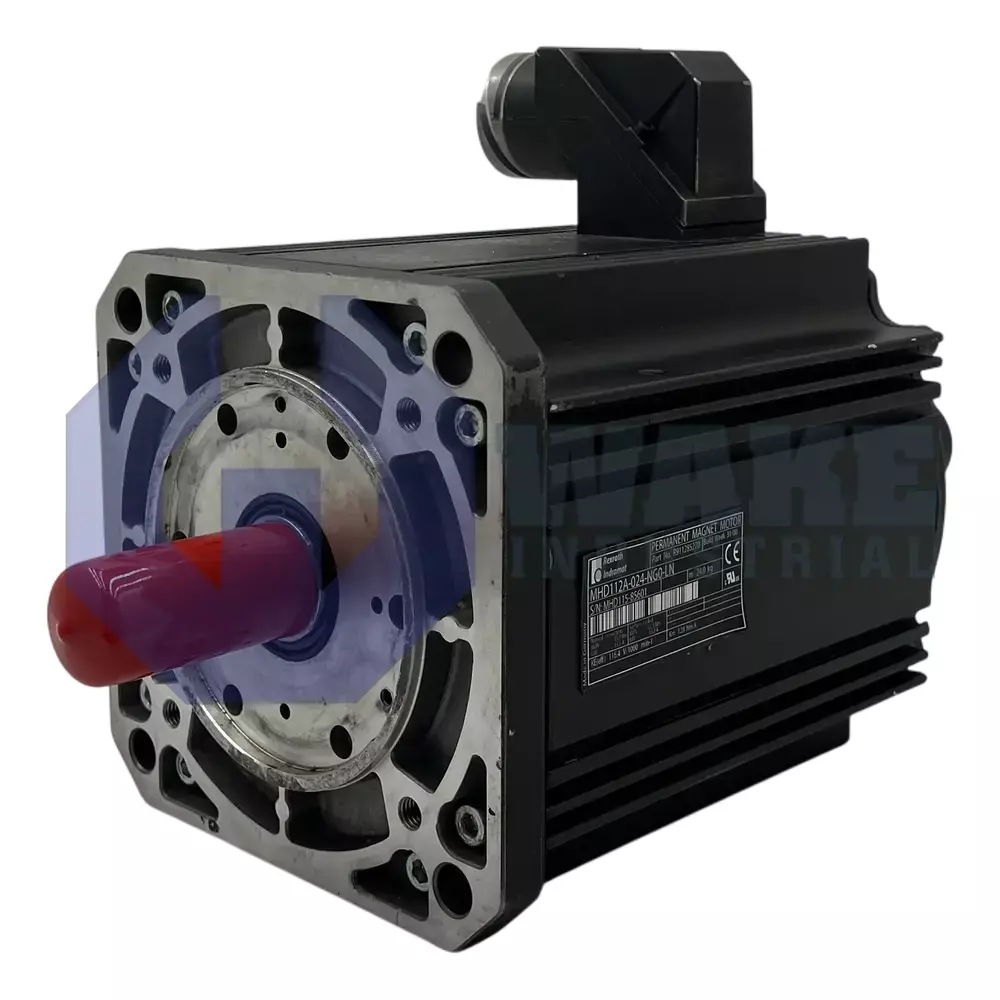

The MHD112A-024-NG0-LN servo motor is produced by Bosch Rexroth Indramat as part of the MHD Synchronous Motors series. It is intended for closed-loop industrial drives and converts inverter output into regulated rotary motion for ball screws, indexing tables, and robotic joints. A relative optical feedback device is integrated inside the housing, so the motor does not require a separate external encoder housing. Keeping the feedback hardware inside the main body supports compact axis layouts and helps protect the sensing components from external contamination.
At standstill, the motor can produce 15.0 Nm of torque under drive control. Heat is removed by liquid cooling, and the windings use Class F insulation for thermal durability. The enclosure is rated IP65, which helps keep out dust and low-pressure water spray. Motion data are captured through digital servo feedback (HSF), using an optical sensing system with relative position evaluation in the drive. This feedback method gives the controller the position and speed information needed for closed-loop operation. A sealed power connector is positioned on the left side of the frame, and continuous duty is permitted from 0 to 40 °C. Installation is approved up to 1000 m above sea level, while winding code 024, motor size 112, and length A identify the motor configuration.
The mounting flange measures 192 mm, and the output uses a plain shaft with a shaft seal to limit lubricant migration. System positioning accuracy is held within ± 0.5 angular minutes, which supports precise indexing in packaging and printing machinery. A 130 mm centering diameter helps align the flange during assembly and supports accurate seating on the machine face. Because the motor does not include a holding brake, static locking must be provided by the drive or by external clamps. Storage is permitted from -20 °C to +80 °C, and the relative feedback system requires homing after power restoration.
Frequently Asked Questions about MHD112A-024-NG0-LN:
Q: What type of cooling system does the MHD112A-024-NG0-LN motor use?
A: The MHD112A-024-NG0-LN is equipped with liquid cooling for efficient heat dissipation during operation.
Q: What kind of shaft design is provided on the MHD112A-024-NG0-LN?
A: The shaft on this model is a plain type and features a shaft seal for added protection.
Q: What is the continuous standstill torque for the MHD112A-024-NG0-LN?
A: The continuous torque at standstill is rated at 15.0 Nm for this servo motor.
Q: What is the IP rating of the MHD112A-024-NG0-LN servo motor?
A: This model has a degree of protection rated at IP65, ensuring resistance against dust and water jets.
Q: What encoder type is used for position detection in the MHD112A-024-NG0-LN?
A: Digital servo feedback (HSF) is the encoder type implemented for precise position monitoring in this motor.
