Product Description:

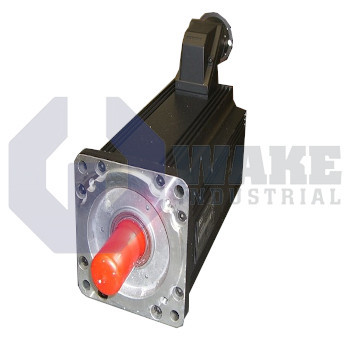

The MHD093C-058 belongs to the MHD Synchronous Motors series produced by Bosch Rexroth Indramat. It is an AC servo motor intended for closed-loop velocity and position control on packaging machines, gantry axes, and other automated stations where repeatable motion is required. By combining a permanent-magnet rotor with digital feedback, the motor converts drive current into precise rotary movement that can be synchronized with other axes in an industrial cell. This arrangement helps the drive correct motion quickly when load conditions change during operation.

The motor can maintain a continuous torque of 23.0 Nm at standstill, so it can provide holding torque while the drive commands zero speed. Its centering shoulder measures 130 mm in diameter, providing a large pilot surface that keeps the shaft concentric with gearboxes or direct-drive loads. A square flange pattern of 140 / 150 mm permits mounting to standardized mechanical interfaces found on medium-frame machines. The motor uses length code C, which indicates an extended stator stack for higher thermal mass and torque capacity than shorter versions in the same frame. The frame size 093 places the unit in the corresponding outside-diameter group for this motor family.

The motor uses winding code 058, which sets the electrical characteristics expected by a matching drive. As a Servo Motor, it responds to rapid current changes for controlled acceleration, deceleration, and positioning. Digital feedback allows the drive to monitor rotor position continuously and maintain accurate command tracking during indexing, feed, and transfer motions. The motor is suited to applications that require steady low-speed control as well as repeatable cycle-to-cycle positioning under changing loads. The housing and mounting dimensions suit medium-frame installations that need a balance of torque output and compact machine integration.
