MHD093C-035-NP1-BN Bosch Rexroth Indramat

MPN: R911278234

No Tariffs On US Orders
  • Rated 4.5 (68 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
In-Stock, Ships 3-5 Days

Preparing your secure checkout page...

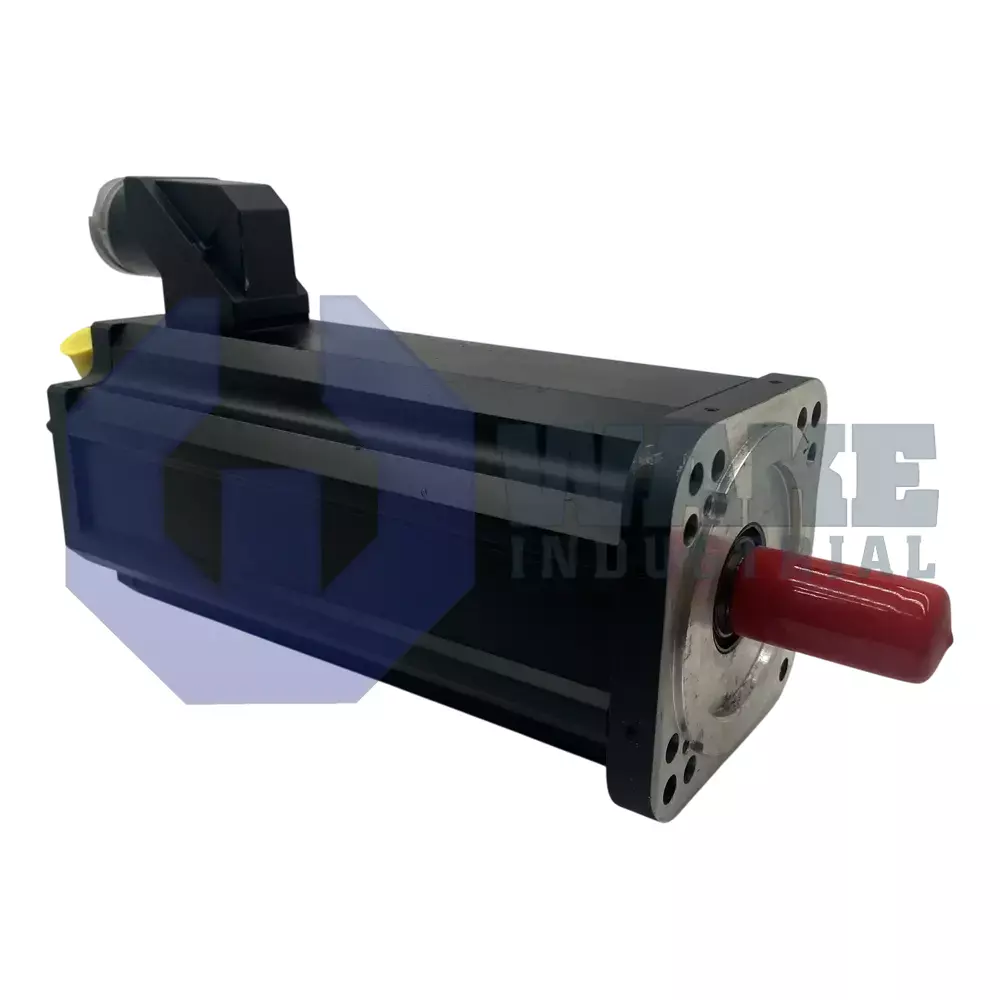

The Bosch Rexroth Indramat MHD093C-035-NP1-BN is a servo motor from the MHD Synchronous Motors series, featuring a keyed shaft and liquid cooling. It offers continuous torque at standstill of 23.0 Nm and has a holding brake with 22.0 Nm torque. This motor features IP65 protection, digital servo feedback encoder, and operates within an ambient temperature range of 0 to 40 degrees Celsius.

Quote Request Form:

Warranty
Wake Industrial Warranty

To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The MHD093C-035-NP1-BN is a servo motor manufactured by Bosch Rexroth Indramat within the MHD Synchronous Motors series. It combines a keyed shaft, digital servo feedback, and relative position detection to execute closed-loop motion tasks in automated machinery. By integrating high-resolution optical measurement and a shaft seal, the motor maintains accurate rotational data while helping prevent contaminants from entering the housing, making it suitable for inline packaging, material handling, and similar industrial positioning duties.

The motor can deliver a continuous standstill torque of 23.0 Nm, enabling sustained holding or low-speed feed operations without thermal overload when the liquid jacket removes heat. Its housing carries an IP65 protection rating, so internal windings remain protected from dust and water jets. A centering diameter of 130 mm aligns the 140 / 150 mm flange with gearboxes or mounting plates, and liquid cooling helps limit temperature rise during cyclic acceleration. Position feedback resolves to within ± 0.5 angular minutes because the optical encoder tracks rotor angle directly. Continuous operation is supported between 0 to 40 °C, while storage from -20 to +80 °C helps prevent moisture-related damage. The motor also uses Class F insulation, has a C motor length with size 093, and routes the power connector to side B for practical cable routing.

During power-off conditions, an integrated brake supplies 22.0 Nm of static torque, holding vertical or overhung loads until drive current is restored. Installations may be located up to 1000 m above sea level without derating, which covers most factory elevations. Winding code 035 matches the motor to compatible Indramat drives that can support its electrical characteristics without overstressing semiconductors or conductors.

Ambient Storage Temperature Range
-20 to +80 °C
Centering diameter
130 mm
Continuous Torque at Standstill
23.0 Nm
Degree of protection
IP65
Encoder Type
Digital servo feedback (HSF)
Flange size
140 / 150 mm
Holding Brake
With holding brake
Holding Brake Torque
22.0 Nm
Housing Cooling Type
Liquid cooling
Insulation Class
F
Maximum setup height
1000 above MSL
Measurement method
Optically
Motor Length
C
Motor Size
093
Operating Ambient Temperature Range
0 to 40 °C
Power Connection Direction
to side B
Power ConnectionType
Output Connector
Product Type
Servo Motor
Shaft Design
Keyed Shaft
Shaft Seal
Yes
System accuracy
± 0.5 angular minutes
Type of Position Detection
Relative
Winding Code
035
  • MHD093C035NP1BN
  • MHD093C 035 NP1 BN
  • mhd093c-035-np1-bn
  • MHD93C-035-NP1-BN
Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Frequently Asked Questions about MHD093C-035-NP1-BN:

Q: What is the continuous torque at standstill for the MHD093C-035-NP1-BN motor?

A: This model provides a continuous torque of 23.0 Nm at standstill.

Q: What type of housing cooling does the MHD093C-035-NP1-BN motor use?

A: The MHD093C-035-NP1-BN motor features liquid cooling for its housing.

Q: Does the MHD093C-035-NP1-BN motor have a holding brake, and what is its torque?

A: This motor includes a holding brake with a torque of 22.0 Nm.

Q: What is the degree of protection for the MHD093C-035-NP1-BN motor?

A: The degree of protection for this model is IP65, offering dust-tight and water jet-resistant capabilities.

Q: What type of encoder and measurement method does the MHD093C-035-NP1-BN motor use?

A: Position detection is performed with digital servo feedback (HSF) using optical measurement.


Internal Product Review

  • ‘‘The MHD093C-035-NP1-BN is a Bosch Rexroth Indramat servo motor with liquid cooling for stable thermal performance. Digital servo feedback (HSF) and ±0.5 angular minutes system accuracy support very precise motion control. A holding brake rated at 22.0 Nm adds dependable axis retention, making the unit a very capable choice for controlled servo applications.’’
