Product Description:

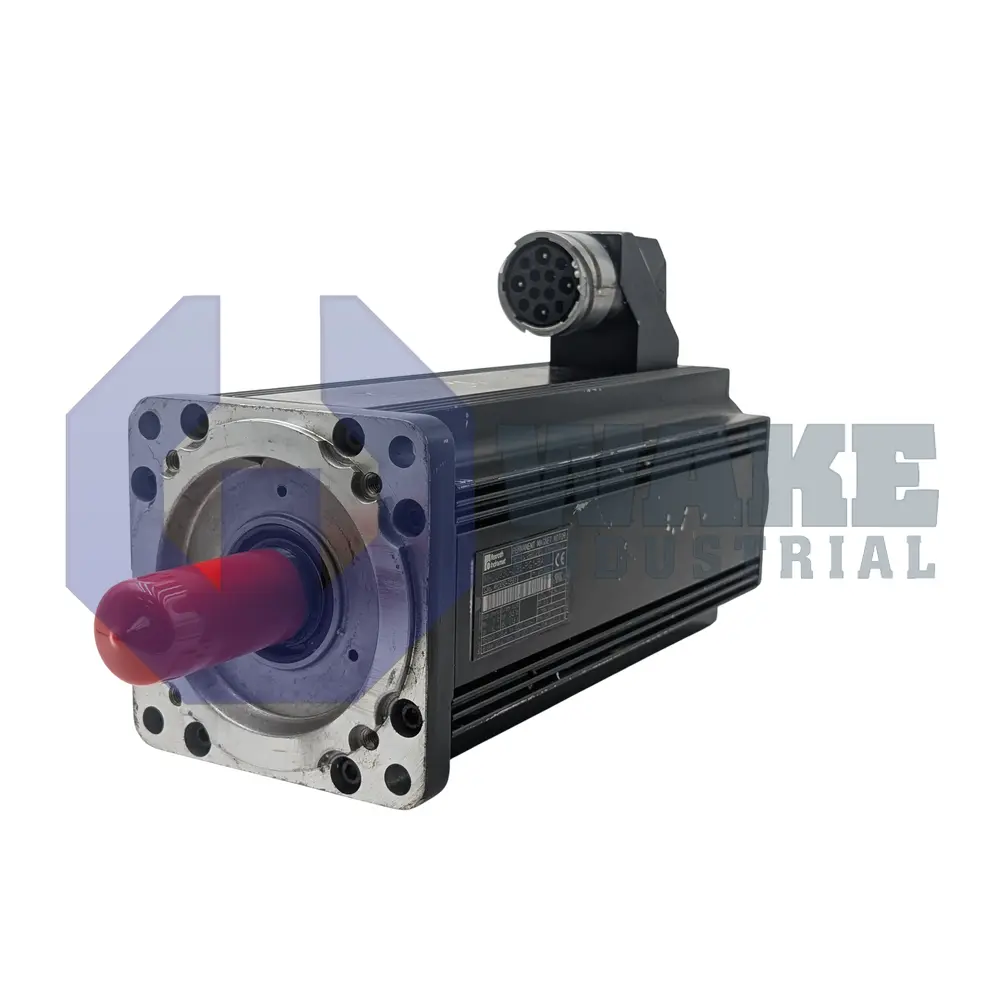

The MHD093C-035-NP1-AA is a servo motor from Bosch Rexroth Indramat and belongs to the MHD Synchronous Motors series. In motion-control lines, it converts drive current into regulated rotary motion for positioning conveyors, tooling spindles, or pick-and-place axes. When paired with a compatible drive, it supports controlled speed and position changes during repeated machine cycles. Its frame size suits applications that need precise motion without the bulk of a larger motor.

At standstill, the rotor can deliver 23.0 Nm of continuous torque, allowing the drive to maintain load tension without overheating. The enclosure carries an IP65 rating, so dust is excluded and water jets are kept away from internal windings. The motor operates in ambient temperatures from 0 to 40 °C, and heat is removed through natural convection rather than forced cooling. The digital servo feedback system uses HSF code tracking to relay position data to the controller, with a system accuracy of ± 0.5 angular minutes for precise contour control. An integrated 22.0 Nm holding brake secures the shaft when power is removed, while class F insulation tolerates winding temperatures up to 155 °C. A keyed shaft with a fitted seal helps limit lubricant escape and resists washdown fluids.

The motor centers on a 130 mm pilot diameter and matches machinery flanges sized at 140 or 150 mm, while length code C keeps the body depth moderate. Installation is permitted up to 1000 m above MSL without derating, and storage is allowed at temperatures from −20 to +80 °C. Power terminals exit through a connector on side A, which helps align the cable run with the machine layout. The motor uses winding code 035, and position is measured optically and evaluated as a relative value by the controller, so homing is required after power-up. Motor size 093 keeps the cross-section compatible with mid-range gear sets and common mounting spaces.
