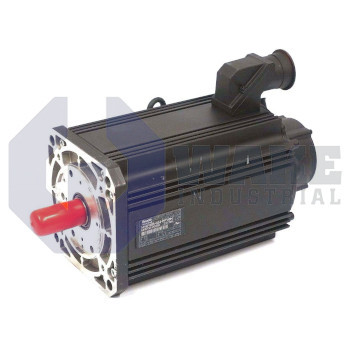

MHD093C-035-NP0-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911276455
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MHD093C-035-NP0-BN is a servo motor from the MHD Synchronous Motors series with a centering diameter of 130 mm and a continuous torque at standstill of 23.0 Nm. It features a keyed shaft design, liquid cooling, and uses digital servo feedback for encoder type. The motor does not include a holding brake and has a flange size of 140 or 150 mm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the MHD093C-035-NP0-BN within the MHD Synchronous Motors series. It is a servo motor for industrial automation where closed-loop positioning is required; the integrated encoder supplies relative position data to the drive so axes can be synchronized with machine commands. A frame size of 093 and the “C” length code place this model in the medium power class, giving designers a compact package that mounts on common 140-mm machine interfaces while still delivering high continuous torque for process equipment.
The motor delivers 23.0 Nm of continuous standstill torque, maintaining load force without overheating. Precise centering during installation is supported by a 130 mm pilot diameter, and the face incorporates a 140 / 150 mm flange pattern that matches many gearbox adapters. Heat generated during continuous duty is extracted by the stator’s Liquid cooling channel, allowing full ratings in tight enclosures. Rotor position and speed are reported through a Digital servo feedback (HSF) system, giving the controller high-resolution data for velocity loops and electronic gearing.
Power reaches the stator through an Output Connector oriented toward side B, keeping the cable bundle clear of adjoining mechanics. A keyed shaft transmits torque while preventing slip under acceleration, and the front bearing is protected by a shaft seal to block splash or condensate. The unit is supplied without a holding brake, so mechanical locking must be provided externally when power is removed. Winding code 035 characterizes the electrical resistance and inductance chosen for this frame, ensuring compatibility with Rexroth drives that match the required current for the motor’s liquid-cooled “C” length architecture.
Frequently Asked Questions about MHD093C-035-NP0-BN:
Q: What is the continuous torque at standstill for the MHD093C-035-NP0-BN motor?
A: The MHD093C-035-NP0-BN has a continuous standstill torque rated at 23.0 Nm.
Q: Does the MHD093C-035-NP0-BN motor have a holding brake?
A: This model does not come equipped with a holding brake.
Q: What type of encoder is used in the MHD093C-035-NP0-BN motor?
A: The MHD093C-035-NP0-BN utilizes digital servo feedback (HSF) for position detection.
Q: What is the direction and type of power connection for the MHD093C-035-NP0-BN?
A: The power connection for this motor is positioned on side B via an output connector.
Q: What cooling method is used in the MHD093C-035-NP0-BN servo motor?
A: This motor features liquid cooling to manage its operating temperature.
