MHD093C-035-NG0-AA Bosch Rexroth Indramat

MPN: R911286328

No Tariffs On US Orders
  • Rated 4.6 (66 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
In-Stock, Ships 1-2 Days

Current response time:
4 Minutes 43 Seconds

Preparing your secure checkout page...

The Bosch Rexroth Indramat MHD093C-035-NG0-AA is a synchronous motor from the MHD Synchronous Motors series with a continuous torque at standstill of 23.0 Nm and a natural convection cooling type. It features a plain shaft design, a digital servo feedback encoder, and a centering diameter of 130 mm. The motor has a flange size of 140 or 150 mm and a power connection located on side A using an output connector.

Quote Request Form:

Warranty
Wake Industrial Warranty

To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

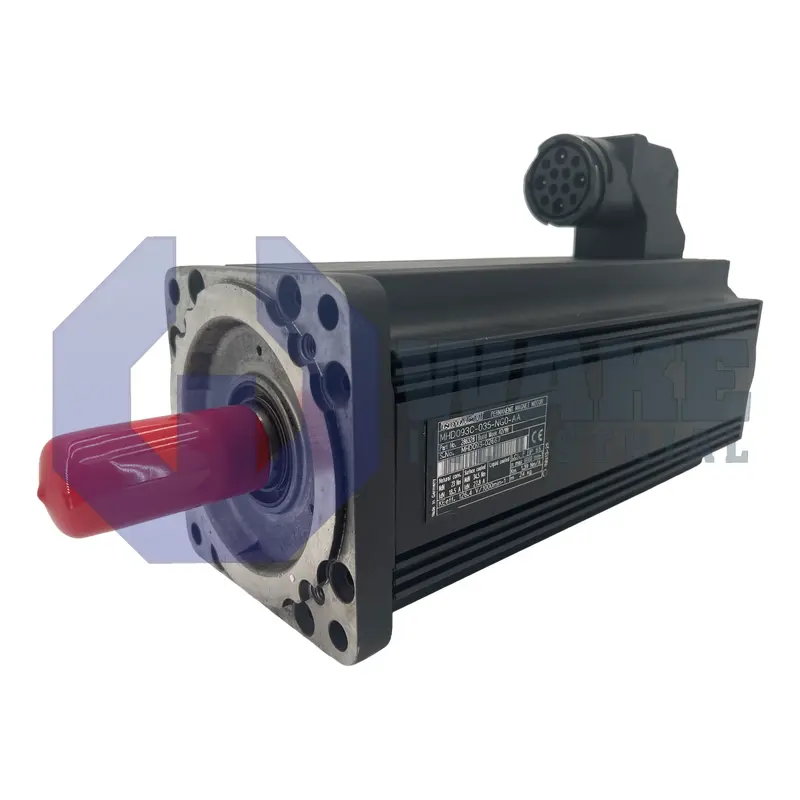

The MHD093C-035-NG0-AA is a synchronous servo motor produced by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It is intended to drive positioning and speed-controlled axes in automated machinery where rapid response and repeatability are required. By combining permanent-magnet excitation with a digitally monitored rotor, the unit converts electrical power from a Rexroth drive into controlled mechanical rotation for feed, gantry, or transfer stations. It is well suited for packaging, transfer, and handling equipment that depends on repeatable axis behavior throughout the cycle.

The motor can deliver a continuous standstill torque of 23.0 Nm, enabling stable load holding and low-speed operation without overheating. Heat is removed by natural convection, so no external blower or liquid circuit is necessary. Position data is generated through digital servo feedback (HSF), which supplies high-resolution incremental signals to the controller. Power is routed through a connector on side A, which can simplify cable routing when multiple axes share a common manifold plate. The square flange uses a 140 / 150 mm mounting interface. Size designation 093 places the frame in the mid-power class, and length code C provides a moderate active stack suited to cycle-duty applications. The connector format allows fast connection while keeping the cable interface sealed.

Precise mechanical centering is provided by a 130 mm pilot recess that aligns the housing with the machine frame. Output torque is transmitted through a plain shaft, allowing couplings or pulleys to be selected without keyway constraints. The feedback system works on a relative basis, so the axis must perform a homing move at startup to establish its reference position. After that reference is established, the drive can track commanded motion with closed-loop correction during operation. Winding code 035 indicates the electrical characteristics used for voltage and current matching with a compatible drive.

Centering diameter
130 mm
Continuous Torque at Standstill
23.0 Nm
Encoder Type
Digital servo feedback (HSF)
Flange size
140 / 150 mm
Housing Cooling Type
Natural convection
Motor Length
C
Motor Size
093
Power Connection Direction
to side A
Power Connection Type
Output Connector
Shaft Design
Plain shaft
Type of Position Detection
Relative
Winding Code
035
  • MHD093C 035 NG0 AA
  • MHD093C035NG0AA
  • mhd093c-035-ng0-aa
  • MHD93C-035-NG0-AA
Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Frequently Asked Questions about MHD093C-035-NG0-AA:

Q: What is the continuous torque at standstill for the MHD093C-035-NG0-AA motor?

A: This motor produces a continuous torque of 23.0 Nm at standstill.

Q: What type of encoder is used in the MHD093C-035-NG0-AA motor?

A: The MHD093C-035-NG0-AA features digital servo feedback (HSF) as its encoder type.

Q: How is the MHD093C-035-NG0-AA motor cooled?

A: The motor uses a natural convection cooling type for its housing.

Q: What shaft design does the MHD093C-035-NG0-AA motor have?

A: This model is built with a plain shaft design for mechanical coupling.

Q: How is the power connection arranged on the MHD093C-035-NG0-AA motor?

A: The power connection on this motor is an output connector oriented to side A.


Internal Product Review

  • ‘‘The MHD093C-035-NG0-AA is a Bosch Rexroth Indramat MHD synchronous motor with natural convection cooling for efficient thermal management. Digital servo feedback (HSF) paired with relative position detection gives the motor precise response and dependable control behavior. Continuous standstill torque of 23.0 Nm makes the motor an excellent fit for demanding servo applications.’’
