MHD093C-024-PG1-BA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911309759
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
4 Seconds

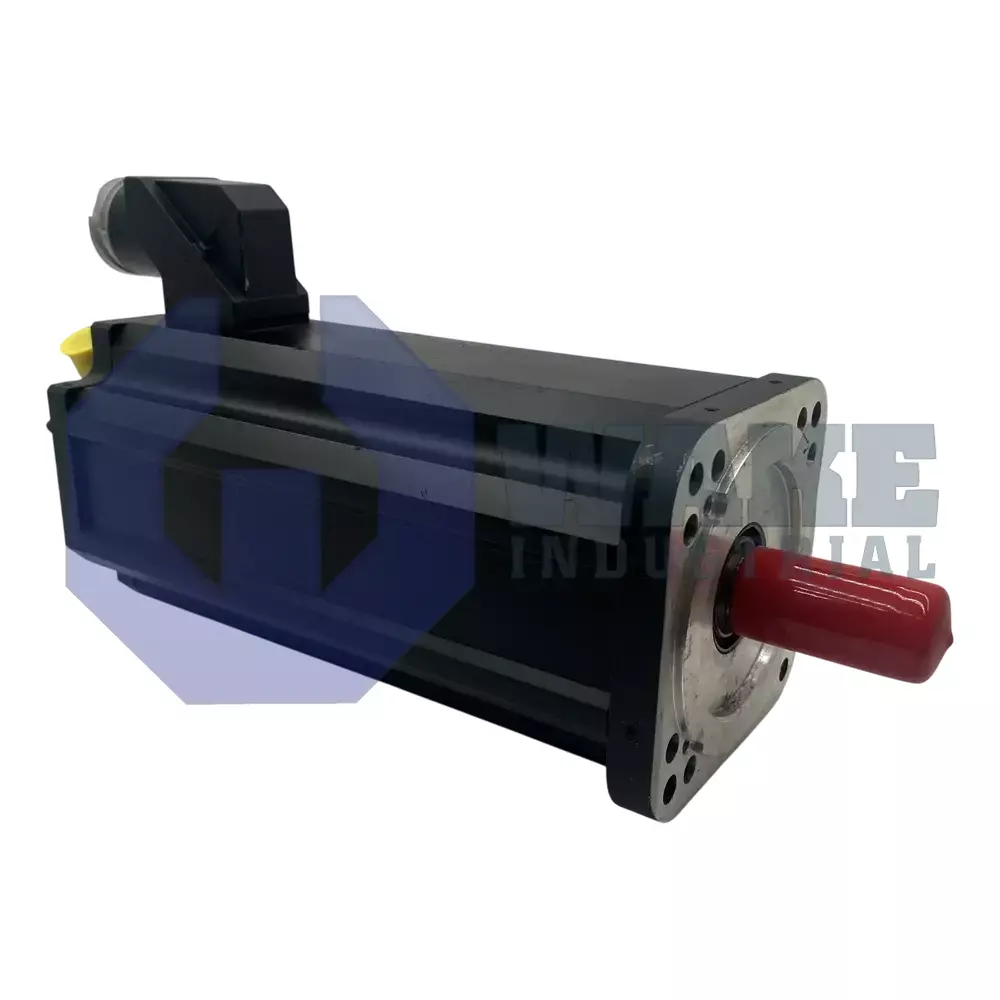

The Bosch Rexroth Indramat MHD093C-024-PG1-BA is a servo motor from the MHD Synchronous Motors series featuring a continuous torque at standstill of 23.0 Nm and an IP65 degree of protection. It is equipped with a digital servo feedback encoder with absolute position detection over more than 4096 revolutions and has a plain shaft with a shaft seal. The motor includes a holding brake with a torque of 22.0 Nm and uses natural convection for cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD093C-024-PG1-BA servo motor is produced by Bosch Rexroth Indramat as a member of the MHD Synchronous Motors series. Its frame size 093 and length code C combine with a 140 / 150 mm square flange mounting pattern so that the unit fits machine layouts that use the same bolt pattern. Within a closed-loop drive system, the motor converts electrical power into regulated mechanical torque and speed, providing precise axis motion for conveyors, form-fill-seal machines, pick-and-place equipment, and general handling equipment. It is intended for servo applications where repeatable speed regulation and accurate positioning are required throughout automated production cycles.
Mechanical output includes a continuous standstill capability of 23.0 Nm, while a spring-applied brake adds 22.0 Nm of static holding torque for gravity-loaded axes. Rotor position is monitored by digital servo feedback that uses an optical scanning method and stores absolute multi-turn data, eliminating the need for homing after a power cycle. Heat produced in the stator is dissipated by natural convection, and the cast housing is sealed to IP65 so dust and water jets cannot reach internal windings. The windings use class F insulation, and a plain shaft with a shaft seal transmits torque. Power is supplied through a connector on side B of the end bell. This arrangement supports controlled motion on axes that must hold position when drive power is removed.
Installation accuracy is aided by a 130 mm centering diameter that aligns the flange pilot in the machine housing. The control loop can limit positional error to ±0.5 angular minutes, and reliable operation is maintained from 0 to 40 °C ambient. The motor uses winding code 024 and delivers rated performance up to 1000 m above mean sea level. Storage between −20 and +80 °C does not damage the magnets or insulation.
Frequently Asked Questions about MHD093C-024-PG1-BA:
Q: How is the MHD093C-024-PG1-BA synchronous motor cooled?
A: The MHD093C-024-PG1-BA operates with natural convection cooling, relying on ambient air movement for heat dissipation.
Q: Does the MHD093C-024-PG1-BA motor have a holding brake?
A: A holding brake is included on this motor, providing a brake torque of 22.0 Nm for secure holding when power is off.
Q: What type of position feedback does the MHD093C-024-PG1-BA provide?
A: This model features absolute position detection exceeding 4096 revolutions, with an integrated digital servo feedback encoder for precise position feedback.
Q: What is the protection rating of the MHD093C-024-PG1-BA motor housing?
A: The degree of protection is IP65, which offers protection against dust ingress and low-pressure water jets from any direction.
Q: What is the continuous standstill torque of the MHD093C-024-PG1-BA?
A: The continuous torque at standstill for this motor is rated at 23.0 Nm, supporting sustained loads during stationary operation.
