Product Description:

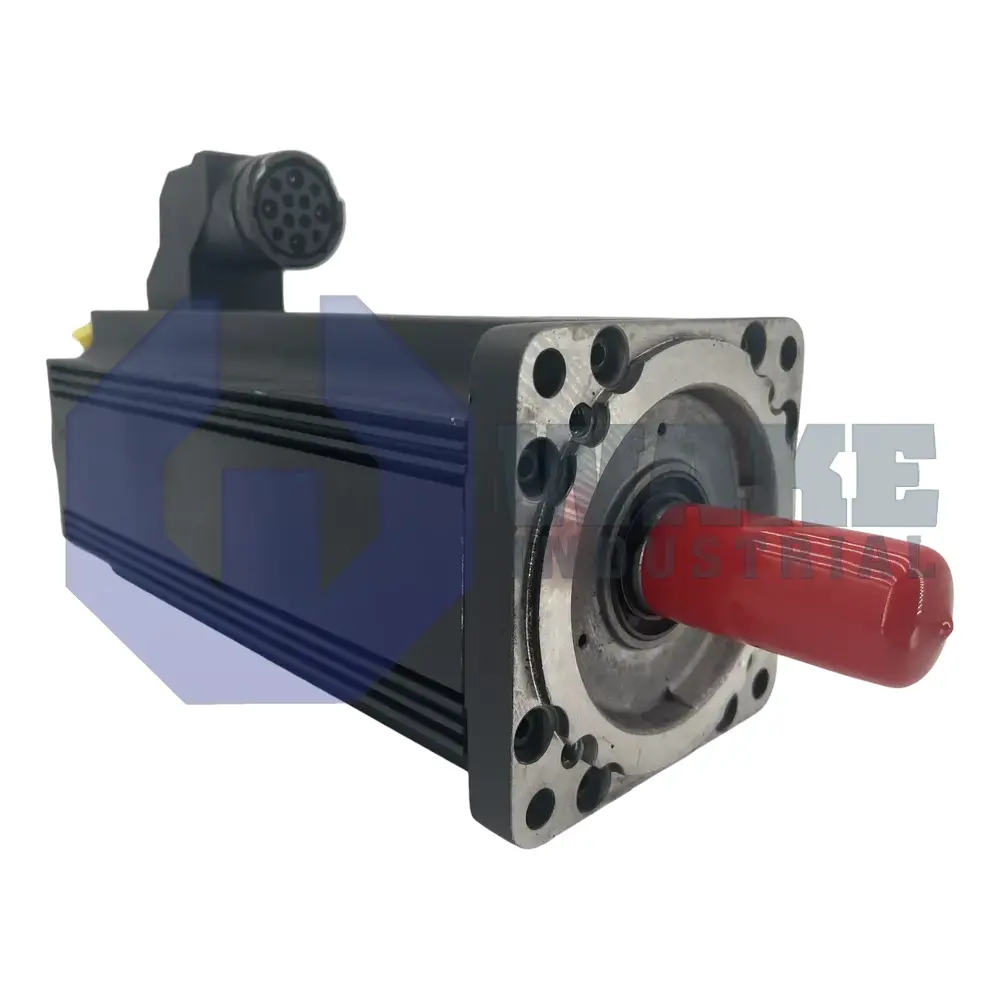

The MHD093C-024-PG0-AA is a three-phase servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. As a torque-dense drive element, it serves CNC axes, pick-and-place heads, and packaging tables where rapid, repeatable positioning is required. The unit relies on natural convection for cooling, fits into machines through a 140 mm flange pattern, and uses an integrated digital feedback encoder so the motion controller always knows the rotor angle without external sensors.

The motor produces a continuous standstill torque of 23.0 Nm, and environmental ingress is limited by an IP65 enclosure. A centering diameter of 130 mm aligns the stator to the machine frame, and the dual flange holes spaced at 140 / 150 mm support either metric or imperial mounting hardware. Inside the stator, winding code 024 indicates resistance and inductance values that match Indramat drive amplifiers for current control. Class F insulation withstands winding temperatures up to 155 °C, and motor length C balances torque output with installation depth. The motor has a plain shaft, and a shaft seal helps keep lubricant out of the bearing chamber. Power enters through an output connector on side A, which can simplify cable routing in tight enclosures.

The servo’s optical measurement system delivers positional data with a system accuracy of ± 0.5 angular minutes, and absolute feedback over more than 4096 revolutions removes the need for homing after power loss. Rated operation is permitted between 0 to 40 °C, with storage tolerance extending from -20 to +80 °C. Installation is approved up to 1000 m above mean sea level without derating, provided the motor remains free of moisture thanks to its sealed housing. There is no holding brake, so static loads must be secured by external means or by drive torque. The 093 build code corresponds to the stator diameter used for this motor frame.
