Product Description:

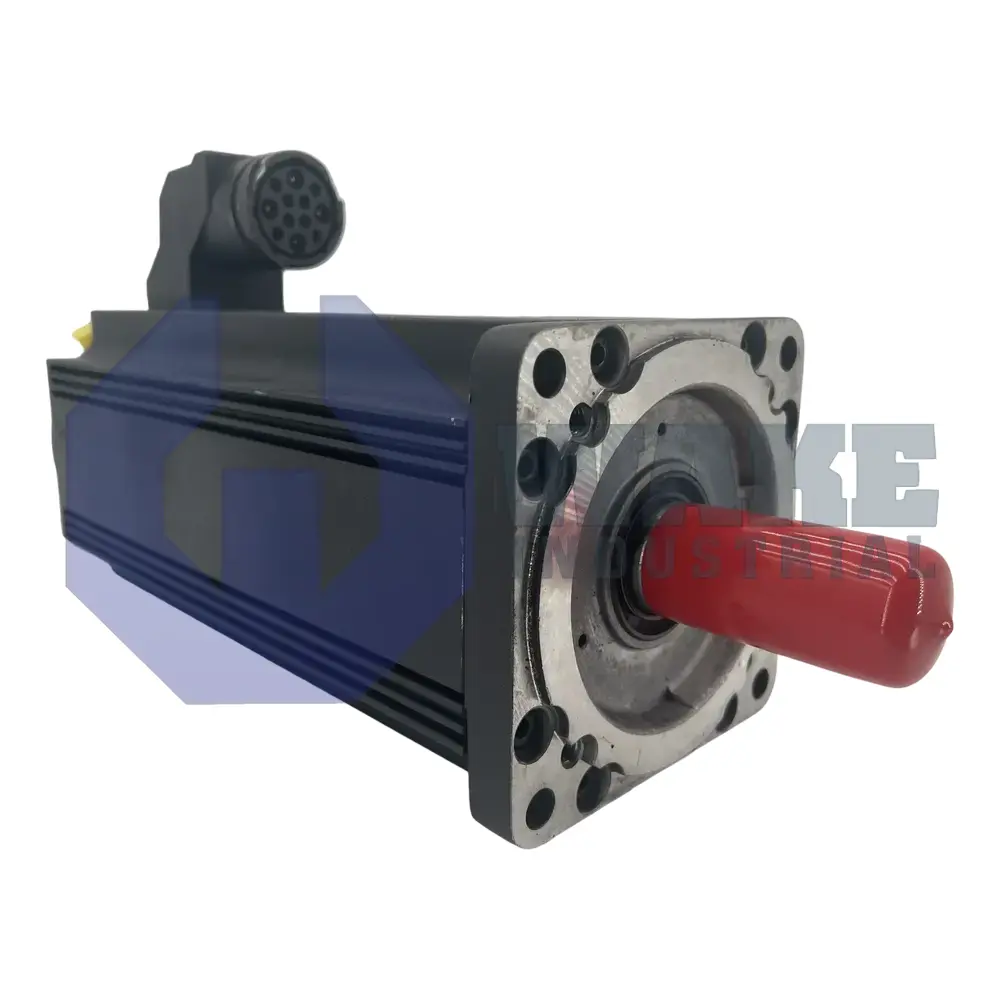

Bosch Rexroth Indramat’s MHD093C-024-NP0-AN belongs to the MHD Synchronous Motors series and functions as a servo drive element in CNC machines, packaging lines, and material-handling axes that need rapid position control. It integrates with Indramat digital drives to convert electrical commands into rotary motion, allowing closed-loop automation across coordinated mechanical stages. A 140/150 mm flange and a motor length coded C set the mounting envelope for machine integration.

The motor produces a continuous standstill torque of 23.0 Nm, which can be sustained because the stator jacket uses liquid cooling to remove heat directly from the winding. An enclosure rating of IP65 blocks dust ingress and low-pressure water jets, so the unit can be installed on the machine frame without an added cabinet. Position feedback relies on digital servo feedback (HSF); the optical sensor inside the encoder generates high-resolution signals for the drive controller, and the data are interpreted as relative rotor angle. The 093 frame size and winding code 024 match the electrical characteristics to compatible Indramat power modules, and the output leads exit on side A through an integral connector.

The operating ambient range is 0 to 40 °C, and components can be stored from -20 to +80 °C without damage. System accuracy of ± 0.5 angular minutes supports fine interpolation in multi-axis gantries, and a centering shoulder diameter of 130 mm aligns the housing to the gearbox plate. The rotor transmits torque through a keyed shaft, and a shaft seal helps keep coolant and oil out of the bearings. Installation is allowed up to 1000 m above mean sea level, and the motor is supplied without a holding brake, so external mechanical retention must be provided when power is removed.
