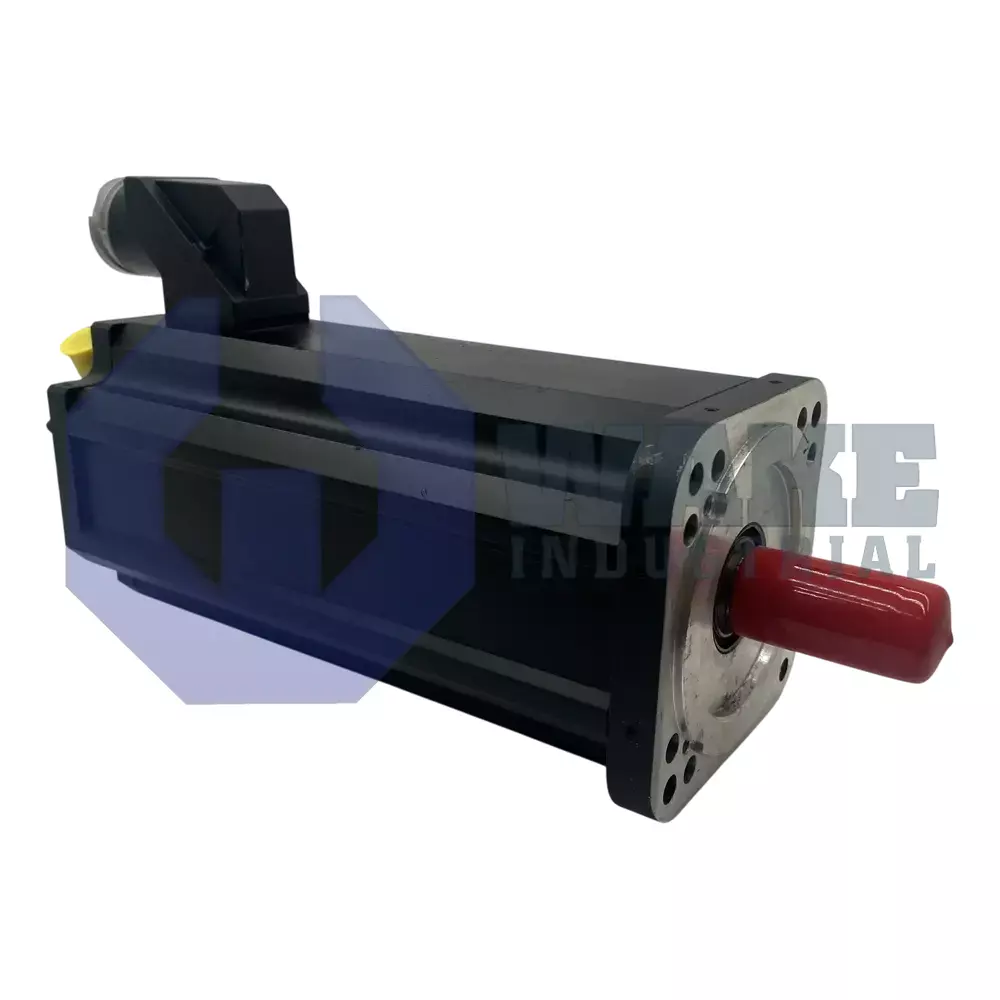

MHD093C-024-NG1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911321041
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
33 Seconds
The Bosch Rexroth Indramat MHD093C-024-NG1-BN is a servo motor from the MHD Synchronous Motors series. It has a continuous torque at standstill of 23.0 Nm, uses liquid cooling, and carries an IP65 degree of protection. The motor features a plain shaft design, operates with a holding brake torque of 22.0 Nm, and uses digital servo feedback for position detection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD093C-024-NG1-BN is a servo motor produced by Bosch Rexroth Indramat as part of the MHD Synchronous Motors series. It delivers controlled rotary motion for industrial automation axes in packaging, printing, and machining lines. The motor is intended to run from a digital drive controller that tracks feedback signals and modulates current so mechanical output follows electronic commands. A compact 093 frame and the C-length variant allow the unit to fit machines that require higher torque without enlarging the mounting footprint.
Its stator produces a continuous standstill torque of 23.0 Nm, enabling sustained feed forces without overheating when the axis holds position. Protection level IP65 seals the housing against dust ingress and water jets, while the centering shoulder of 130 mm aligns the flange precisely to adjoining machine plates. Position feedback comes from a digital servo feedback (HSF) encoder that uses an optical measurement method for high signal fidelity, and the housing employs liquid cooling channels that remove thermal energy directly at the stator laminations. A 140/150 mm flange pattern supports mounting to compatible machine interfaces, and the plain shaft is protected by a factory-installed shaft seal. Power is routed through an output connector located on side B, and Class F insulation withstands winding temperatures up to 155 °C during intensive duty cycles. The feedback system also supports relative position detection for closed-loop control.
A factory-mounted holding brake delivers 22.0 Nm of static torque so vertical or suspended loads remain stationary when the drive is disabled. The motor operates continuously from 0 to 40 °C ambient and can be stored from −20 to +80 °C without damage during normal handling. Closed-loop accuracy is rated at ± 0.5 angular minutes, and winding code 024 identifies the electrical constants used by matching drive amplifiers. Installation is permitted up to 1000 m above mean sea level without changing the stated operating limits.
Frequently Asked Questions about MHD093C-024-NG1-BN:
Q: What encoder type is used in the MHD093C-024-NG1-BN motor?
A: This model uses a digital servo feedback (HSF) encoder, providing relative positional feedback.
Q: What type of housing cooling does the MHD093C-024-NG1-BN motor use?
A: The MHD093C-024-NG1-BN supports liquid cooling for efficient heat dissipation during operation.
Q: What is the degree of protection rating for the MHD093C-024-NG1-BN?
A: This motor has IP65 degree of protection, safeguarding it against dust and water jets.
Q: What is the holding brake torque for the MHD093C-024-NG1-BN?
A: The holding brake on this model provides a torque of 22.0 Nm.
Q: What shaft design does the MHD093C-024-NG1-BN offer?
A: A plain shaft with a shaft seal is featured on this motor for secure coupling and enhanced sealing.
