MHD093B-058-PP1-RN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911315211
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
11 Seconds

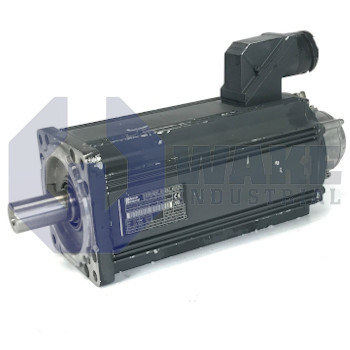

The Bosch Rexroth Indramat MHD093B-058-PP1-RN is a servo motor from the MHD Synchronous Motors series with a continuous torque at standstill of 17.5 Nm and a holding brake torque of 22.0 Nm. It features liquid cooling, an IP65 protection rating, and a keyed shaft with a shaft seal. The motor uses digital servo feedback with an integrated encoder and provides absolute position detection for more than 4096 revolutions.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD093B-058-PP1-RN is a servo motor produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. In industrial automation, it converts drive commands into controlled rotation for axes that require precise speed and position control. Integrated digital servo feedback and an absolute encoder support closed-loop operation, helping the motor maintain accurate motion in packaging, printing, and material-handling equipment. It is suited to applications that need repeatable indexing, smooth speed regulation, and stable feedback during frequent start-stop cycles.
Its electromagnetic package delivers a continuous standstill torque of 17.5 Nm, providing steady holding force while the axis remains energized at zero speed. Thermal energy is removed through liquid cooling, so rated output can be sustained without excessive surface heating. The housing carries an IP65 protection grade, which helps block dust and low-pressure water jets on factory floors. Mechanical alignment uses a 130 mm centering diameter with a 140/150 mm flange for mounting to standard machine interfaces. The stator uses winding code 058, and the insulation system meets Class F limits for winding temperatures up to 155 °C. A keyed shaft transfers torque to the driven machine, and the motor uses a right-side power connector for straightforward cable routing.
The built-in holding brake secures vertical or inertial loads with 22.0 Nm of static torque when drive power is removed. Accurate rotor position is derived from an absolute optical encoder with digital feedback, and the feedback system provides ± 0.5 angular minutes of accuracy while tracking more than 4096 revolutions. Reliable operation is permitted at ambient temperatures from 0 to 40 °C, with storage allowed from -20 °C to +80 °C and installation elevations up to 1000 m above sea level. The motor also uses a liquid-tight shaft seal and a B-length housing in the 093 frame size.
Frequently Asked Questions about MHD093B-058-PP1-RN:
Q: What cooling method is used in the MHD093B-058-PP1-RN servo motor?
A: This motor features liquid cooling for effective temperature management during operation.
Q: What level of environmental protection does the MHD093B-058-PP1-RN offer?
A: The MHD093B-058-PP1-RN provides an IP65 degree of protection, making it suitable for use in dusty and wet environments.
Q: Does the MHD093B-058-PP1-RN include a holding brake and what is its torque?
A: This model comes with a holding brake with a torque of 22.0 Nm for secure shaft holding during stoppage.
Q: What type of encoder and feedback system is provided in the MHD093B-058-PP1-RN motor?
A: It uses digital servo feedback with an integrated encoder and absolute position detection for over 4096 revolutions.
Q: What is the continuous standstill torque capability of the MHD093B-058-PP1-RN?
A: The continuous torque at standstill for this model is rated at 17.5 Nm.
