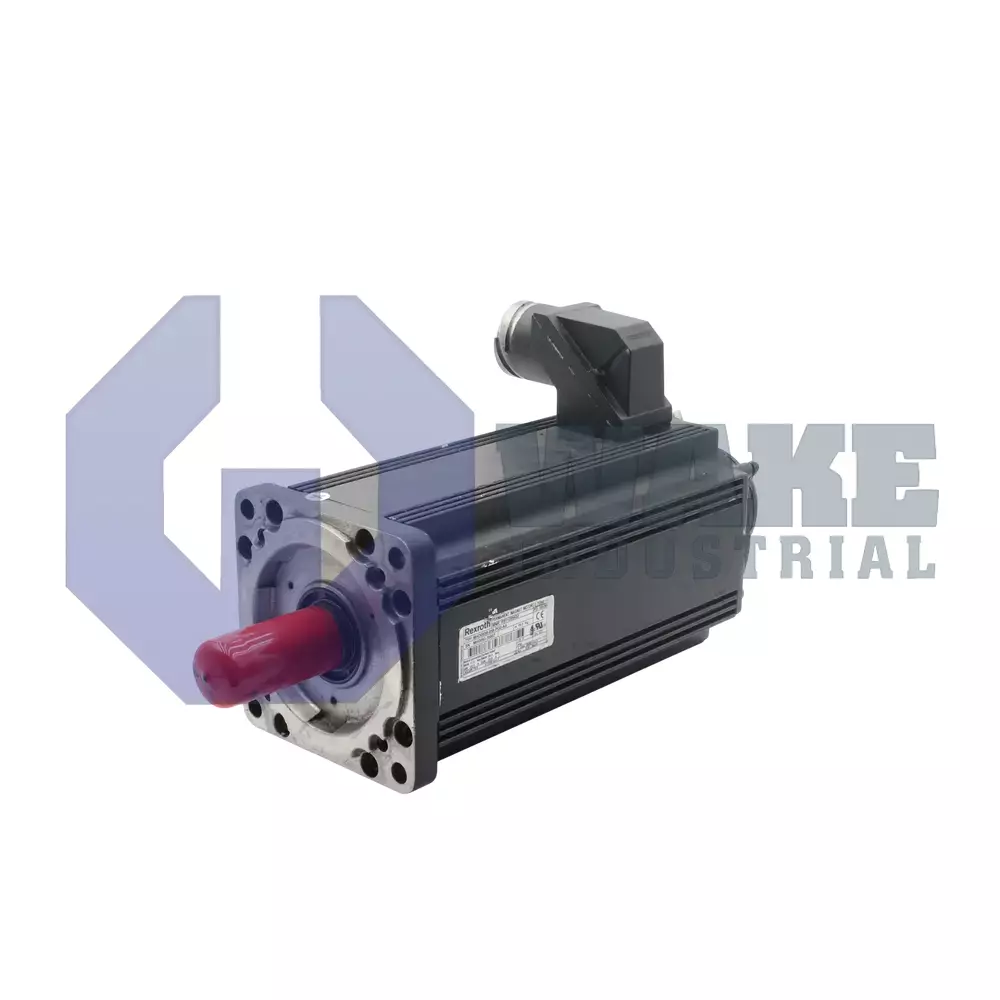

MHD093B-058-PP0-BN Bosch Rexroth Indramat

MPN: R911279037

No Tariffs On US Orders
  • Rated 4.5 (41 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
In-Stock, Ships 3-5 Days

Current response time:
5 Minutes 7 Seconds

Preparing your secure checkout page...

The Bosch Rexroth Indramat MHD093B-058-PP0-BN belongs to the MHD Synchronous Motors series and features a continuous torque at standstill of 17.5 Nm with a keyed shaft design. This motor measures 093 in size and uses liquid cooling for the housing, with a flange size of 140 or 150 mm and a centering diameter of 130 mm. It includes digital servo feedback with an integrated encoder for absolute position detection over more than 4096 revolutions.

Quote Request Form:

Warranty
Wake Industrial Warranty

To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The MHD093B-058-PP0-BN belongs to the MHD Synchronous Motors series from Bosch Rexroth Indramat. It is a permanent-magnet synchronous motor used in industrial automation for tightly controlled rotary motion in packaging lines, material-handling axes, and machining centers. By combining a compact frame with integrated feedback, the unit provides torque, speed, and position data directly to the drive controller, simplifying closed-loop control in multi-axis systems. Its rotor design also supports responsive acceleration and stable speed regulation during repeated motion cycles.

The motor supplies a continuous standstill torque of 17.5 Nm, so the axis can hold static loads without overheating when locked in position. Centering of the housing is performed by a 130 mm pilot diameter, which keeps the stator concentric with the machine frame and limits radial runout at the mounting face. Mounting holes are positioned on a 140 / 150 mm square flange, which provides compatibility with common bolt patterns used by gearboxes or bearing blocks. Heat generated in the copper windings is removed by liquid cooling, and the internal coolant jacket supports higher continuous output while keeping surface temperatures low. Electrical characteristics follow winding designation 058, which sets the rated voltage, resistance, and inductance values used by the matched drive module.

A keyed shaft transmits torque to couplings without slip, and the power leads exit on side B through an output connector so cabling can be routed away from the load side. Rotor angle is monitored by digital servo feedback, which delivers multirevolution position data to the drive. The system provides absolute position information for more than 4096 revolutions, so homing routines are unnecessary after power loss. With frame code 093 and length code B, the motor fits applications that need moderate inertia and medium power. Its proportions also help it fit machine layouts where axial space must remain controlled.

Centering diameter
130 mm
Continuous Torque at Standstill
17.5 Nm
Encoder Type
Digital servo feedback w/ integrated encoder
Flange size
140 / 150 mm
Housing Cooling Type
Liquid cooling
Motor Length
B
Motor Size
093
Power Connection Direction
to side B
Power ConnectionType
Output Connector
Shaft Design
Keyed Shaft
Type of Position Detection
Absolute (>4096 revolutions)
Winding Code
058
  • MHD093B058PP0BN
  • MHD093B 058 PP0 BN
  • mhd093b-058-pp0-bn
  • MHD93B-058-PP0-BN
Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Frequently Asked Questions about MHD093B-058-PP0-BN:

Q: What cooling method is utilized in the MHD093B-058-PP0-BN motor housing?

A: The MHD093B-058-PP0-BN uses liquid cooling for its housing, enhancing thermal management and operational efficiency.

Q: What type of encoder is included with the MHD093B-058-PP0-BN synchronous motor?

A: This motor is equipped with a digital servo feedback system featuring an integrated encoder.

Q: What is the position detection capability of the MHD093B-058-PP0-BN motor?

A: The MHD093B-058-PP0-BN provides an absolute position detection capability of more than 4096 revolutions.

Q: What is the continuous torque at standstill for the MHD093B-058-PP0-BN motor?

A: This model delivers a continuous torque at standstill of 17.5 Nm for reliable operation during static phases.

Q: What shaft configuration is provided on the MHD093B-058-PP0-BN motor?

A: The shaft design for the MHD093B-058-PP0-BN is keyed, allowing secure shaft-to-coupling connections.


Internal Product Review

  • ‘‘The MHD093B-058-PP0-BN is a Bosch Rexroth Indramat MHD synchronous motor with liquid cooling and a keyed shaft. Digital servo feedback with an integrated encoder and absolute position detection above 4096 revolutions support highly accurate motion control. Continuous standstill torque of 17.5 Nm gives the motor excellent low-speed authority for demanding servo applications.’’
