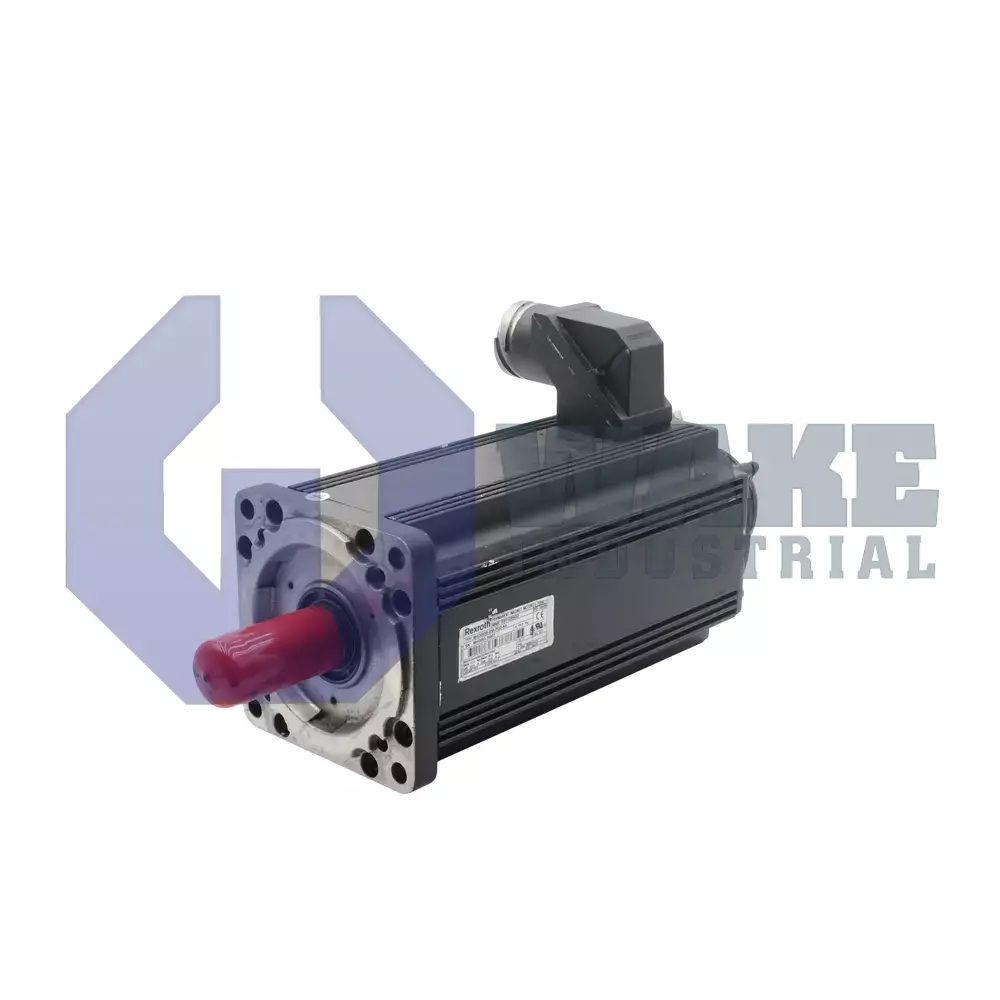

MHD093B-035-PP1-AA Bosch Rexroth Indramat

MPN: R911285240

No Tariffs On US Orders
  • Rated 4.5 (61 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
In-Stock, Ships 3-5 Days

Preparing your secure checkout page...

The Bosch Rexroth Indramat MHD093B-035-PP1-AA is a servo motor from the MHD Synchronous Motors series with a continuous torque at standstill of 17.5 Nm and a holding brake torque of 22.0 Nm. It features natural convection cooling and a keyed shaft with a shaft seal. The motor has a centering diameter of 130 mm and a flange size of 140 to 150 mm.

Quote Request Form:

Warranty
Wake Industrial Warranty

To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

Bosch Rexroth Indramat builds the MHD093B-035-PP1-AA as part of its MHD Synchronous Motors series. This unit is a permanent-magnet AC servo motor intended for closed-loop control of tooling heads, gantry drives, and conveyor sections in automated machinery. When paired with a compatible digital drive controller, it delivers precisely commanded torque and speed, allowing axis positions to be repeated with minimal following error across long production runs.

The motor supplies continuous torque at standstill of 17.5 Nm, which is the sustained torque it can apply without overheating when locked. The centering diameter of 130 mm aligns the housing precisely with the machine flange, while the square mounting interface is rated at 140 / 150 mm, giving designers two bolt-circle choices for the same frame. Heat is removed through natural convection, so no external blower or liquid circuit is required. A keyed shaft prevents slip between the motor and the driven element during high load reversals. Motor size 093 and length code B define the overall depth, and the power leads exit toward side A to simplify cabinet routing.

For dynamic stops or vertical axes, an electromechanical brake supplies 22.0 Nm of holding torque when the stator is de-energized. Position feedback is provided by an absolute (>4096 revolutions) measuring system, so the controller receives a unique multi-turn value at each cycle start. The winding code 035 fixes the coil impedance and back-EMF so drive amplifiers can predict current rise accurately. A factory-installed shaft seal blocks coolant or oil from reaching the encoder, maintaining the IP rating when the keyed interface passes through a gearbox. The molded output connector establishes a plug-in power path that reduces wiring time and keeps terminal blocks out of the motor’s airflow zone.

Centering diameter
130 mm
Continuous Torque at Standstill
17.5 Nm
Encoder Type
Digital multiturn absolute encoder
Flange size
140 / 150 mm
Holding Brake Torque
22.0 Nm
Housing Cooling Type
Natural convection
Insulation class
F
Mass
19 kg
Motor Length
B
Motor Size
093
Pole pairs
4
Power Connection Direction
to side A
Power Connection Type
Output Connector
Product Type
Servo Motor
Protection rating
IP65
Rotor moment of inertia
25.5 x10⁻⁴ kg·m²
Series
MHD
Shaft Design
Keyed Shaft
Shaft Seal
Yes
Theoretical max torque
66 Nm
Torque constant
1.5 Nm/A
Type of Position Detection
Absolute (>4096 revolutions)
Winding Code
035
Winding resistance
1.26 Ω
  • MHD 093B 035 PP1 AA
  • MHD 093B-035-PP1-AA
  • MHD-093B-035-PP1-AA
  • MHD093B-035-PPI-AA
  • MHD093B035PP1AA
  • MHDO93B-O35-PP1-AA
  • MHD093B 035 PP1 AA
  • mhd093b-035-pp1-aa
  • MHD93B-035-PP1-AA
  • MHD93B-35-PP1-AA
  • mhd093b035pp1aa
  • MHDO93B-035-PP1-AA
  • MHD0938-035-PP1-AA
  • MHD093B-O35-PP1-AA
  • MHD093B-03S-PP1-AA
  • MHDO938-O3S-PPI-AA
  • MHD093B-35-PP1-AA
  • MHD093B035-PP1-AA
  • MHD093B-035PP1-AA
  • MHD093B035PP1-AA
  • MHD093B-035-PP1AA
  • MHD093B035-PP1AA
  • MHD093B-035PP1AA
Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the acceleration torque required to accelerate a load in a servomotor system. Enter the total inertia and angular acceleration, then click "Calculate Acceleration Torque" to see the result.

The acceleration torque is calculated using the formula: T_acc = J_total * α, where:

  • T_acc is the acceleration torque (Nm)
  • J_total is the total inertia of the system (kg·m²)
  • α (alpha) is the angular acceleration (rad/s²)

The total inertia (J_total) should include both the motor inertia and the load inertia reflected to the motor shaft.

Understanding Acceleration Torque

Acceleration torque is essential in defining the capability of a servomotor to initiate rotational motion. It's the torque required to overcome inertia and achieve a desired angular acceleration. In servomotor systems, proper torque calculation ensures optimal performance, preventing motor strain and energy inefficiency.

Importance for Industrial Automation

In industrial automation, precise motion control is vital. Calculating acceleration torque enables designers to choose suitable motors that meet dynamic motion demands, essential for the smooth operation of automated systems. This consideration enhances efficiency and prolongs motor lifespan in applications such as robotic arms and precision manufacturing equipment.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to compute the control output for a PID controller in a servomotor system. Enter the PID gains (Kp, Ki, Kd), the current error, and the time step, then click "Calculate Control Output" to see the result.

The calculation uses the PID control law: u(t) = Kp * e(t) + Ki * ∫e(t)dt + Kd * de(t)/dt, where:

  • u(t) is the control output (e.g., motor voltage)
  • e(t) is the error (desired position - actual position)
  • Kp is the proportional gain
  • Ki is the integral gain
  • Kd is the derivative gain

Note: This calculator provides a simplified single-step calculation. In a real system, the PID controller would run continuously, updating the control output at each time step.

Understanding PID Controllers

PID controllers are essential in control systems, offering a way to regulate processes through feedback loops. They adjust control inputs based on the error between desired and actual outputs. The proportional term addresses present errors, the integral term corrects accumulated past errors, and the derivative term predicts future errors, enabling precise control.

Importance in Servo Systems

In servomotor applications, PID controllers ensure precise movement and positioning, which is crucial for industrial automation. By continuously adjusting the control signal (e.g., motor voltage), they maintain the desired position despite external disturbances or changes in system dynamics.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Instructions

Use this calculator to convert between different units of power. Select the units you want to convert from and to, enter the value, and click "Convert" to see the result.

Understanding Power Units

Power is a foundational concept in both everyday life and industrial applications. The term "watts" is ubiquitous, named after James Watt, a pivotal figure in the industrial revolution known for his advancements in steam engine technology. A watt represents the rate at which energy is transferred or converted and forms the basis for other power units such as kilowatts (1,000 watts), megawatts (1,000,000 watts), and more.

Importance in Industrial Automation and Servomotors

In industrial automation, precise power control is critical for maximizing efficiency and accuracy. Servomotors, essential components in automation systems, rely heavily on accurate power measurement. These motors, often used in robotics and CNC machinery, require specific power inputs to function correctly, translating electrical energy into controlled movements. The ability to convert between different power units helps engineers and technicians optimize these systems for energy consumption and performance. Whether ensuring that a robotic arm operates with sufficient power or managing the electrical requirements of a complex assembly line, understanding and converting power units is a crucial skill.

As technology advances, the necessity for precision grows. Power conversion tools, therefore, play an indispensable role in maintaining system efficiency and reliability, making them a staple in the toolkit of modern engineers and industrial technicians.

Frequently Asked Questions about MHD093B-035-PP1-AA:

Q: What is the continuous torque at standstill for the MHD093B-035-PP1-AA motor?

A: The MHD093B-035-PP1-AA provides a continuous torque at standstill of 17.5 Nm.

Q: How is the MHD093B-035-PP1-AA motor cooled?

A: This model uses natural convection for housing cooling, operating without fans or liquid cooling.

Q: What type of shaft design does the MHD093B-035-PP1-AA motor use?

A: The MHD093B-035-PP1-AA features a keyway shaft design with a shaft seal for improved mechanical coupling and protection.

Q: What type of position detection is provided by the MHD093B-035-PP1-AA?

A: An absolute position detection system capable of more than 4096 revolutions is used in this motor.

Q: What is the holding brake torque of the MHD093B-035-PP1-AA?

A: The holding brake on this model supplies 22.0 Nm of torque.


Internal Product Review

  • ‘‘The MHD093B-035-PP1-AA is a Bosch Rexroth Indramat synchronous servo motor featuring a keyed shaft with a shaft seal for secure and reliable mechanical coupling. With a continuous torque at standstill of 17.5 Nm and natural convection cooling, this motor delivers dependable performance in demanding automation environments. Its absolute position detection capability ensures precise control, making it a strong choice for high-performance motion systems.’’
