Product Description:

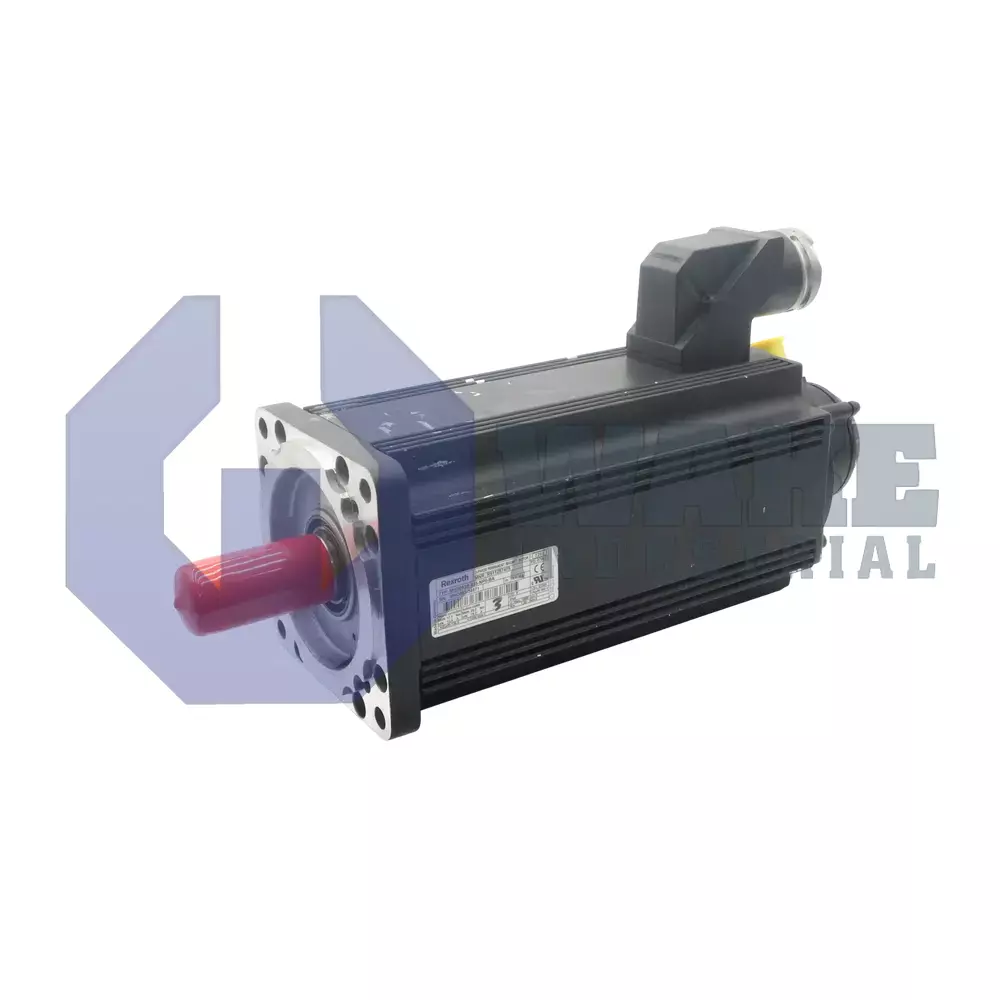

The MHD093B-035-NP0-BA is a servo motor manufactured by Bosch Rexroth Indramat as part of the MHD Synchronous Motors series. Designed for closed-loop motion axes, it converts drive current into tightly controlled rotary displacement and supplies consistent torque for packaging, printing, and material-handling equipment. Integration with digital drives allows the unit to function as a precise actuator in industrial automation where repeatable positioning and rapid cycle sequences are required. Because the drive closes the control loop, the motor can support steady speed regulation as well as accurate point-to-point motion under changing loads.

A centering pilot of 130 mm aligns the housing concentrically, while the square flange spans 140 / 150 mm so standard ISO mountings can be used. The stator windings labeled 035 correspond to the electrical characteristics expected by the matching drive, and during continuous stall the rotor can deliver 17.5 Nm of torque without exceeding thermal limits. Heat is removed through natural convection, so airflow around the fins must remain unobstructed instead of relying on forced cooling. Accurate flange alignment also helps reduce mounting stress and coupling misalignment during operation, especially on axes that cycle frequently.

The shaft encoder uses digital servo feedback (HSF) to relay incremental data, and the drive interprets that data as a relative position reference for homing routines and electronic gearing. This feedback arrangement helps the control system correct position error quickly during acceleration and deceleration. Power leads exit toward side B through an output connector, which helps route cables in compact machine spaces. A keyed shaft transmits torque without slippage, and a shaft seal helps keep lubricant away from internal motor components. The motor ships without a holding brake, has length code B, and uses frame size 093.
