MHD093A-024-NG1-BA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299305
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
1 Seconds

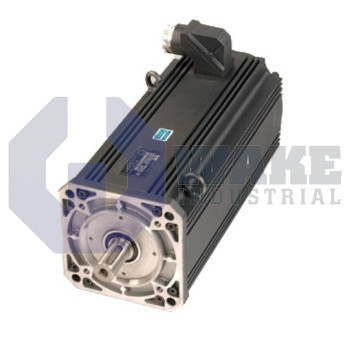

The Bosch Rexroth Indramat MHD093A-024-NG1-BA is a servo motor from the MHD Synchronous Motors series featuring a plain shaft with shaft seal and a centering diameter of 130 mm. It is fitted with a holding brake capable of 22.0 Nm torque, uses digital servo feedback for position detection, and is protected to IP65. The motor provides a continuous torque at standstill of 12.0 Nm and has natural convection cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD093A-024-NG1-BA is a servo motor produced by Bosch Rexroth Indramat and belongs to the MHD Synchronous Motors series. It uses motor size 093 with length code A, giving it a compact profile for multi-axis assemblies in industrial automation. Power is delivered through an output connector on side B, and motion is transferred by a plain shaft. Relative position data allows the drive to recover absolute machine coordinates after a reference move, supporting closed-loop speed and position control in packaging lines, pick-and-place modules, and similar equipment.
The motor can deliver a continuous standstill torque of 12.0 Nm. Its 140 / 150 mm flange pattern and 130 mm centering diameter support accurate alignment on the machine frame. A degree of protection of IP65 helps keep dust and low-pressure water spray away from internal parts. Heat is removed by natural convection, eliminating the need for external fans or liquid circuits. Rotor position is reported through digital servo feedback (HSF), which provides high-resolution data directly to the drive controller. An optically scanned code disk sends incremental phase information to the evaluation electronics, helping the drive maintain stable speed control under varying load.
The integrated holding brake secures static loads with a torque of 22.0 Nm, and its coil uses insulation class F for winding temperatures up to 155 °C. System positioning error is limited to ± 0.5 angular minutes, which supports repeatable motion on precise axes. Operation is permitted from 0 to 40 °C, storage is permitted from −20 to +80 °C, and installation is allowed up to 1000 m above mean sea level. A shaft seal helps protect the output end from dust and splashed fluids. The electrical design uses winding code 024, which matches the electrical characteristics expected by compatible drives.
Frequently Asked Questions about MHD093A-024-NG1-BA:
Q: What is the continuous torque at standstill for the MHD093A-024-NG1-BA motor?
A: This model provides 12.0 Nm of continuous torque when stationary.
Q: Does the MHD093A-024-NG1-BA motor include a holding brake and what is its torque?
A: The MHD093A-024-NG1-BA motor comes equipped with a holding brake offering a braking torque of 22.0 Nm.
Q: What type of encoder feedback does the MHD093A-024-NG1-BA utilize?
A: This motor uses digital servo feedback (HSF) for position detection via an optical measurement method.
Q: What level of protection does the MHD093A-024-NG1-BA motor offer against environmental factors?
A: The MHD093A-024-NG1-BA achieves an IP65 degree of protection against dust and water.
Q: How is the housing of the MHD093A-024-NG1-BA motor cooled?
A: Natural convection is used for cooling the housing of this motor model.
