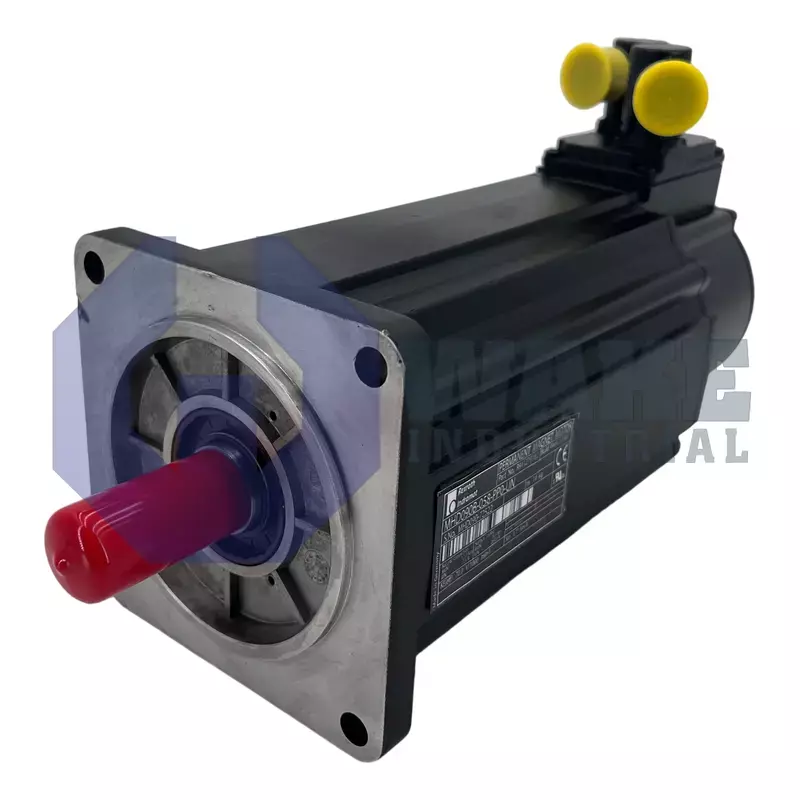

MHD090B-058-PP0-UN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Digital servo feedback with integrated multiturn absolute encoder along with a Motor Frame Size number of 140mm Flange Size, 110mm Centering Diameter.

MHD090B-058-PP0-UN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Digital servo feedback with integrated multiturn absolute encoder along with a Motor Frame Size number of 140mm Flange Size, 110mm Centering Diameter.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MHD090B-058-PP0-UN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is the leading motion control company in the market, catering to a massive number of clients with its innovative solutions. This firm is known for introducing novel technologies time to time and maintaining a strong research profile, making it a highly trusted brand by consumers.

The MHD Synchronous Motors range by Bosch Rexroth is one of its most popular group of products. Developed specifically for high-end industrial applications such as machining and robotics, it comprises an assortment of permanent magnet brushless motors that boast the quality German engineering is known for.

The MHD090B-058-PP0-UN is a medium-torque variant from the MHD series. It can be purchased either as a naturally cooled structure that simply utilizes natural convective cooling, or an advanced surface cooled structure that includes an air blower that introduces forced convection and is better at controlling temperature.

If the naturally cooled variant is opted for, customers have to choose between the 60K and 100K versions. Respectively, they offer a rated torque of 4.2Nm and 8.9Nm, and a rated performance of 2.1kW and 4.9kW. If the surface cooled version is chosen, the specifications include a rated torque of 13.4Nm and rated performance of 7.0kW.

The MHD090B-058-PP0-UN motors all have a nominal speed of 4,000 RPM and operate at a rated frequency of 267 Hz. Its core is built from 4 poles, which ensures smooth power delivery and better controllability. This motor is remarkably light-weight with a mass of only 14 kg, allowing engineers to conveniently move it across their floors.

For feedback to the drive controller, this motor comes incorporated with an absolute multiturn encoder with digital servo feedback. The multiturn ability means that it keeps a record of how many revolutions have taken place in total, and what position the shaft is in currently within each revolution.

The driveshaft also comes machined with a keyway as per the DIN 6885-1 standard.

The MHD090B-058-PP0-UN Synchronous Motor by Bosch Rexroth is a must-buy motion control product that can help you optimize your industrial processes and get the most out of your resources!

  • MHD 090B 058 PP0 UN
  • MHD 090B-058-PP0-UN
  • MHD-090B-058-PP0-UN
  • MHD090B058PP0UN
  • MHDO9OB-O58-PPO-UN

MHD090B-058-PP0-UN Technical Specifications

Product Group: MHD
Motor Frame Size: 140mm Flange Size, 110mm Centering Diameter
Motor Frame Length: 12.0 Nm
Winding Code: 058
Motor Encoder: Digital servo feedback with integrated multiturn absolute encoder
Output Shaft: Shaft with keyway according to DIN 6885-1 (with shaft sealing ring)
Holding Brake: Without holding brake
Output Direction of Power Connector: Power and feedback connectors turnable within a range of 270 degrees
Housing Type: For liquid cooling
