MHD090B-035-PP1-UN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Digital servo feedback with integrated multiturn absolute encoder along with a Motor Frame Size number of 140mm Flange Size, 110mm Centering Diameter.

MHD090B-035-PP1-UN

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
MHD Series Synchronous motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Motor Encoder of Digital servo feedback with integrated multiturn absolute encoder along with a Motor Frame Size number of 140mm Flange Size, 110mm Centering Diameter.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a MHD090B-035-PP1-UN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

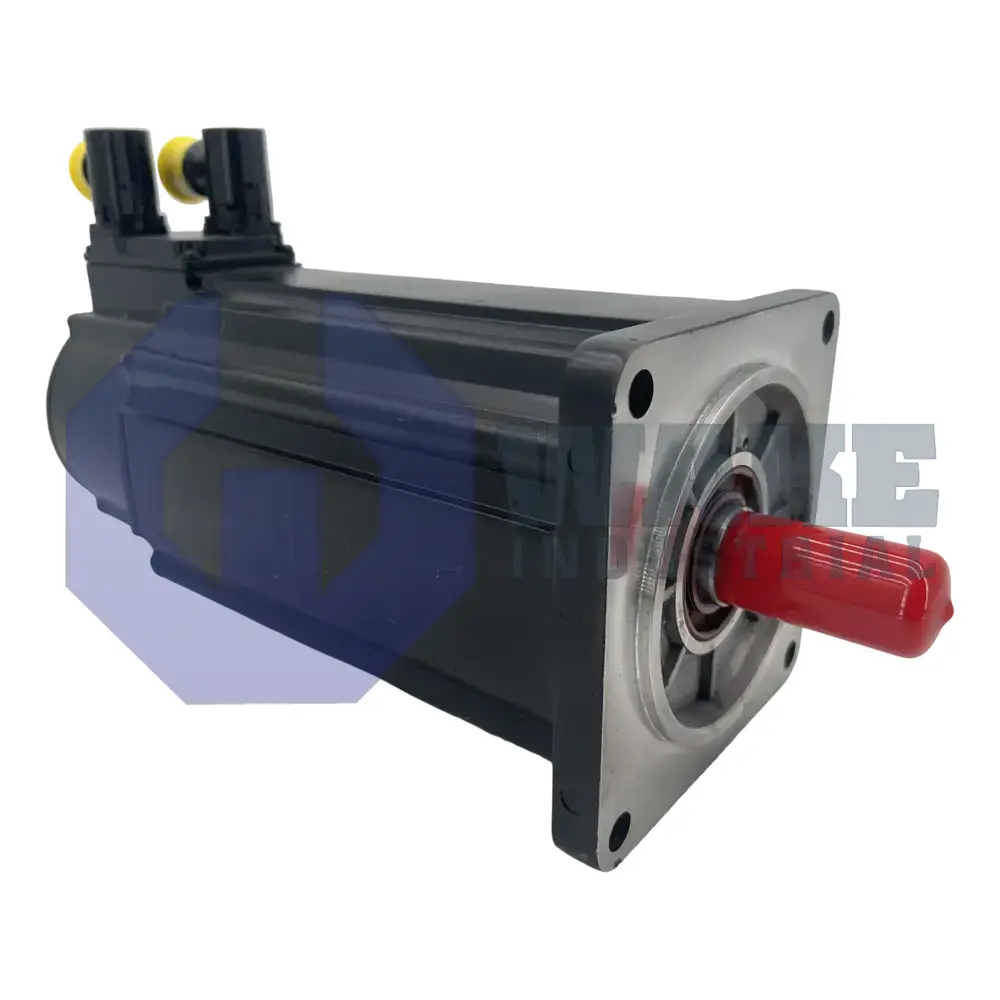

The MHD090B-035-PP1-UN is a servo motor manufactured by Bosch Rexroth Indramat. It is a MHD Synchronous Motors that comes with a motor frame size of 140mm Flange Size, 110mm Centering Diameter. Its motor frame length stands at 12Nm with a winding code of 35. Both the motor frame size and frame length allow the continuous torques at a standstill which are essential as they enable mechanical motor dimension and outline the electric motor output.

The MHD090B-035-PP1-UN motor comes with digital servo feedback with integrated multiturn absolute encoder. The shaft comes with a sealing ring and has a keyway according to DIN 6885-1. The winding code is favorable as it ensures that your motor can control speed and positioning, which makes it perform adequately in line with the drive controller information required. The synchronous motor is recommended for applications that demand both speed and power.

The MHD090B-035-PP1-UN has a holding brake with a capacity of 22Nm and has an installed Output Direction of Power Connector that allows feedback connectors turnable within a range of 270 degrees. The holding brake is essential since it allows the clamping of the servo axis when the application being used is in a de-energized state. The MHD090B-035-PP1-UN operates on a highly electrically capacity where the magnetic forces act upon the brake armature disk which leads to closing and holding of the axis. The presence of a holding brake in this synchronous motor makes it unique since not all motors classified in the MHD synchronous family have it. The housing type allows liquid cooling, which is convenient since liquids are generally available at a global capacity. It is a suitable synchronous motor that will definitely leave an impressive mark in meeting your needs.

  • MHD 090B 035 PP1 UN
  • MHD 090B-035-PP1-UN
  • MHD-090B-035-PP1-UN
  • MHD090B-035-PPI-UN
  • MHD090B035PP1UN
  • MHDO9OB-O35-PP1-UN

MHD090B-035-PP1-UN Technical Specifications

Product Group: MHD
Motor Frame Size: 140mm Flange Size, 110mm Centering Diameter
Motor Frame Length: 12.0 Nm
Winding Code: 035
Motor Encoder: Digital servo feedback with integrated multiturn absolute encoder
Output Shaft: Shaft with keyway according to DIN 6885-1 (with shaft sealing ring)
Holding Brake: 22,0 Nm holding brake
Output Direction of Power Connector: Power and feedback connectors turnable within a range of 270 degrees
Housing Type: For liquid cooling
