Product Description:

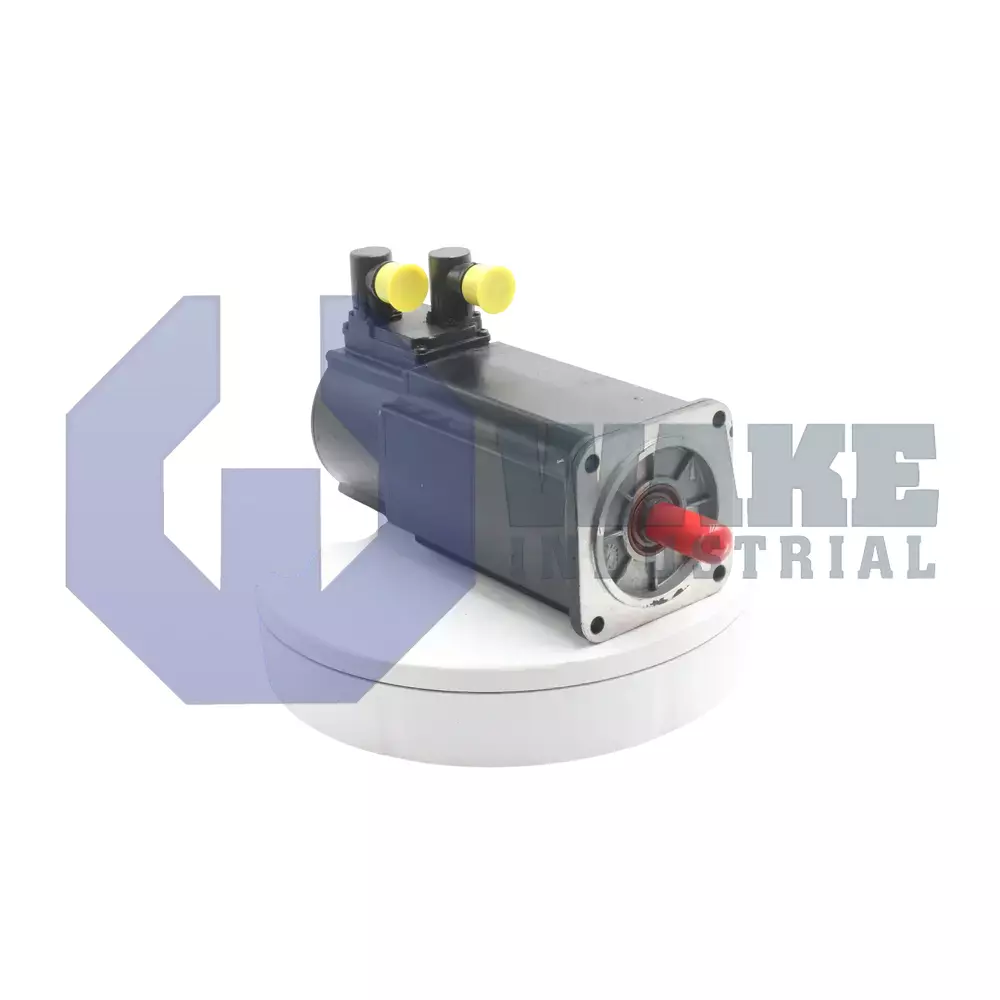

The MHD071B-061-PG3-UN is a servo motor manufactured by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It serves as a drive element in automated machining centers, pick-and-place axes, and packaging stations where closed-loop torque and speed control are required. As a synchronous servo motor, it converts commanded current into controlled rotary motion for positioning and speed-regulated tasks. Its integrated encoder provides real-time position feedback for motion controllers that coordinate multi-axis operations in industrial automation cells.

The motor uses size 071 stator laminations and the B length code to keep the housing compact while still delivering a continuous standstill torque of 8.0 Nm. A centering diameter of 95 mm fits common machine mounting features, and a flange size of 115 mm provides a rigid face-mounting interface. Heat from the 061 winding set is removed by liquid cooling, which supports high power density during continuous operation. Rotor position and velocity are measured by digital servo feedback, allowing the drive to monitor motion directly during acceleration, deceleration, and holding. The winding code 061 corresponds to electrical values matched to the intended drive family, and the housing includes a shaft seal to help keep lubrication inside the machine envelope.

An integrated holding brake supplies 10.0 Nm of static torque to lock the shaft when power is off, and the mechanical interface uses a plain shaft so couplings or pulleys can be mounted without a key. Absolute position detection over 4096 revolutions allows the system to retain position information after power cycling, which reduces the need for homing on startup. The power connector can be rotated through 270°, which helps route cables in tight machine spaces or around nearby structures. This arrangement supports cleaner cable entry in compact installations while preserving access to the motor connections.
