MHD071B-061-NG0-UN

  • Rated 4.7 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911273948
  • Stock: In-Stock, Ships 1-2 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

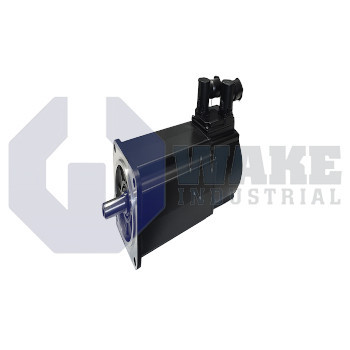

The MHD071B-061-NG0-UN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 61 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Not Equipped with a holding brake.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

MHD071B-061-NG0-UN

  • Rated 4.7 (7 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911273948
  • Stock: In-Stock, Ships 1-2 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The MHD071B-061-NG0-UN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 61 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Not Equipped with a holding brake.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a MHD071B-061-NG0-UN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

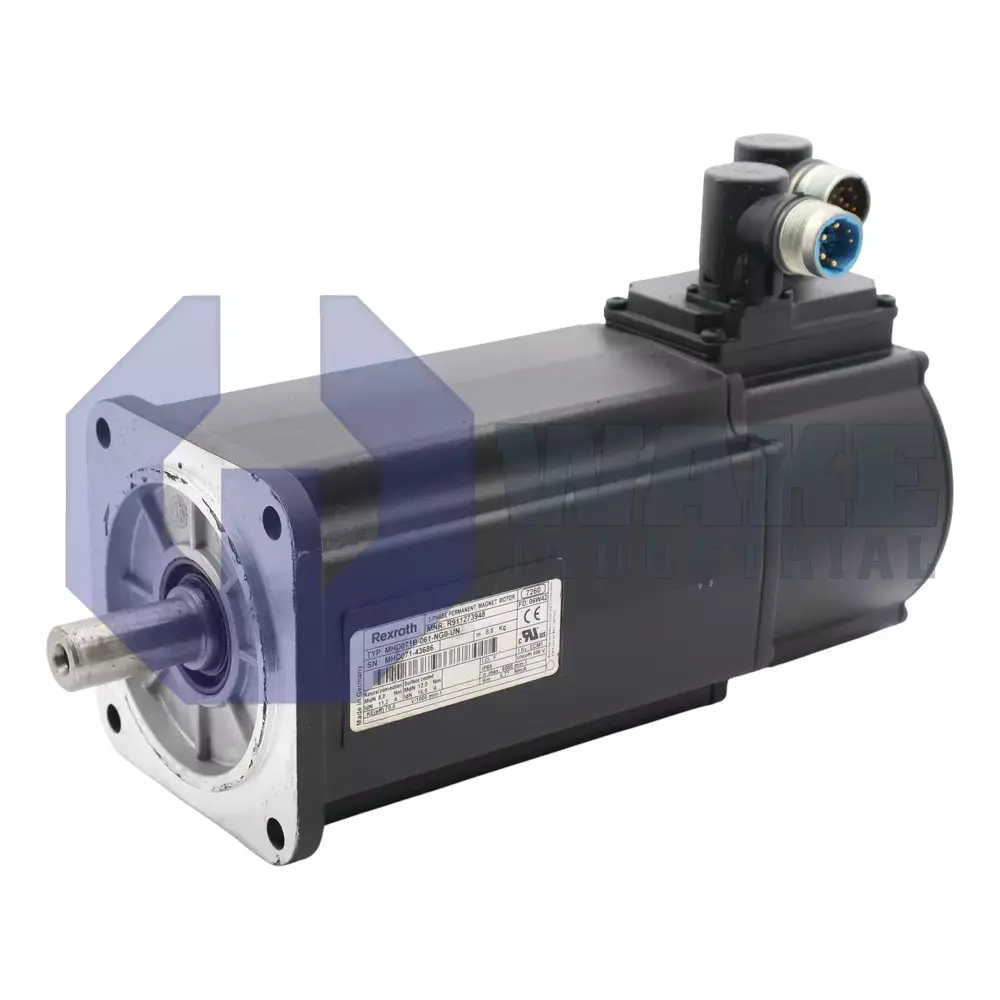

The MHD071B-061-NG0-UN synchronous motor is manufactured by Rexroth Indramat. It falls under the MHD product group and features a natural convection cooling system, plain shaft with a sealing ring, digital servo feedback, 061 winding code, and motor size of 071. You can connect an optional sealing air connector by replacing the motor flange socket cover. With it, there is overpressure inside the motor that prevents entry of aggressive coolants, oils, and other similar substances from entering. The motor is ideal for three mounting positions.

They are IM B5 (drive side pointing sideways), IM V1 (drive side pointing down), and IM V3 (drive side pointing up). The prime coat that protects the housing is resistant to weathering, coloring, chalking, and diluted acids. During transport, ensure the MHD071B-061-NG0-UN is free from shock by providing a shock-absorbing support. You should transport it only in a horizontal position to avoid damage. Like other MHD motors, it presents you benefits such as easy cabling, simple and quick startup, overload protection thanks to the temperature monitoring feature, ability to withstand aggressive environmental conditions, and high overload capability. The MHD071B-061-NG0-UN is a permanent-magnet motor with electronic commutation. The special magnet materials allow it to be designed with low inertia mass.

The ambient and operating conditions of this Rexroth Indramat motor include a maximum setup height of 1000 meters above sea level, a permissible operating temperature of 0 to 40 degrees, and a storage/transport temperature of -20 to 80 degrees. The MHD071B-061-NG0-UN weighs 8.8 kg, has a maximum speed of 6000 rpm, and a protection category of IP 65. It comes with a one year warranty and you can get it from Wake Industrial.

MHD071B-061-NG0-UN Documents

  • MHD071B061NG0UN
  • MHD071B 061 NG0 UN
  • mhd071b-061-ng0-un
  • MHD71B-061-NG0-UN

MHD071B-061-NG0-UN Technical Specifications

Driven Shaft: Plain
Weight : 8.8Kg
Characteristic Motor speed: 4500min-1
Maximum Current: 50.5A
Torque constant at 200C: 0.77Nm/A
Voltage constant at 200C: 70V/1000min-1
Winding Inductivity: 7.2mH
Number of pole pairs : 4
Rated Freqency: 333Hz
Moment of inertia of the rotor: 8.4 ×10-4Kgm2

Frequently Asked Questions about MHD071B-061-NG0-UN


Q: What is the sealing air connection accessories of the MHD071B-061-NG0-UN designed for?

A: The sealing air connector acessories are designed to allow the introduction of over pressured air into the motor housing. This prevents penetrating oils, and other liquid from entering the motor housing. The use of overpressued air increases the motor protection category to IP68.

Q: Is the MHD071B-061-NG0-UN delivered with the cables required for electrical connections?

A: Plugs and cables are not included in the scope of delivery of this industrial motor. Customers must order for these additional acessoires as separate sub-units.

Q: Is the MHD071B-061-NG0-UN suitable for applications that require shock loading?

A: The MHD071B-061-NG0-UN can handle industrial applications that involve shock loads as are typically occuring in the case of presses, punches or press inlets. However the motor must be first installed in a shock absorbed or shock-decoupled way.

Q: What is the recommended installation position for the MHD071B-061-NG0-UN?

A: The recommended installation position for the MHD071B-061-NG0-UN is the B05 design. This installation design allows for the horizontal or vertical installation of the industrial motor.

Q: What type of protection does the black coating on the MHD071B-061-NG0-UN provide?

A: The coating of the MHD071B-061-NG0-UN industrial motor is resistant against corrosive liquid substances such as dilute acids, dilute alkali, mineral oil and water. This coating also provides resistance against coloring, weather, and chalking.
