Product Description:

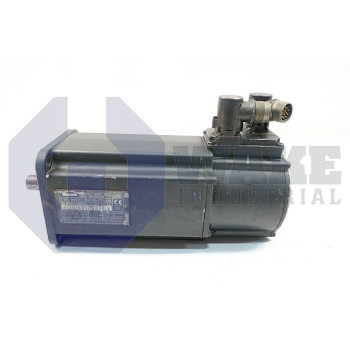

The MHD071B-035-PP1-UN is a servo motor manufactured by Bosch Rexroth Indramat for the MHD Synchronous Motors series. It provides electrically commutated torque and integrated position feedback, allowing controllers to execute repeatable moves in pick-and-place lines, gantry axes, and other industrial automation stations that need tightly coordinated rotary motion. This motor is suited for closed-loop positioning tasks where stable speed control and accurate stopping behavior are required throughout repeated operating cycles. It can be paired with a compatible drive to support synchronized motion in indexing, transfer, and handling equipment.

This model can hold a continuous shaft load of 8.0 Nm at standstill, which is the continuous torque available under rated thermal conditions. Stator heat is removed by liquid cooling, so the motor can sustain output in enclosed installations where air circulation is limited. Dimensional alignment uses a centering pocket of 95 mm and a square mounting flange of 115 mm, providing a direct interface to gearboxes or machine plates. Rotor position is measured by digital servo feedback integrated into the housing, and the B-length frame supports balanced dynamic response for medium-inertia motion axes.

An integrated brake rated at 5.0 Nm holds the rotor when power is removed, and absolute multi-turn feedback with more than 4096 revolutions allows retained position data after power-up without a homing cycle. The output side uses a keyed shaft, and a shaft seal helps limit the entry of dust or coolant around the shaft area. This shaft arrangement supports couplings that require positive torque transfer without slip during acceleration or deceleration. Power and feedback connections are rotatable through a range of 270°, which helps route cables cleanly in compact machine spaces and reduces strain where connector orientation is restricted.
