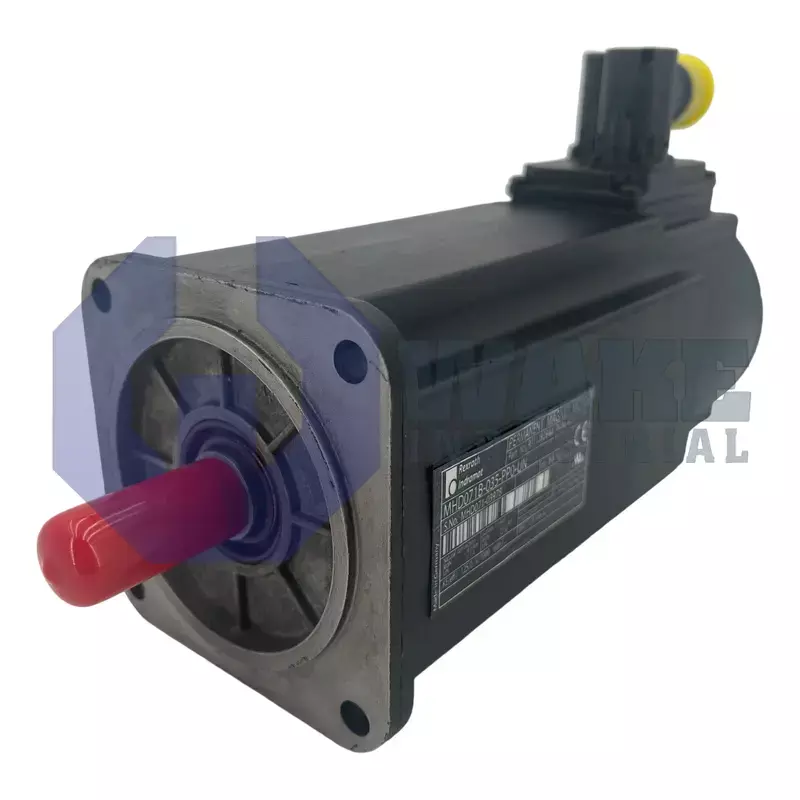

MHD071B-035-PP0-UN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911282844
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
31 Seconds
The Bosch Rexroth Indramat MHD071B-035-PP0-UN is a servo motor from the MHD Synchronous Motors series, featuring a keyed shaft and liquid cooling housing. It has a continuous torque at standstill of 8.0 Nm, a flange size of 115 mm, and a centering diameter of 95 mm. The motor uses digital servo feedback with an integrated encoder for absolute position detection over more than 4096 revolutions and does not include a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat's MHD071B-035-PP0-UN belongs to the MHD Synchronous Motors series and serves as a servo motor for precise axis control in industrial automation cells, gantries, and packaging machinery. Its electromechanical design matches compatible drive controllers, allowing closed-loop speed and torque regulation while maintaining a compact profile suited for cabinet or machine-frame installation. It is intended for coordinated motion tasks that require accurate positioning and stable response during repeated operating cycles.
The motor delivers a continuous standstill torque of 8.0 Nm, giving enough holding force for moderate load envelopes without overheating. A centering diameter of 95 mm aligns the housing on machine flanges, and the mounting interface follows a square pattern with a 115 mm flange size. Heat generated in the stator windings is removed by liquid cooling, so full rated output remains available even when ambient temperatures are high. Because the unit is supplied without a holding brake, position retention during power-off requires an external mechanical lock. The motor has size code 071 and length code B, while winding code 035 indicates the electrical configuration. The output shaft is fitted with an integral seal that helps keep contaminants away from the bearing area.
Feedback is handled by digital servo feedback that supports absolute position reporting across more than 4096 revolutions, permitting single-turn and multi-turn positioning without homing. Power and signal leads are routed through rotatable connectors, and the power plug can be oriented through 270° to simplify cable runs inside tight enclosures. The keyed shaft provides slip-free coupling to pulleys or gearboxes, and both power and feedback connectors share a common housing for a compact cable interface.
Frequently Asked Questions about MHD071B-035-PP0-UN:
Q: What is the continuous torque at standstill for the MHD071B-035-PP0-UN motor?
A: This model provides a continuous torque at standstill of 8.0 Nm.
Q: What type of cooling does the MHD071B-035-PP0-UN synchronous motor use?
A: The housing on this motor uses liquid cooling for effective heat dissipation.
Q: What kind of shaft design does the MHD071B-035-PP0-UN motor have?
A: A keyed shaft is included on the MHD071B-035-PP0-UN for mechanical power transmission.
Q: What type of encoder is found in the MHD071B-035-PP0-UN motor?
A: This motor is equipped with digital servo feedback and an integrated encoder for precise control.
Q: How adjustable is the power connection direction on the MHD071B-035-PP0-UN?
A: The power connection on this model is turnable within a range of 270° for flexible cable management.
