Product Description

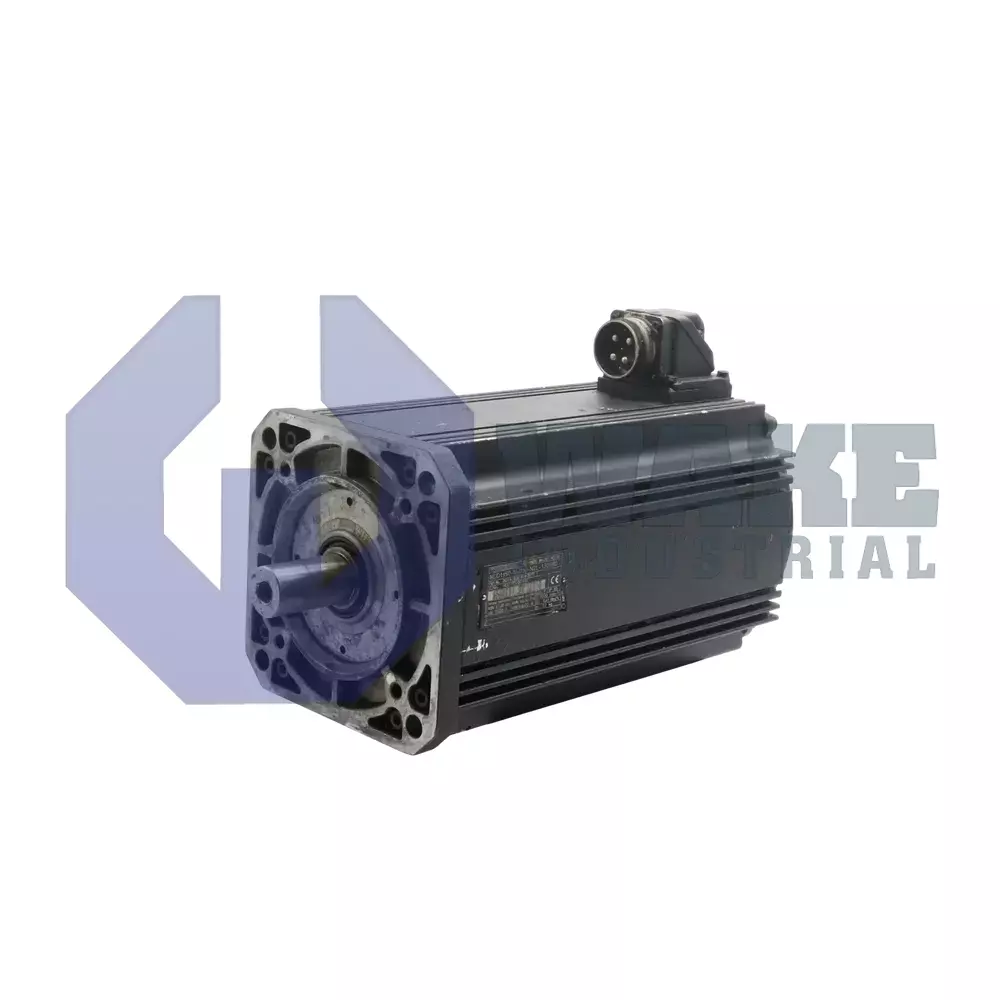

The Bosch MDD115C-N-030-N2L-130PA0 is a synchronous servo motor. As per the product type code, the motor frame size is 115 and the frame length is C. The mounting flange is designed so that mounting as per Design B5, i.e., a mounting flange with throughholes, is possible. Mounting mode as per Design B14, i.e., mounting flange with threads, is possible for MDD115 motors. When the motors are mounted in orientations where the shaft points upwards, it is necessary to prevent liquids from collecting at the output shaft over extended periods of time. Even the use of a shaft sealing does not absolutely prevent liquids from penetrating, along the output shaft, into the motor housing. The MDD115C-N-030-N2L-130PA0 motor has a shaft with a keyway. This type of shaft achieves a form-fitting torque transmission. This type of shaft-hub connection is suitable for lesser demands.

A multi-axial stress state occurs at the shaft-hub connection as a result of torsion, bending, radial and axial loads. It is possible, during powerful reverse operations, for the bottom of the key to turn out and reduce the quality of concentricity. Ever-increasing deformation can cause fractures. The use of plain shaft ends with non positive connections is therefore recommended. The housing of the MDD115C-N-030-N2L-130PA0 is suited to natural convection and surface cooling. The working temperature range is 0 to 45 degrees Celsius. Speed rating of the MDD115C-N-030-N2L-130PA0 motor is 3000 RPM. The servo motor supports digital servo feedback. Its centering diameter is 130 millimeters. The motor does not include a holding brake. The power cable connects to a power socket on side A of the housing. Trained and experienced personnel should handle the motor.
