Product Description

Bosch Rexroth is a manufacturer of products that enhance the performance of a system. Due to its comprehensive product offering, the company is a one-stop shop for all industrial automation needs.

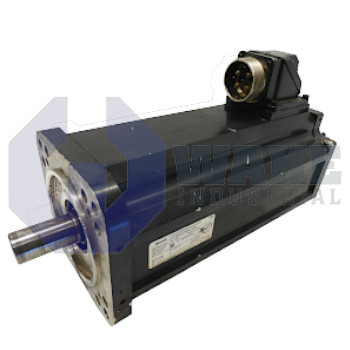

The MDD093C-F-020-N2L-110GA0 model is equipped with an A-side power connection and has a rapid thermal time constant when liquid-cooled. Due to its brushless construction and smooth bearings, it is believed that the motor would have a long lifespan. This 22-kilogram MDD093C AC servo motor can continuously create a high torque with a low continuous current consumption at standstill operation during liquid cooling. The motor has a maximum output torque of 60.6 Newton meters and a maximum speed of 2,000 revolutions per minute. The conduit threaded connection of the motor's power connection must be equipped with strain reliefs for interference-free operation. Transport and storage of the motor must take place between -20 and +80 degrees Celsius. The model's centering diameter is 110 mm and its balancing class is N. The model is constructed with electrical commutation and permanent magnets. The MDD093C AC servo motor must be used in conjunction with the drive controller and accessories recommended by the manufacturer.

The model MDD093C-F-020-N2L-110GA0 features an insulation grade of F and a sealing ring on the plain output shaft. The motor has an IP65 rating, making it resistant to dust and moisture. The first number indicates dust protection, while the second indicates liquid protection. To get the required amounts of power, the model must be used in temperatures ranging from 0 to 45 degrees Celsius and altitudes between 0 and 1000 meters. There is a standard one-year warranty on this efficient servo motor (MDD093C-F-020-N2L-110GA0) from Wake industrial.
