Product Description:

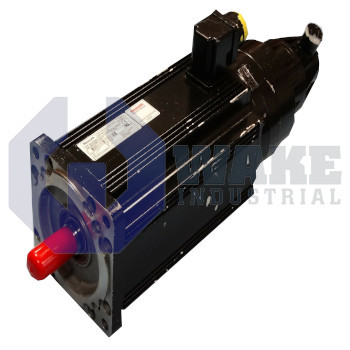

The MAC090B-0-JD-4-C-130-B-0-WI518LV-S003 is an AC servo motor manufactured by Bosch Rexroth Indramat within the MAC AC Servo Motors series. Designed as a motor for analog drives, it transforms drive amplifier current into precisely controlled rotation for automated handling, indexing, and auxiliary motion axes. The unit supports velocity or position loops by providing electrical feedback while delivering the mechanical output needed to actuate tooling or conveyors in industrial equipment.

At the mechanical interface, the motor uses a centering diameter of 130 mm, which helps maintain coaxial alignment with mechanical loads and reduce runout. Thermal energy is dissipated by natural convection, so the housing should be mounted where ambient air can circulate freely around the fins. Power is fed through a connector on side B, which affects cable routing and bend direction near the motor. Motion feedback is generated through tacho feedback with an incremental or absolute encoder, allowing the analog controller to regulate speed without external transducers. For installations that use external locking devices, the motor is supplied without a blocking brake, which avoids added shaft mass and extra drag during reversals.

The electrical interface remains consistent with classic drive architectures because no digital commutation data are required from the controller. Rotor position is reported by an integrated incremental encoder with standard mounting, so the feedback package fits the motor housing without added brackets or custom adapter parts. A standard tacho quality rating keeps the feedback voltage linear across the intended speed range, supporting predictable response in classic PID circuits. The motor shares common shaft height, flange pattern, and electrical pinout with related models in the product line.
