MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911226881
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
22 Seconds

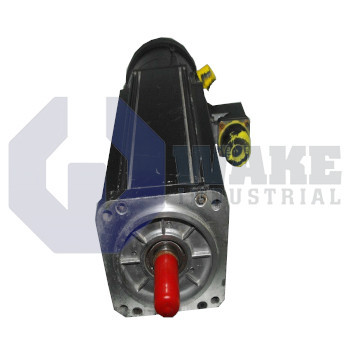

The Bosch Rexroth Indramat MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 is a motor for analog drives from the MAC AC Servo Motors series, featuring a motor size of 071 and a centering diameter of 95 mm. It uses natural convection cooling, has a standard blocking brake with a torque of 3 Nm, and operates at a nominal speed of 6000 rpm. The motor is equipped with an incremental encoder with shock-damped mounting for position feedback and a tachofeedback option.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 is an AC servo motor manufactured by Bosch Rexroth Indramat for the MAC AC Servo Motors series. Designed as a motor for analog drives, it provides closed-loop velocity and position control for machinery such as pick-and-place gantries, automated feeders, and similar motion axes. A standard blocking brake is integrated to hold the load at standstill, and the compact construction suits installations that do not use external cooling hardware. Its combination of servo feedback and brake holding makes it suitable for axes that must stop accurately and remain in place between motion cycles. It is intended for machine sections that need responsive motion control with repeatable stopping behavior during short, frequent indexing moves.
This model uses winding code GS and relies on natural convection to remove heat, so no auxiliary fan or liquid circuit is necessary. The mechanical interface uses a centering diameter of 95 mm, and the frame depth corresponds to motor length C. Shaft speed reaches a nominal 6000 rpm, giving the drive a wide operating range for fast cycle duties. When the brake is engaged, it can sustain a static torque of 3 Nm, which helps keep tooling or payloads fixed during power loss. Because cooling is passive, the motor can be used in enclosed machine areas where additional airflow components would add space and complexity.
Feedback is supplied for velocity loops with a tachometer output of 1.5 V/1000 rpm. The listed feedback configuration is an incremental encoder with shock-damped mounting, which helps reduce vibration transfer to the sensing element during rapid axis reversal. The field wiring interface uses a connector on side A, which keeps cabling straightforward and avoids terminal-strip wiring. This feedback arrangement supports stable speed regulation and position tracking in analog servo systems. The shock-damped encoder mounting also helps preserve signal consistency when the motor is exposed to recurring vibration from linked mechanical assemblies.
Frequently Asked Questions about MAC071C-0-GS-4-C-095-A-1-DI522LV-S004:
Q: What type of blocking brake does the MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 feature?
A: The MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 is equipped with a standard blocking brake providing a holding torque of 3 Nm.
Q: What is the nominal speed rating of the MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 motor?
A: This servo motor supports a nominal speed of 6000 min-1, suitable for fast operational cycles.
Q: What type of position feedback is used in the MAC071C-0-GS-4-C-095-A-1-DI522LV-S004?
A: The feedback system uses an incremental encoder with a shock-damped mounting for position information.
Q: How is the MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 motor cooled?
A: Cooling for this motor is achieved via natural convection without external cooling devices.
Q: What is the centering diameter of the MAC071C-0-GS-4-C-095-A-1-DI522LV-S004 servo motor?
A: The centering diameter on this model is 95 mm, allowing for secure mechanical mounting.
