Product Description:

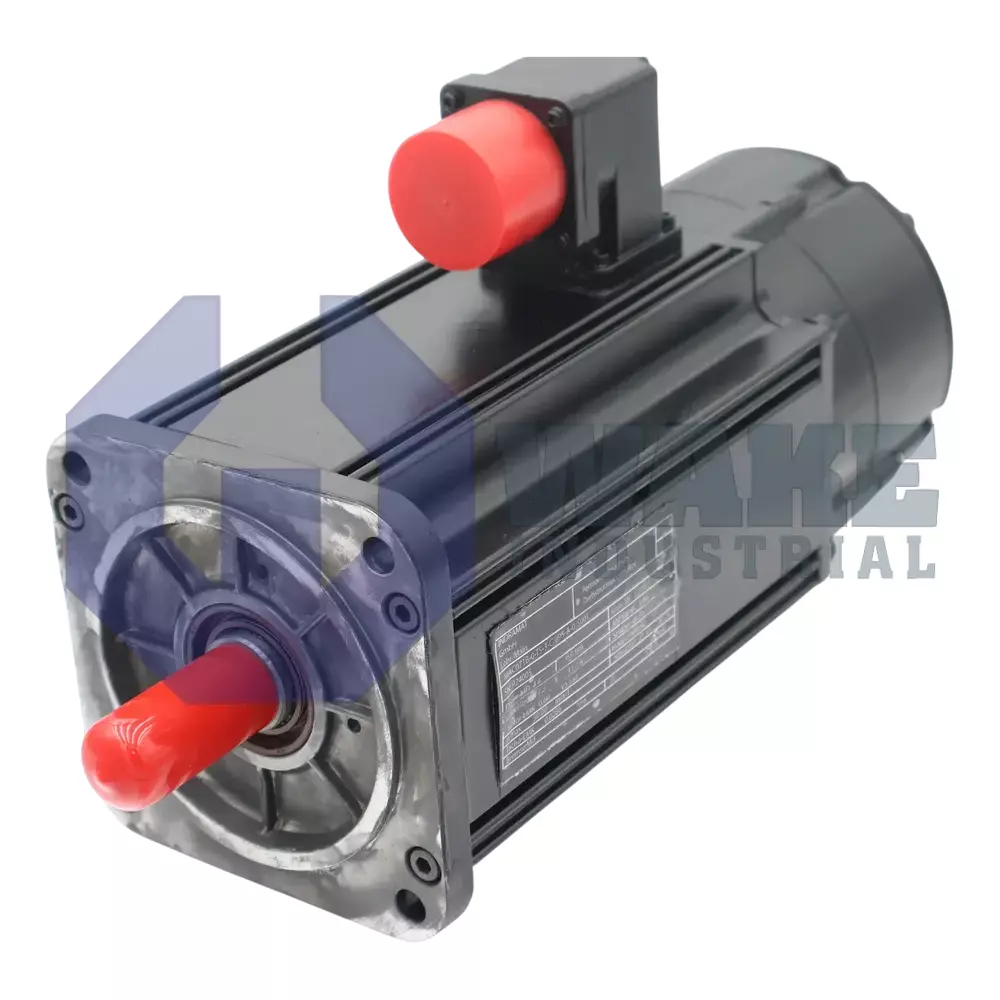

The MAC071B-0-TS-3-C/095-A-0/S001 is an AC servo motor produced by Bosch Rexroth Indramat for the MAC AC Servo Motors series. It is intended for analog drives, where commanded voltages are converted into controlled rotary motion for positioning and speed-regulated machine functions. When paired with matching drive electronics, the motor supports closed-loop motion control for pick-and-place axes, packaging stations, and assembly equipment. This arrangement allows the external amplifier to correct motion continuously instead of relying on open-loop motor operation.

Its mechanical interface uses a 95 mm pilot diameter that aligns the housing accurately to mating mounts. Heat is removed through natural convection, so the installation should allow free airflow around the housing rather than depend on forced cooling. Under rated conditions, the rotor operates at a nominal speed of 3000 rpm, which suits common analog servo applications that require stable speed control. Speed feedback is supplied by a tachogenerator with an output of 3 V/1000 rpm, allowing the drive to correct speed deviations during operation. Power connections are routed through a cable plug on side A of the stator, which can simplify cable routing when the motor is mounted with the flange facing forward.

The motor has no blocking brake, so any load that must remain fixed at standstill requires an external holding method. The TS winding code identifies the electrical characteristics used by the matching drive amplifier. The motor uses frame size 071 with frame length B, a combination that keeps the housing compact while supporting practical torque output and moderate inertia. A second shaft end is provided, allowing couplings or pulleys to be attached without interfering with the feedback device. This layout can be useful where motion must be transferred from the opposite end of the motor to another machine element.
