MAC063A-0-ES-4-C/095-B-0/WI634BX/S001
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911242329
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

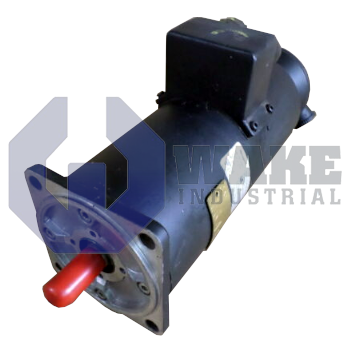

MAC Permanent Magnet Motor manufactured by Bosch Rexroth Indramat. This motor has a power connecter on Side B. This motor also includes a Incremental Encoder with Standard Mounting encoder and a Not Equipped blocking brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth’s cutting-edge technology includes an array of advanced motors and controllers, allowing industries across multiple sectors to benefit from their optimized performance and function. From synchronous motors to servo drives and inverter modules - their suite of engineering solutions is top-notch.
The MAC063A-0-ES-4-C/095-B-0/WI634BX/S001 model has tacho feedback and an incremental or absolute encoder, and it must be used with the specified attachments and accessories. During natural convection at standstill, the motor is capable of producing 0.8 Nm of constant torque while using 2.2 A of constant current. The thermal time constant of the MAC063A AC servo motor is 30 minutes, and its inductance is 9.1 mH. The model's power connection is located on the housing's B side and must be kept between -20 and +80 degrees Celsius. When paired with TDM, KDS, and DSC drive controllers, this AC servo motor from the MAC series produces a servo drive with a quick reaction. The 3.2-kilogram motor can be used in machine tools, textile machinery, printing presses, packaging machinery, robotics, handling equipment, and transfer facilities. Permanent magnets allow the MAC063A AC servo motor to have a moment of inertia of 2.4 x 10-4 kgm2.
The model MAC063A-0-ES-4-C/095-B-0/WI634BX/S001 enclosure has an IP65 rating and is painted black for weather and corrosion resistance. For outside heat dissipation, the model's housing design allows for natural cooling. The model's insulation rating is F, and it must be placed properly to prevent vibrations on the specified equipment. Motor efficiency is often degraded by vibrations. The model (MAC063A-0-ES-4-C/095-B-0/WI634BX/S001) must be operated between 0 and +45 degrees Celsius and can be placed at a maximum altitude of 1000 meters above sea level.
