KDV 1.3-100-220-300-220-380 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
24 Seconds

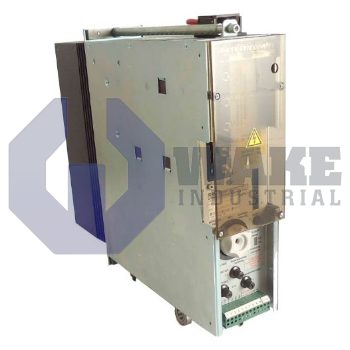

The Bosch Rexroth Indramat KDV 1.3-100-220-300-220-380 is part of the KDV Supply Modules series and features a nominal input voltage of AC 220 V with DC link voltage of 300 V. It supports a rated current of 100 A, peak current of 300 A for 300 milliseconds, and provides 500 VA of auxiliary power and 2 kW of bleeder continuous power.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The KDV 1.3-100-220-300-220-380 supply module is produced by Bosch Rexroth Indramat within the KDV Supply Modules series. It functions as a three-phase rectifier and energy management unit, delivering a stabilized DC link to multiple servo drives in industrial automation systems. By consolidating braking energy and auxiliary loads, the module stabilizes system voltage and simplifies wiring for motion axes, making it a standard choice for packaging, printing, and material-handling machinery.
It accepts a three-phase mains at a nominal input voltage of AC 220 V and can draw a rated current of 100 A during continuous operation. The rectified output is held at DC 300 V, forming the common bus that runs the connected inverters. Dynamic braking energy is absorbed by an internal bleeder resistor that can dissipate 2 kW continuously and tolerate up to 40 kW in short bursts, preventing overvoltage when axes decelerate simultaneously. Control electronics are powered by a dedicated 24 V rail that supplies 8 A, while cabinet auxiliaries may draw up to 500 VA through the auxiliary power tap. An integrated fan rated at 15 VA provides forced airflow across heat-generating components, and the three-phase topology helps balance load across the supply transformer.
For transient load surges, the DC bus can deliver a peak current of 300 A for 300 ms, and the module can absorb regeneration up to 60 kWs before the braking chopper reaches its limit. Heat rejected into the enclosure is limited to a cabinet power loss of 150 W, though the total external dissipation from attached drives must stay below 2000 W to maintain thermal margins. Reliable operation is specified up to an installation altitude of 1000 m under humidity class F and insulation category C conditions, ensuring adequate dielectric spacing and moisture tolerance inside typical factory environments.
Frequently Asked Questions about KDV 1.3-100-220-300-220-380:
Q: What is the nominal input voltage required for the KDV 1.3-100-220-300-220-380 supply module?
A: The KDV 1.3-100-220-300-220-380 supply module operates with a nominal input voltage of AC 220 V.
Q: What is the rated current capacity of the KDV 1.3-100-220-300-220-380?
A: This model is rated for a continuous current of 100 A.
Q: What is the peak current the KDV 1.3-100-220-300-220-380 can provide?
A: The peak current for this supply module is 300 A for 300 milliseconds.
Q: How much auxiliary power does the KDV 1.3-100-220-300-220-380 supply?
A: This unit features an auxiliary power rating of 500 VA for additional system requirements.
Q: What is the maximum feedback energy for the KDV 1.3-100-220-300-220-380 module?
A: The maximum feedback energy the KDV 1.3-100-220-300-220-380 can handle is 60 kWs.
