KDV 1.3-100-220-300-220 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911219666
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
44 Seconds
The Bosch Rexroth Indramat KDV 1.3-100-220-300-220 is a supply module in the KDV Supply Modules series with a nominal input voltage of 220 V AC and a DC bus voltage of 300 V DC. It features a rated current of 100 A, peak current of 300 A for 300 ms, and a unit weight of 21 kilograms. The unit has a maximum ambient temperature of 55 °C and a max altitude of 1000 meters.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

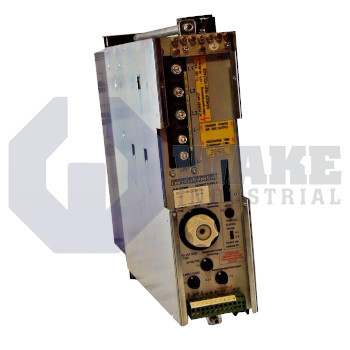

The KDV 1.3-100-220-300-220 is a supply module produced by Bosch Rexroth Indramat within the KDV Supply Modules series. This unit converts a three-phase industrial mains line into a stabilized DC bus that powers multiple drive controllers in a shared-axis system. By feeding several compatible drive units from one source, it supports centralized power distribution for machines with coordinated motion. Its integrated bleeder circuitry also handles returned braking energy, helping keep the DC bus stable when connected motors decelerate.
The module draws a nominal line of 220 V AC and supports a continuous output of 100 A; during 300 ms surges it can deliver up to 300 A for acceleration peaks. Its internal link maintains 300 V DC, matching the voltage class used by Indramat DDS and TDM drives, and total conversion capability is rated at 30 kW. Auxiliary electronics consume 500 VA, while the ventilation fan adds 15 VA to the supply demand. A separate 24 V control tap can supply 8 A for contactors or I/O circuits, and the cabinet thermal load is 150 W from semiconductor losses. The ventilation duct removes this heat from the module interior during continuous operation.
The energy-dissipation path relies on a resistor bank that absorbs 2 kW continuously and tolerates bursts of 40 kW when regenerative braking is heavy; it can accept up to 60 kWs of returned energy before the drive must decelerate more slowly. The resistor bank converts returned electrical energy into heat during repeated braking cycles. Ambient operation is allowed to 55 °C, and nominal performance is available up to 1,000 m altitude, with derating required above that height. The enclosure can release a maximum of 2,000 W to the surrounding control cabinet, so the cabinet must provide enough airflow to carry that heat away. Total shipping mass is 21 kg, which affects mounting support and handling during installation.
Frequently Asked Questions about KDV 1.3-100-220-300-220:
Q: What is the rated output current of the KDV 1.3-100-220-300-220 supply module?
A: The KDV 1.3-100-220-300-220 can deliver a rated current of 100 A.
Q: What input voltage is required for the KDV 1.3-100-220-300-220?
A: This supply module has a nominal input voltage of 220 V AC.
Q: What is the 24V auxiliary output current available on the KDV 1.3-100-220-300-220?
A: The KDV 1.3-100-220-300-220 provides a 24V output current rated at 8 A for auxiliary device support.
Q: What is the peak short-term current capability of the KDV 1.3-100-220-300-220?
A: The peak current that this unit can supply for 300 milliseconds is 300 A.
Q: What is the bleeder's continuous power rating on the KDV 1.3-100-220-300-220?
A: The maximum continuous power that can be dissipated by the bleeder in this module is 2 kW.
