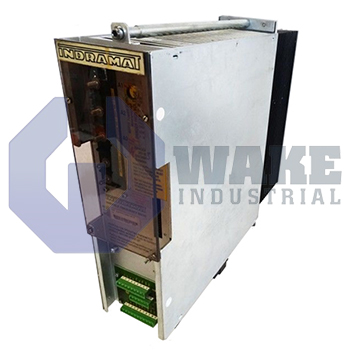

KDF2.2-050-300-W0-220 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911225994
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
24 Seconds
The Bosch Rexroth Indramat KDF2.2-050-300-W0-220 is part of the KDF Variable Frequency Drives series. This drive supports a maximum motor power of 25 horsepower, a current rating of 50 Amps, and a DC bus voltage of 300 VDC. It uses convection cooling, supports position control, and operates with a maximum speed of 8000 RPM.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The KDF2.2-050-300-W0-220 is a drive from Bosch Rexroth Indramat in the KDF Variable Frequency Drives series. In automated handling cells or machining centers, it acts as the power interface between the plant's DC link and an AC motor, delivering variable output frequency so axes accelerate, decelerate, and hold speed on command. When the unit is installed in a cabinet next to a motion controller, it provides scalable torque and speed control without additional mechanical gear changes, helping conveyor belts, pumps, and spindle packages follow programmed cycles accurately.
This model draws and regulates up to 50 A of output current, giving enough margin to start induction machines under load. Its internal bus is energized at 300 VDC, a level suited for multi-axis installations. Auxiliary electronics and the cooling fan share a separate 220 VAC supply so that logic power remains stable even if the main link fluctuates. When paired with a matched motor, the inverter can deliver up to 25 hp, allowing one frame size to cover conveyor drives, hydraulic pump replacements, or tool spindles. Electronic commutation supports commanded speeds as high as 8000 rpm, which suits high-speed processes such as drilling or winding while keeping motor operation within its intended range.
The microcontroller in the KDF platform exchanges velocity references and diagnostic data across a 16-bit command word, which provides fine resolution for incremental adjustments in coordinated motion tasks. Thermal management is handled by convection cooling, eliminating forced-air ducts and reducing service needs in dusty environments. A dedicated encoder channel enables closed-loop position control, and the velocity loop is managed by a digital microprocessor-based control system that adjusts proportional and integral gains in real time to reject load disturbances without oscillation.
Frequently Asked Questions about KDF2.2-050-300-W0-220:
Q: What is the current rating of the KDF2.2-050-300-W0-220 drive?
A: The KDF2.2-050-300-W0-220 drive supports a current rating of 50 A, which is suitable for demanding industrial applications.
Q: How is the KDF2.2-050-300-W0-220 drive cooled?
A: This model features convection cooling, allowing it to operate without the need for active fan cooling.
Q: What is the maximum motor power supported by the KDF2.2-050-300-W0-220 drive?
A: The KDF2.2-050-300-W0-220 drive can support motors up to 25 horsepower.
Q: Does the KDF2.2-050-300-W0-220 support position control?
A: Position control is supported on this variable frequency drive, enabling precise motor shaft positioning.
Q: What is the maximum speed that the KDF2.2-050-300-W0-220 drive can achieve?
A: This drive has a maximum motor speed of 8000 RPM for high-speed operations.
