Product Description:

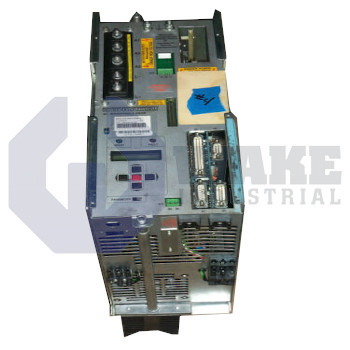

The KDA 3.3-150-3-A01-W1 is a spindle drive module produced by Bosch Rexroth Indramat within the KDA Spindle Drives series. It serves as the power interface between a machine tool’s control system and a high-speed spindle motor, converting bus voltage into controlled three-phase output to maintain accurate rotational velocity during cutting, drilling, or grinding. Integrated current monitoring, closed-loop speed regulation, and a cabinet-mounted heat sink let the drive operate continuously in industrial automation environments that demand stable torque delivery, repeatable surface finishes, and high duty cycles.

Electrical limits start with a bus link that supplies 300 VDC, the nominal DC level the drive’s power stage converts into variable armature voltage. Under that supply, the output channel can deliver a continuous phase current of 150 A, allowing operation of large-frame spindle motors without derating. Thermal balance depends on a heat sink blower that runs from an auxiliary feed of 220 V/50–60 Hz, so the cooling fan is energized independently of the DC link. Installation sites must remain within 5 to 45 °C ambient temperature so component temperatures stay inside design margins, and mounting above 1000 m above sea level is not recommended because reduced air density lowers convective cooling capacity.

The mechanical design of series 3 units centers on a mounted heat sink blower that pushes air directly across the power semiconductors. This arrangement uses forced cooling and prevents internal hot spots during long acceleration profiles. Speed regulation is driven by an analog command value supplied from the CNC, which the KDA control board filters and scales before generating PWM gate signals. Encoder feedback is limited to the primary channel because the drive does not include an additional input, so any secondary position device must be handled by the control system itself.
