Product Description:

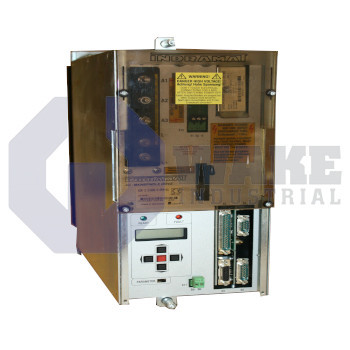

The KDA 3.1-050-3-DPS-W1 is a spindle drive manufactured by Bosch Rexroth Indramat within the KDA Spindle Drives series. As a dedicated spindle controller, it regulates torque and speed for machining centers and other automation platforms that require precise high-speed rotation. The unit is part of Series 3 and converts digital speed commands into regulated motor current so the connected spindle can maintain stable rotation during cutting, drilling, and similar processes. This control function helps the spindle respond smoothly to changing load conditions while following the commanded speed profile.

This drive is powered from a DC bus of 300 VDC, and it can deliver a continuous output of 50 A to the spindle motor. A separate blower circuit supplied at 220 V/50-60 Hz powers the mounted heat sink blower that removes waste heat from the drive. The heat sink uses a forced cooling arrangement, which helps the unit maintain thermal stability during extended operating periods. Internally, velocity references are received through a digital 16-bit parallel channel, allowing the controller to reproduce commanded speeds with fine resolution and consistent response. Because the cooling blower uses a separate supply, airflow can be maintained independently of the DC bus power section.

The drive is designed for operation in ambient temperatures from 5 to 45 °C, and it can be installed at elevations up to 1000 m above sea level without derating. Communication with higher-level controllers or diagnostic equipment is available through a serial interface (RS-232-C), which supports setup and status access. A second encoder input can be used for spindle feedback or for an additional motor axis, which helps when a machine uses more than one feedback source. The added encoder channel is useful where spindle orientation or synchronized motion depends on more than one feedback signal.
