The Bosch Rexroth Indramat KCU01.2N-SE-SE-025-NN-S-NN-NW is part of the KCU IndraDrive Control Systems series and provides a control output power of 588 W at 42 V. It has a rated input and output current of 25 A and a mass of 3.80 kg. The unit features SERCOS master communication and is protected to IP20 with dimensions of 352 mm in height, 50 mm in width, and 252 mm in depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

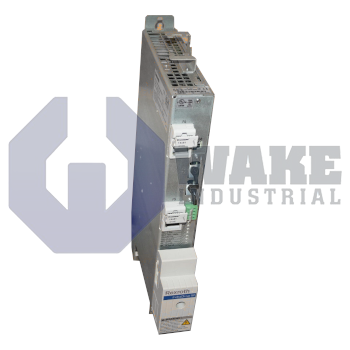

The KCU01.2N-SE-SE-025-NN-S-NN-NW control unit is produced by Bosch Rexroth Indramat as part of the KCU IndraDrive Control Systems series. It functions as the centralized low-voltage supply for IndraDrive converters, routing conditioned power to drive logic, sensors, and auxiliary I/O modules in automated production cells. Integrating this supply module instead of separate transformers reduces cabinet wiring and simplifies power distribution. This arrangement keeps auxiliary circuits grouped in one location and avoids the need for separate local control power sources.
The module draws a nominal control input of 24 V DC and may absorb up to 25.0 A. Its declared control input power is 675 W. Internally, a high-frequency converter generates a regulated bus of 42.0 V for downstream IndraDrive sections, supplying the low-voltage power required by connected control electronics. Overcurrent trips protect the distribution path, and the enclosure carries an IP20 degree of protection, so the unit must be installed inside a shielded control cabinet free from conductive dust. No derating is required for horizontal alignment, and the unit maintains full output across the stated electrical load.
Mechanically, the supply occupies only 50 mm of panel width and stands 352 mm high so it can align with adjacent power inverters while preserving rail space for nearby modules. Chassis depth is 206 mm and extends to 252 mm when front connectors are fitted, which should be considered when planning cabinet clearance. Zero horizontal spacing is permitted between neighboring units, while the required free space above and below supports vertical airflow. With a mass of 3.80 kg, the unit places a relatively light load on the panel structure. Cycle-synchronous command exchange is handled through the SERCOS master interface, allowing the control unit to share status and diagnostics with higher-level PLCs without additional gateway hardware.
Frequently Asked Questions about KCU01.2N-SE-SE-025-NN-S-NN-NW:
Q: What is the control input power rating for the KCU01.2N-SE-SE-025-NN-S-NN-NW?
A: The KCU01.2N-SE-SE-025-NN-S-NN-NW control system operates with a control input power of 675 W.
Q: What communication protocol does the KCU01.2N-SE-SE-025-NN-S-NN-NW support for master communication?
A: This model uses SERCOS as its master communication interface for network connectivity.
Q: What is the rated control voltage input for the KCU01.2N-SE-SE-025-NN-S-NN-NW?
A: The rated control voltage input for this control system is 24 V.
Q: What is the rated output current of the KCU01.2N-SE-SE-025-NN-S-NN-NW control system?
A: The device provides a rated output current of 25 A for control applications.
Q: What is the ingress protection (IP) rating of the KCU01.2N-SE-SE-025-NN-S-NN-NW?
A: The KCU01.2N-SE-SE-025-NN-S-NN-NW has an ingress protection rating of IP20.
