HZF01.1-W045N Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911286617
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

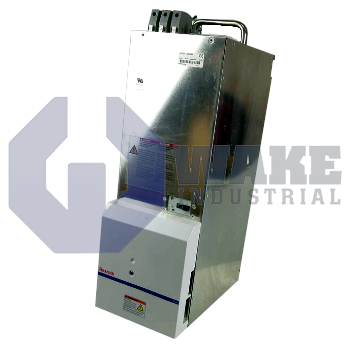

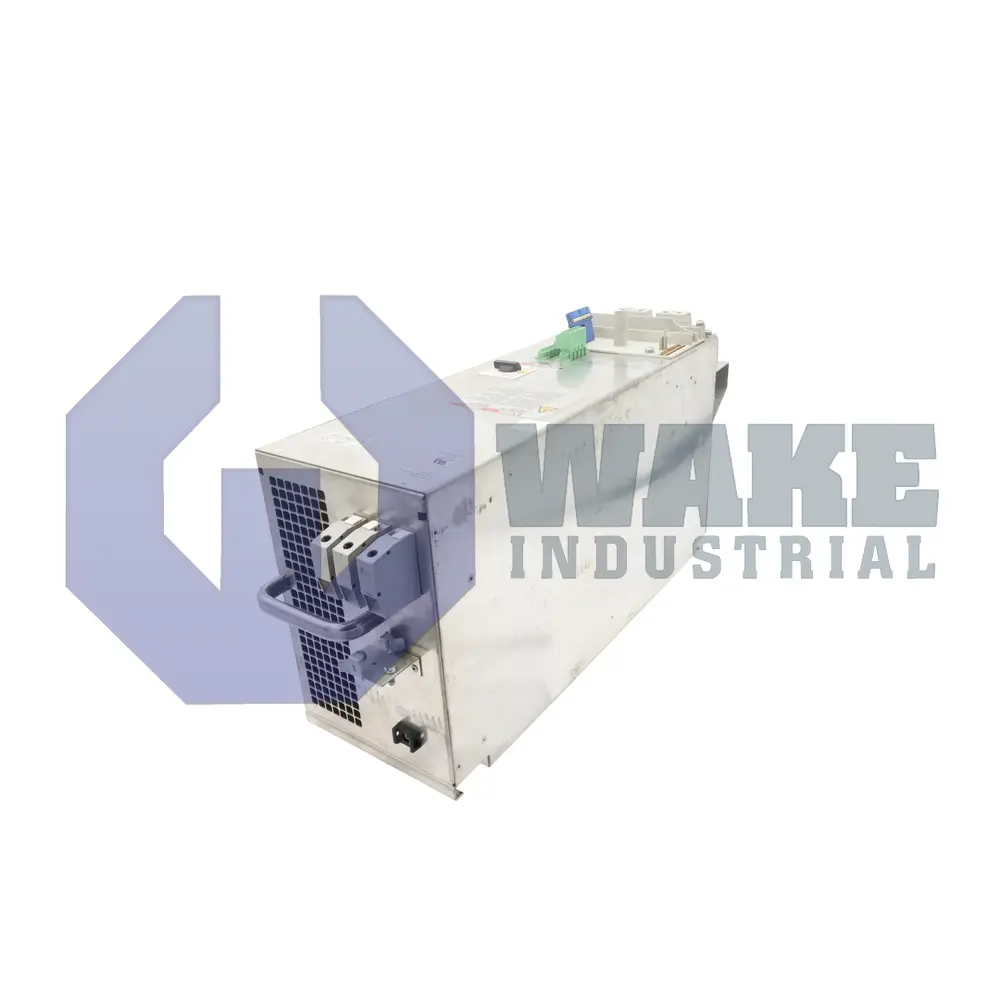

The Bosch Rexroth Indramat HZF01.1-W045N is a filter module from the HZF Filter Modules series with a nominal power of 45 kW and a nominal current of 80 Amps. It cools using natural convection and has total power losses of 400 Watts. The unit measures 498 mm in height, 175 mm in width, 262 mm in depth, and weighs 25 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HZF01.1-W045N is a filter module manufactured by Bosch Rexroth Indramat for the HZF Filter Modules series. It is part of Design 1 in Line 01 and is installed between the line supply and drive controllers to suppress conducted interference and stabilize current flow in industrial automation systems. By reducing line-side electrical noise, the module supports cleaner power delivery to connected drives in medium-power multi-axis installations. Its placement on the incoming power path lets it condition supply current before it reaches the drive electronics.
Electrical losses are a primary consideration for this module. Its nominal power handling capacity is 45 kW, while the allowable continuous current is limited to 80 A; together these ratings show the drive group that can be connected without thermal derating. Basic no-load dissipation is only 200 W, but once a drive consumes energy, loss rises by 4.5 W/kW of transmitted power. When the module operates at full load, aggregate heat generation reaches 400 W. Loss increases with transmitted power, so thermal behavior changes with system demand rather than remaining fixed at idle. This heat is removed by the surrounding air, so cabinet spacing and airflow must be arranged to keep internal temperatures within acceptable limits.
The housing uses natural convection as its cooling mode, so there are no built-in fans or liquid circuits to maintain. Power terminals accept conductors up to 25 mm², and the control terminals are limited to 1.5 mm², which helps match cable size to circuit duty. The unit has a height of 498 mm, along with a width of 175 mm and a depth of 262 mm, so it can be placed beside standard Rexroth inverters on a back plate. A total mass of 25 kg should be considered when selecting panel supports and mounting hardware. Clearance around the enclosure should also be left open so the passive airflow path is not restricted.
Frequently Asked Questions about HZF01.1-W045N:
Q: What is the nominal power rating of the HZF01.1-W045N filter module?
A: The HZF01.1-W045N supports a nominal power rating of 45 kW for continuous operation.
Q: What type of cooling method is used in the HZF01.1-W045N?
A: This module features natural convection cooling, eliminating the need for external fans.
Q: What is the maximum continuous total power loss of the HZF01.1-W045N?
A: The maximum continuous total power loss for this unit is 400 W.
Q: What continuous nominal current can the HZF01.1-W045N manage?
A: The HZF01.1-W045N can handle a continuous nominal current of 80 A.
Q: What is the maximum power terminal cross-section supported by the HZF01.1-W045N?
A: This model accommodates a maximum power terminal cross-section of 25 mm².
