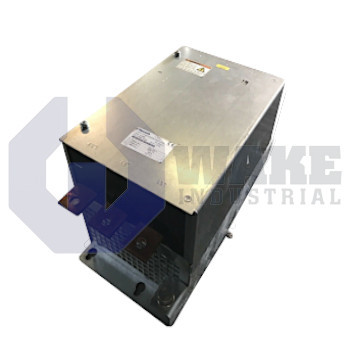

HNF01.1A-P2K0-R0800-A-480-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307412
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
34 Seconds
The Bosch Rexroth Indramat HNF01.1A-P2K0-R0800-A-480-NNNN is part of the HNF Mains Filters series. It features IP20 protection and is designed for regenerative devices only. The filter operates on a mains connection voltage of 3-phase AC 400 to 480V, 50/60 Hz, and meets EMC Category C3 according to DIN EN 61800-3.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HNF01.1A-P2K0-R0800-A-480-NNNN is a mains input filter produced by Bosch Rexroth Indramat within the HNF Mains Filters series. The unit is installed between the three-phase supply and a regenerative drive to limit conducted interference and return energy to the line safely during braking events. By providing impedance matching and attenuation, the filter helps drive controllers meet industrial electromagnetic compatibility limits and shields upstream components from transient currents generated by active front-end inverters.
This filter carries a protection rating of IP20, so it is intended for mounting inside an electrical enclosure where no dust-tight or water-jet sealing is required. The mains terminals accept 3× AC 400–480 V supplies, and the permitted tolerance of −15% to +10% allows reliable operation on networks that fluctuate around the nominal voltage. Input frequency compatibility spans 50/60 Hz, ensuring alignment with standard utility grids. Electromagnetic emission performance is classified in category C3, which is suitable for industrial environments fed by dedicated transformers. The product is designed exclusively for regenerative devices, meaning its internal components can cope with reverse power flow from active drives. Its hardware release is identified as Design version 1, which indicates the mechanical layout and wiring dimensions used for installation.
The C3 EMC category is referenced directly to DIN EN 61800-3, so compliance with this standard supports system certification when multi-axis drives feed regenerative energy back to the supply. The 01 build size shares mounting hole patterns with matched line reactors, which simplifies cabinet layout when several axes are grouped on a common bus. Its wiring conventions, terminal labeling, and thermal ratings align with related drive components, which supports consistent integration in control cabinets.
Frequently Asked Questions about HNF01.1A-P2K0-R0800-A-480-NNNN:
Q: What is the protection rating of the HNF01.1A-P2K0-R0800-A-480-NNNN mains filter?
A: The HNF01.1A-P2K0-R0800-A-480-NNNN mains filter has a degree of protection rated at IP20.
Q: What mains connection voltage does the HNF01.1A-P2K0-R0800-A-480-NNNN support?
A: This model is compatible with supply voltages ranging from 3 × AC 400 to 480V with tolerances of -15% to +10% at 50/60 Hz.
Q: Which supply systems can be used with the HNF01.1A-P2K0-R0800-A-480-NNNN?
A: The HNF01.1A-P2K0-R0800-A-480-NNNN is designed only for use in regenerative systems.
Q: To which EMC category does the HNF01.1A-P2K0-R0800-A-480-NNNN conform?
A: This filter meets EMC Category C3 as outlined by DIN EN 61800-3 standards.
Q: What design version is the HNF01.1A-P2K0-R0800-A-480-NNNN mains filter?
A: The HNF01.1A-P2K0-R0800-A-480-NNNN is produced in design version 1.
