Product Description:

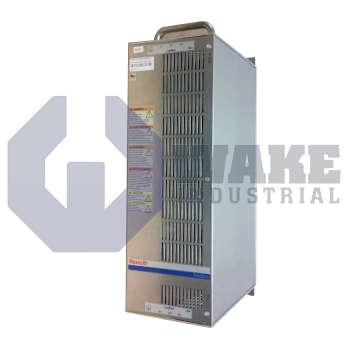

The HNF01.1A-F240-R0094-A-480-NNNN is a three-phase mains filter manufactured by Bosch Rexroth Indramat for the HNF Mains Filters series. Within a drive cabinet, it sits between the public supply and the power section of Indramat inverters, where it attenuates conducted interference and supports the return of excess energy from regenerative drives. Its position ahead of the drive group reduces switching noise seen by the incoming line and helps keep the DC bus stable during braking or energy recovery cycles. It is used on the line side of the drive system rather than at an individual motor output, so one filter can serve the cabinet power entry for a grouped installation.

Its electrical parameters are centered on a nominal current of 94 A, so the filter can feed several converters without saturation. The mains connection accepts 400–480 V AC three-phase supplies with a tolerance of -15% to +10% at 50 or 60 Hz, allowing straightforward integration on worldwide industrial networks. An enclosure rating of IP20 limits installation to control cabinets where basic finger protection is sufficient. For conducted emissions, it meets EMC category C3 in accordance with DIN EN 61800-3, which is suitable for industrial environments rather than residential grids. Mechanical layout follows design version 1, so mounting points and busbar spacing correspond to the first release drawings.

In application, the filter supports drive groups of up to 6 axes while maintaining stable line currents over a total motor cable length that can reach 240 m. Because the internal choke and capacitor matrix are sized for energy feedback, the supply system is limited to use for regenerative devices only. This arrangement is useful in applications with frequent stopping and reversing, where recovered energy repeatedly flows back through the supply path. The model belongs to series 01, which places it within the first generation of HNF components.
