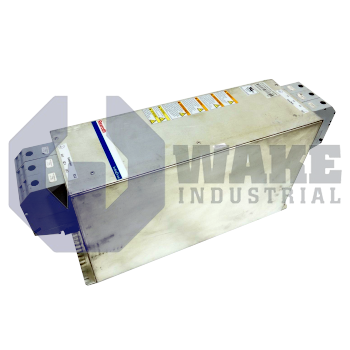

HNF01.1A-F240-E0202
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 1-2 Days
The Bosch Rexroth Indramat HNF01.1A-F240-E0202 is part of the HNF Mains Filters series and supports applications with up to 6 axes and a maximum cable length of 240 meters. This mains filter is designed for feeding devices only, has a nominal current of 202 Amps, and meets the EMC Category C3 standard according to DIN EN 61800-3.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HNF01.1A-F240-E0202 mains filter is built by Bosch Rexroth Indramat and belongs to the HNF Mains Filters series. Intended for installation upstream of multi-axis drive groups, the unit suppresses conducted interference on the supply lines and smooths regenerated energy before it returns to the plant mains. By providing this filtering function, it safeguards servo controllers and nearby instrumentation from electromagnetic disturbances, thereby maintaining reliable motion control in automated production cells, robotic islands, and dispersed manufacturing lines. It is mounted between the mains contactor and the power supply module.
The filter can pass a nominal line current of 202 A, so cabinet designers pair it with medium-power inverters without exceeding thermal limits. It meets the electromagnetic compatibility limit class C3 in accordance with DIN EN 61800-3, meaning it is suitable for industrial environments where dedicated supply transformers are present. A single HNF01.1A-F240-E0202 can protect up to 6 axes that share a common DC bus, and the permitted motor cable distance from the drives spans 240 m. These parameters help planners size feeder sections, cable trays, and grounding schemes that satisfy both performance and compliance requirements.
Mechanical layout and firmware compatibility follow design level 1, making the filter interchangeable with earlier cabinet drawings that specify the same revision. It is intended for feeding devices only. These attributes assist maintenance staff when selecting spare parts and ensure that replacement filters match impedance, mechanical footprint, and regulatory labeling.
