HMV01.1E-W0030

Name: HMV01.1E-W0030
Brand: Bosch Rexroth Indramat
Price: 149 USD
Availability: InStock
Rating: 4.6 (10 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Unused Original Box Pricing Available!
Request a Quote!
Call for Expedited Shipping and Product Condition Options

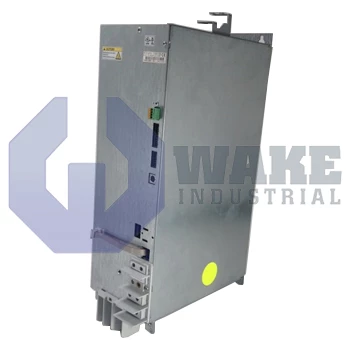

The hmv01.1e-w0030 power supply is a vital component of the HMV series, supporting Bosch's HMS01 and HMD01 drive controllers. With a compact design and robust housing, it offers 24V control voltage input with ?5% tolerance.

Request a Quote Request Repair

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a HMV01.1E-W0030 to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Revisions
Specs
FAQ

Product Description

The hmv01.1e-w0030 product is a part of HMV power supply series introduced to operate HMS01 and HMD01 drive controllers by Bosch. The company offers a range of power supplies to match your needs. These products are manufactured with top-notch quality components and are tested for performance considering industrial ambience.

The HMV01.1E power supply module comes with a robust design and compact housing. The device comes with 2 x 470 nF of capacitance against housing. The device is measured to be 350mm wide, 262mm deep and 440mm high. It measures to be 13.5 kg in weight allowing easy mounting. The recommended mounting position is G1. This model operates with 24V of rated control voltage input with ?5% tolerance. The maximum inrush current at 24V supply is 5 A. The power supply comes enclosed in an IP20 degree protected metallic housing with built-in cooling fan. To facilitate its forced ventilation, a minimum gap of 300mm on the top and 130mm on the bottom should be provided. The rated power consumption with control voltage input is 55W. It is designed to have a short circuit rating of 42000 Arms. The device provides output voltage in range of 430 to 750 VDC. The output current is measured to be 69 A when operated under ambient temperature range of 0 to +40 degree Celsius. If operated above +40 and up to +55 degree Celsius, nominal data deration may occur.

The HMV01.1E-W0030 unit comes under a one-year warranty and must be used in compliance with the warranty policy. It falls under 2K3 climatic category and must be used accordingly. Moisture condensation and icing is not allowed on this model. It is marked safe for relative humidity range of 5 to 95% and absolute humidity range of 1 to 60 g/m3.

HMV01.1E-W0030 Technical Specifications

Compatibility:	HMS01, HMD01
Power Consumption:	55W with control voltage input
Capacitance:	2 x 470 nF against housing
Dimensions:	350mm wide, 262mm deep, 440mm high
Weight:	13.5 kg
Mounting Position:	G1
Control Voltage Input:	24V with ?5% tolerance
Maximum Inrush Current:	5 A at 24V supply
Protection:	IP20 degree protected metallic housing
Cooling:	Built-in cooling fan, forced ventilation required

Frequently Asked Questions about HMV01.1E-W0030

Q: The HMV01.1E-W0030 product is part of which series, and what is its primary use?

A: The HMV01.1E-W0030 product is part of the HMV power supply series introduced by Bosch. It is primarily used to operate HMS01 and HMD01 drive controllers.

Q: The HMV01.1E-W0030 has a specific capacitance rating. What is the capacitance and its associated component?

A: The HMV01.1E-W0030 has a capacitance of 2 x 470 nF. This capacitance is rated against the housing of the device.

Q: The dimensions of the HMV01.1E-W0030 power supply module are mentioned. What are the exact measurements?

A: The HMV01.1E-W0030 power supply module measures 350mm in width, 262mm in depth, and 440mm in height. These dimensions contribute to its robust design and compact housing.

Q: What is the rated control voltage input and its tolerance for the HMV01.1E-W0030?

A: The HMV01.1E-W0030 operates with a rated control voltage input of 24V. The tolerance for this voltage input is ?5%.

Q: The HMV01.1E-W0030 has specific environmental operating conditions. What are the acceptable humidity ranges for this device?

A: The HMV01.1E-W0030 is marked safe for a relative humidity range of 5 to 95%. Additionally, it has an absolute humidity range of 1 to 60 g/m3.
