HMV01.1R-W0120-A-07-NNNN
MPN: R911312757
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

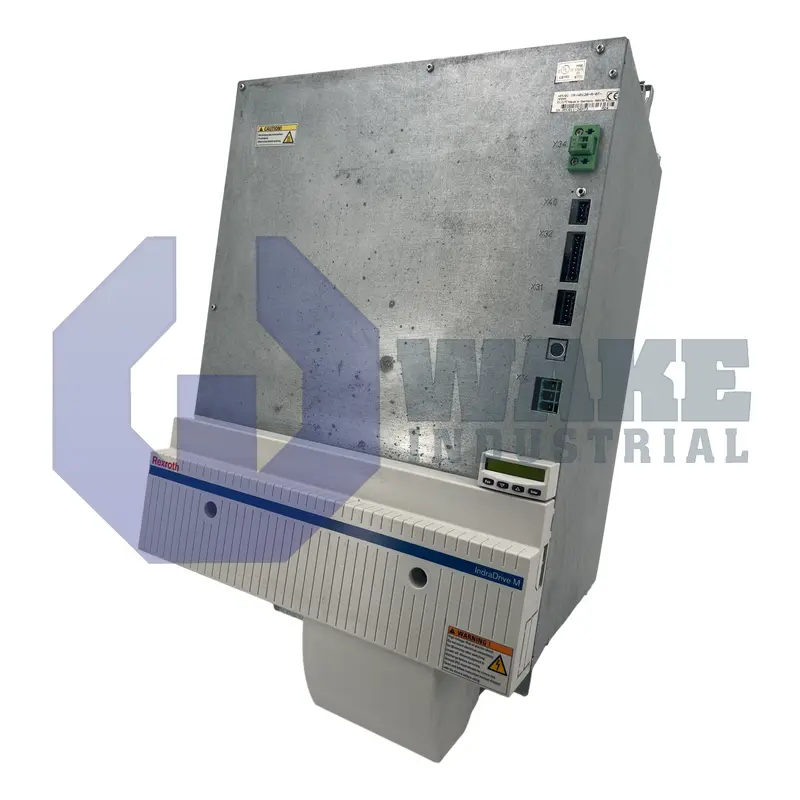

The hmv01.1r-w0120-a-07-nnnn power supply module by Bosch Rexroth is tailored for HMS01 and HMD01 drive controllers. With robust construction and efficient cooling, it ensures reliable performance in industrial settings.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The hmv01.1r-w0120-a-07-nnnn product is a regenerative type power supply module specially designed for HMS01 and HMD01 drive controller series by Bosch Rexroth, a leading manufacturer and supplier of industrial automation products. The company is dedicated to serving the global market with its cutting edge technology in drive controllers and their power supplies.
The HMV01.1R-W0120 power supply module is designed to be mounted with a 300mm gap on the top and 334mm gap at the bottom for efficient cooling. A built-in cooling fan is also provided to blow hot air outside. This model operates with rated control voltage input of 24V ?5 %. In case of using motor holding brake with motor cable length greater than 50m, the input control voltage would be 26V ?5 %. At 24V supply, the maximum inrush current would be 13 A. The input capacitance control supply is 1 nF. The mains voltage for three-phase at corner-grounded-Delta mains ranges from 200 to 230 V with ?10 V tolerance. This model is assigned with main choke (HNL01.1R-0300-C0180-A-480). The maximum allowed ON-OFF cycles per minute is 01. The power factor TPF with main choke is 0.99. The power supply unit should be used at a location with ambient temperature in the range of 0 to +40 degree Celsius. If used above this temperature, data loss may occur.
The HMV01.1R type power supply unit operates with an average sound pressure level of 80 dB(A). The unit has 34.5 kg of mass requiring extreme care when mounting. The device height is measured to be 440mm, depth to be 262mm and width is 350mm. Customers can order using type code (hmv01.1r-w0120-a-07-nnnn) and experience best customer care with Wake Industrial. The product is inspected before making the delivery.
Frequently Asked Questions about HMV01.1R-W0120-A-07-NNNN:
Q: What are the rated control voltage input and maximum inrush current for the HMV01.1R-W0120-A-07-NNNN?
A: The HMV01.1R-W0120-A-07-NNNN has a rated control voltage input of 24V ?5% (26V ?5% for motor holding brake cable >50m) and a maximum inrush current of 13 A at 24V supply.
Q: What are the mains voltage requirements and the main choke model for the HMV01.1R-W0120-A-07-NNNN?
A: The HMV01.1R-W0120-A-07-NNNN requires a mains voltage of 3-phase at corner-grounded-Delta mains ranging from 200 to 230 V with ?10 V tolerance and uses the main choke model HNL01.1R-0300-C0180-A-480.
Q: What is the operating temperature range and what happens if the HMV01.1R-W0120-A-07-NNNN is used above this range?
A: The HMV01.1R-W0120-A-07-NNNN operates within an ambient temperature range of 0 to +40?C, and data loss may occur if used above this temperature.
Q: What are the dimensions and weight of the HMV01.1R-W0120-A-07-NNNN?
A: The HMV01.1R-W0120-A-07-NNNN measures 440mm high, 262mm deep, and 350mm wide, and it weighs 34.5 kg.
Q: What is the cooling mechanism and sound pressure level of the HMV01.1R-W0120-A-07-NNNN?
A: The HMV01.1R-W0120-A-07-NNNN has a built-in cooling fan and operates with an average sound pressure level of 80 dB(A).
