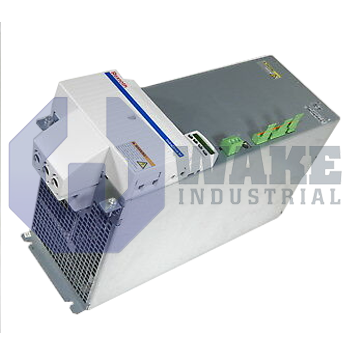

The Bosch Rexroth Indramat HMV01.1R-W0065-A-07-FNN6 is a regenerative supply unit in the HMV IndraDrive Supply Units series. It has a rated output power of 65 kW and uses internal air cooling with an integrated blower. The unit features a DC bus nominal voltage of 700 V and an IP20 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HMV01.1R-W0065-A-07-FNN6 is a supply module built by Bosch Rexroth Indramat for the HMV IndraDrive Supply Units series. It acts as the common DC-bus front end for multi-axis IndraDrive systems, converting line energy into a stabilized DC link and returning regenerated braking energy to the mains. In automated lines, this function provides power balancing for servo inverters while reducing the need for separate cabinet components. By handling line conversion at one point, it helps keep the power architecture more centralized in larger servo assemblies.
The module delivers a rated output of 65 kW, so it can continuously support combined axis demand up to that thermal limit without derating. Its DC link is held at DC 700 V, which matches the IndraDrive inverter family and helps reduce conductor current on the shared bus. This common bus lets connected inverters draw from the same energy reserve during acceleration and steady operation. Heat is removed by internal air cooling with an integrated blower, so enclosure airflow remains self-contained and external ducting is not required. The housing has an IP20 rating, which provides finger-safe touch protection but no water sealing, so installation is limited to clean electrical enclosures. Because the power stage is regenerative, recovered kinetic energy is fed back to the mains instead of being dissipated as heat.
The unit is design version 1 and belongs to series version 01. The product is an HMV Supply Unit, which distinguishes it from converter and inverter sections within the same platform. Its place in the system is on the supply side of the drive lineup, where incoming power handling is separated from the motor-side inverter stages. It is intended for IndraDrive installations that group multiple axes around one supply source rather than using a separate front end for each inverter.
Frequently Asked Questions about HMV01.1R-W0065-A-07-FNN6:
Q: What cooling method does the HMV01.1R-W0065-A-07-FNN6 supply unit utilize?
A: The HMV01.1R-W0065-A-07-FNN6 supply unit uses internal air cooling with an integrated blower for thermal management.
Q: What type of power supply configuration is used in the HMV01.1R-W0065-A-07-FNN6?
A: This model features a regenerative power supply configuration, allowing for energy recovery during operation.
Q: What is the rated output power of the HMV01.1R-W0065-A-07-FNN6 supply unit?
A: The HMV01.1R-W0065-A-07-FNN6 offers a rated output power of 65 kW.
Q: What is the DC bus nominal voltage for the HMV01.1R-W0065-A-07-FNN6?
A: The HMV01.1R-W0065-A-07-FNN6 operates with a DC bus nominal voltage of 700 V.
Q: What protection rating does the HMV01.1R-W0065-A-07-FNN6 feature?
A: This supply unit has an IP20 protection rating, indicating limited protection against solid objects and no protection against water.
