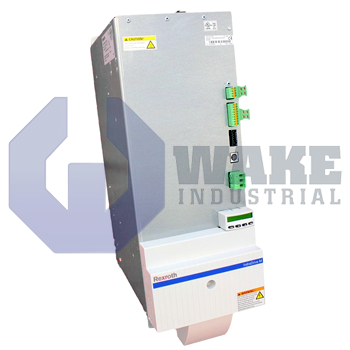

HMV01.1R-W0030-A-07-FNN3 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911345522
Ask for AvailabilityThe Bosch Rexroth Indramat HMV01.1R-W0030-A-07-FNN3 is a supply unit in the HMV IndraDrive Supply Units series with a rated output power of 30 kW and an IP20 protection rating. This unit uses internal air cooling with an integrated blower and has a DC bus nominal voltage of 700 V. It features a regenerative power supply configuration.
Internal Product Review
The HMV01.1R-W0030-A-07-FNN3 is a Bosch Rexroth Indramat HMV supply unit with a regenerative power supply configuration and 30 kW rated output power. Internal air cooling with an integrated blower supports stable thermal management, and the IP20 protection rating fits well in enclosed industrial cabinets. A DC 700 V nominal bus makes this model a strong choice for efficient energy handling in IndraDrive systems.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HMV01.1R-W0030-A-07-FNN3 supply unit is produced by Bosch Rexroth Indramat for the HMV IndraDrive Supply Units series. It functions as the front-end converter in an IndraDrive system, transforming three-phase line power into a stable DC bus that serves multiple servo inverters. In integrated automation cells, the module provides consistent voltage while reducing the need for external line components and limiting heat inside the cabinet. By centralizing the conversion stage in one unit, the system can feed a common DC link for several drive axes and keep bus conditions more uniform during changing load demand. It supports coordinated motion when several inverters operate from the same shared bus. This arrangement supports packaging lines, gantry loaders, and other equipment that cycle rapidly between acceleration and deceleration.
Thermal management relies on internal air cooling with an integrated blower, which forces air through the heat sink without external ducting. The rail maintains a nominal bus voltage of DC 700 V, giving connected inverters a consistent operating margin for high-speed positioning. At full duty, the unit delivers 30 kW of electrical power, which suits mid-range multi-axis machines with several servo axes. Because the power stage is regenerative, excess kinetic energy is returned to the AC supply rather than dissipated in resistors, which reduces heat inside the cabinet. The housing is rated IP20, which helps prevent accidental contact with live terminals while allowing dense mounting in a control cabinet.
The device is listed as a supply module, and it is identified as design Version 1 with Series version 01. Energy moves bidirectionally through the internal capacitor-and-choke network that forms the DC bus link, so rapid braking cycles can be handled without external resistors. That arrangement is useful in machines where one axis may be braking while another is accelerating, because recovered energy can remain on the shared link instead of being wasted as heat. This shared bus structure helps connected drives exchange energy during repeated acceleration and deceleration, which supports stable operation across coordinated axes.
