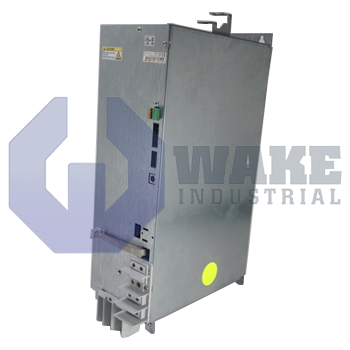

HMV01.1E-W0120 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911297425
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat HMV01.1E-W0120 is part of the HMV IndraDrive Supply Units series and has a rated output power of 120 kW. It features a cooling method using internal air with an integrated blower and supports a continuous input mains current of 200 Amps. The supply unit delivers a maximum brake power of 130 kW and weighs 32 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HMV01.1E-W0120 belongs to the HMV IndraDrive Supply Units series produced by Bosch Rexroth Indramat. It is an HMV supply unit that converts three-phase mains power into a regulated DC bus and provides controlled braking energy for multiple IndraDrive inverters on the same link. Within an automation cabinet, it functions as the central energy interface, delivering stabilized bus voltage while absorbing regenerative energy from decelerating servo axes. This arrangement allows several connected axes to share one supply source and return excess energy to the same DC link.
This model supplies up to 120 kW of continuous output power and can draw a mains current of 200 A under rated conditions. During routine deceleration cycles, it dissipates 2.5 kW of brake power continuously, yet it can momentarily handle a peak of 130 kW to protect the DC link from overvoltage. A storage capacitance of 5,640 µF smooths bus ripple so the connected drives receive a steady voltage even when load changes are abrupt. The unit is configured as a fed power supply and uses internal air cooling with an integrated blower to move heat away from the power semiconductors. Design version 1 and series version 01 identify the initial IndraDrive release. Its depth is 309 mm, which allows the enclosure to fit standard 600 mm cabinets while leaving rear clearance for airflow.
An energy reservoir of 500 kWs lets the brake chopper tolerate long stops without external resistors. The control electronics require only 55 W and are powered by a maintenance supply of 24 V DC. The internal control section regulates a continuous current of 2.3 A for gate drives and monitoring circuits. The maintenance supply supports monitoring and switching functions when the main power section is not fully active. The housing is 440 mm high and 350 mm wide, and the unit weighs 32 kg. Its front dimensions suit cabinet layouts that need a high-power supply module within a compact mounting width.
Frequently Asked Questions about HMV01.1E-W0120:
Q: What is the rated output power of the HMV01.1E-W0120 supply unit?
A: The HMV01.1E-W0120 supply unit has a rated output power of 120 kW.
Q: What cooling method is used in the HMV01.1E-W0120 unit?
A: This model features internal air cooling with an integrated blower.
Q: What is the maximum brake power on the HMV01.1E-W0120?
A: The maximum brake power available for this product is 130 kW.
Q: What level of continuous brake power does the HMV01.1E-W0120 provide?
A: The continuous brake power rating on this unit is 2.5 kW.
Q: What is the external control voltage requirement for the HMV01.1E-W0120?
A: The external control voltage required for this device is 24 V DC.
